GE8031i05.05A905

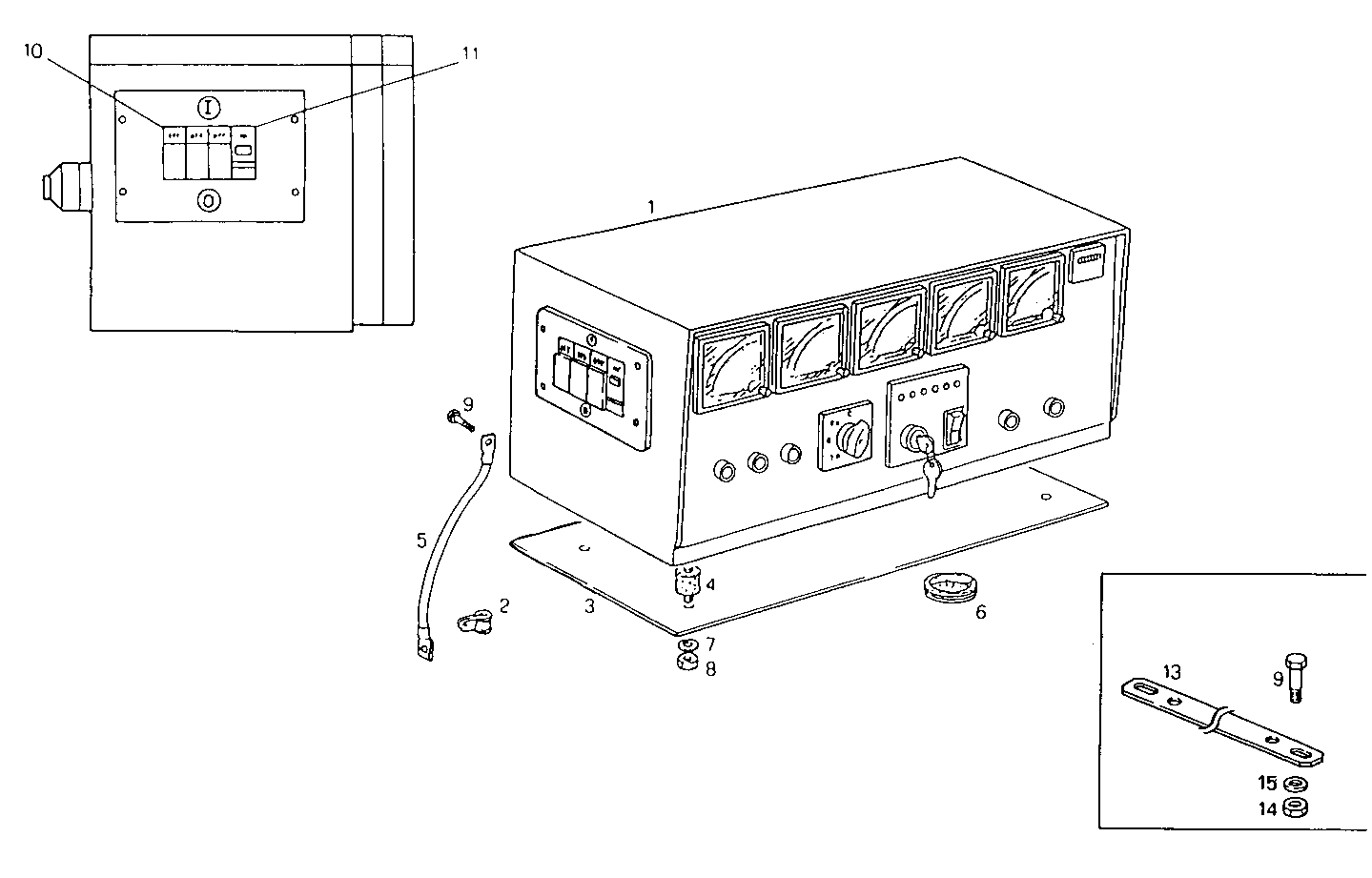

A60130060 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI [D 10-1995] [from10-1995]
Item | Part number | Description |
---|---|---|
1 | 8021468 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
2 | 17314990 | FASTENING BRACKET |
3 | 8019126 | COVER |
4 | 8018462 | RUBBER PAD |
5 | 8104707 | WIRE/CABLE |
6 | 8113214 | INSULATING RING |
7 | 11199274 | WASHER |
8 | 17037721 | NUT M5X0,8 |
9 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
10 | 8093329 | SWITCH 100A |
11 | 8093782 | MINIMUN TENSION COIL |
13 | 8015022 | SUPPORT |
14 | 17037821 | HEXAGON NUT M6X1 |
15 | 17088474 | WASHER Ø6X12 MM |
