GE8031i05.05A906

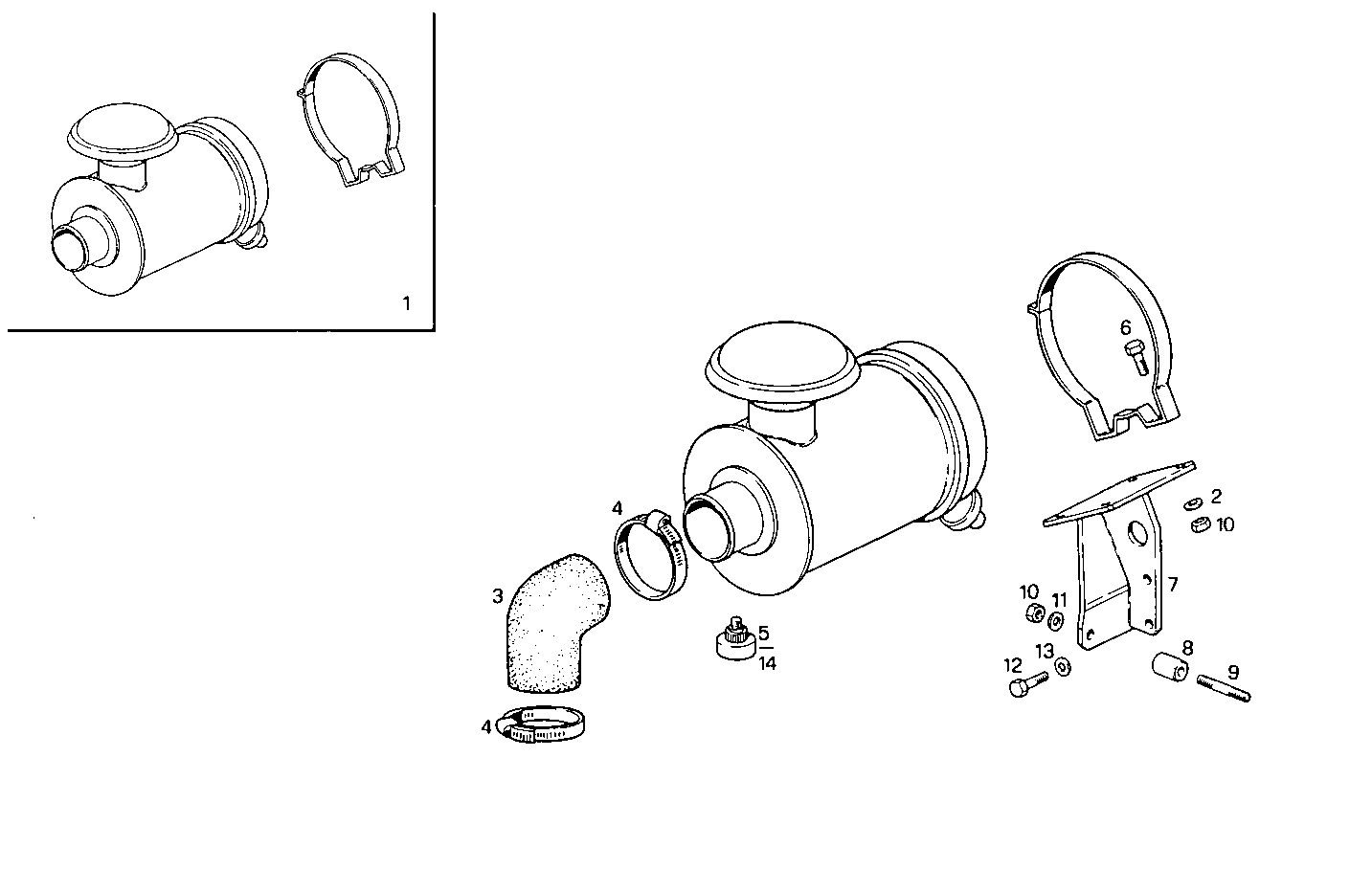

A21210003 DRY AIR CLEANER - with mechanical clogging gauge - genset

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8013300 AIR CLEANER ASSY
2 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
3 8102906 RUBBER SLEEVE
4 17765091 CLIP Ø60/80 MM
5 4936137 CHOCKED FILTER INDIC. MECHANICAL
6 16605524 HEXAGON BOLT M8X20 MM
7 8014393 SUPPORT
8 8104719 SPACING BAR
9 16729524 STUD M8X1,25X30
10 17037931 HEXAGON NUT M8X1,25
11 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
12 15004021 HEXAGON BOLT M10X1,25X25 MM
13 17090474 SPRING WASHER Ø10X27 MM SP=2,5
14 8022540 CHOCKED FILTER INDIC. MECHANICAL
