GE8031i05.05A906

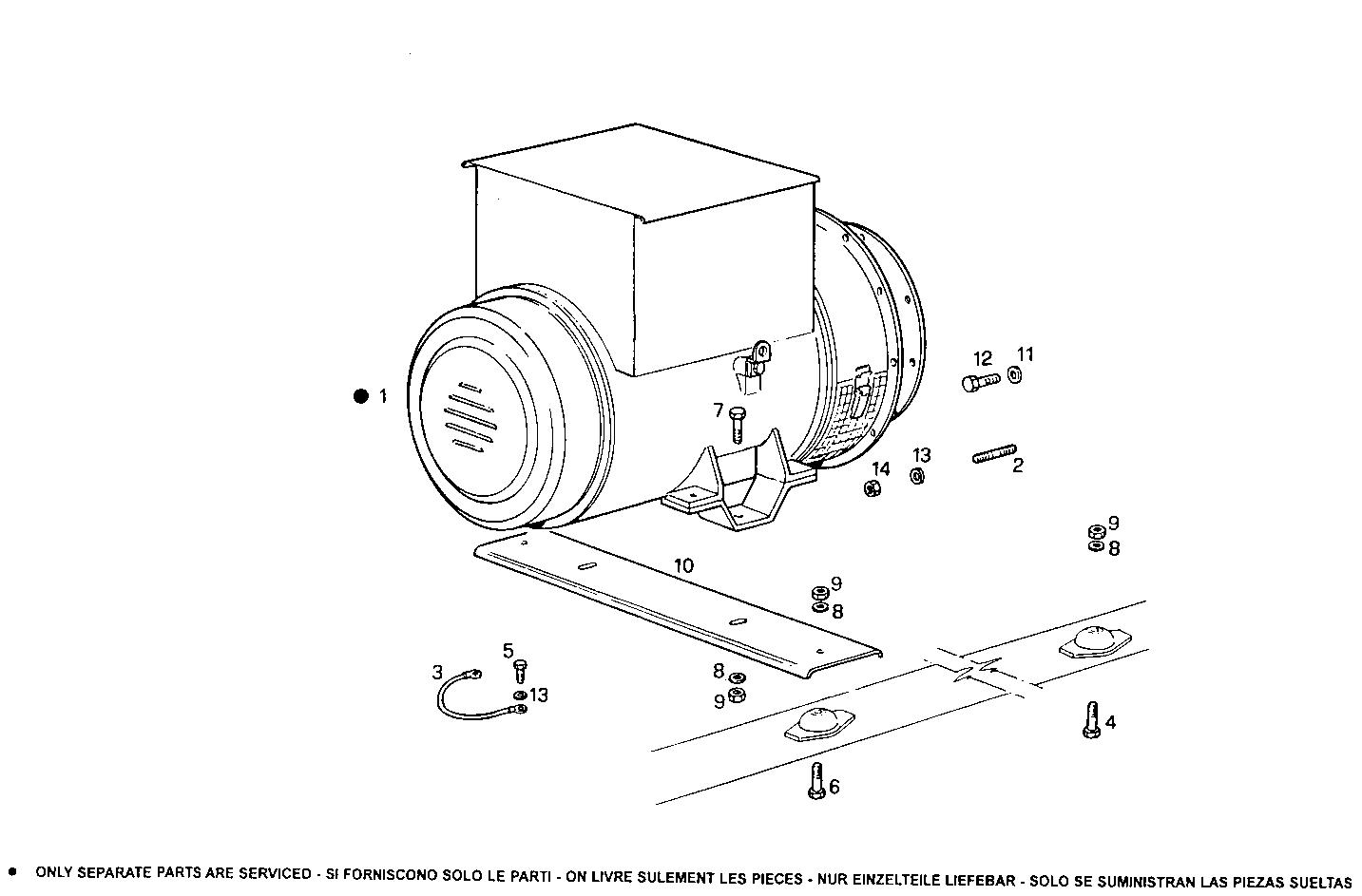

A37010040 SINGLE BEARING ELECTRIC MACHINE - STAMFORD
| Item | Part number | Description |
|---|---|---|
| 1 | 8015528 | ELECTRIC MACHINE BCI 184 E 16 50-60HZ |
| 2 | 13449421 | STUD |
| 3 | 8104358 | EARTH WIRE |
| 4 | 15541721 | HEXAGON BOLT M12X1,25X110 MM |
| 5 | 16043124 | SCREW M8X14 MM |
| 6 | 15541621 | HEXAGON BOLT M12X1,25X100 MM |
| 7 | 15540521 | SCREW M12X1,25X35 |
| 8 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 9 | 17038621 | NUT M12 |
| 10 | 8109282 | SUPPORT |
| 11 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 12 | 15970521 | HEXAGON BOLT M10X20 MM |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 17038221 | HEXAGON NUT M10 |
