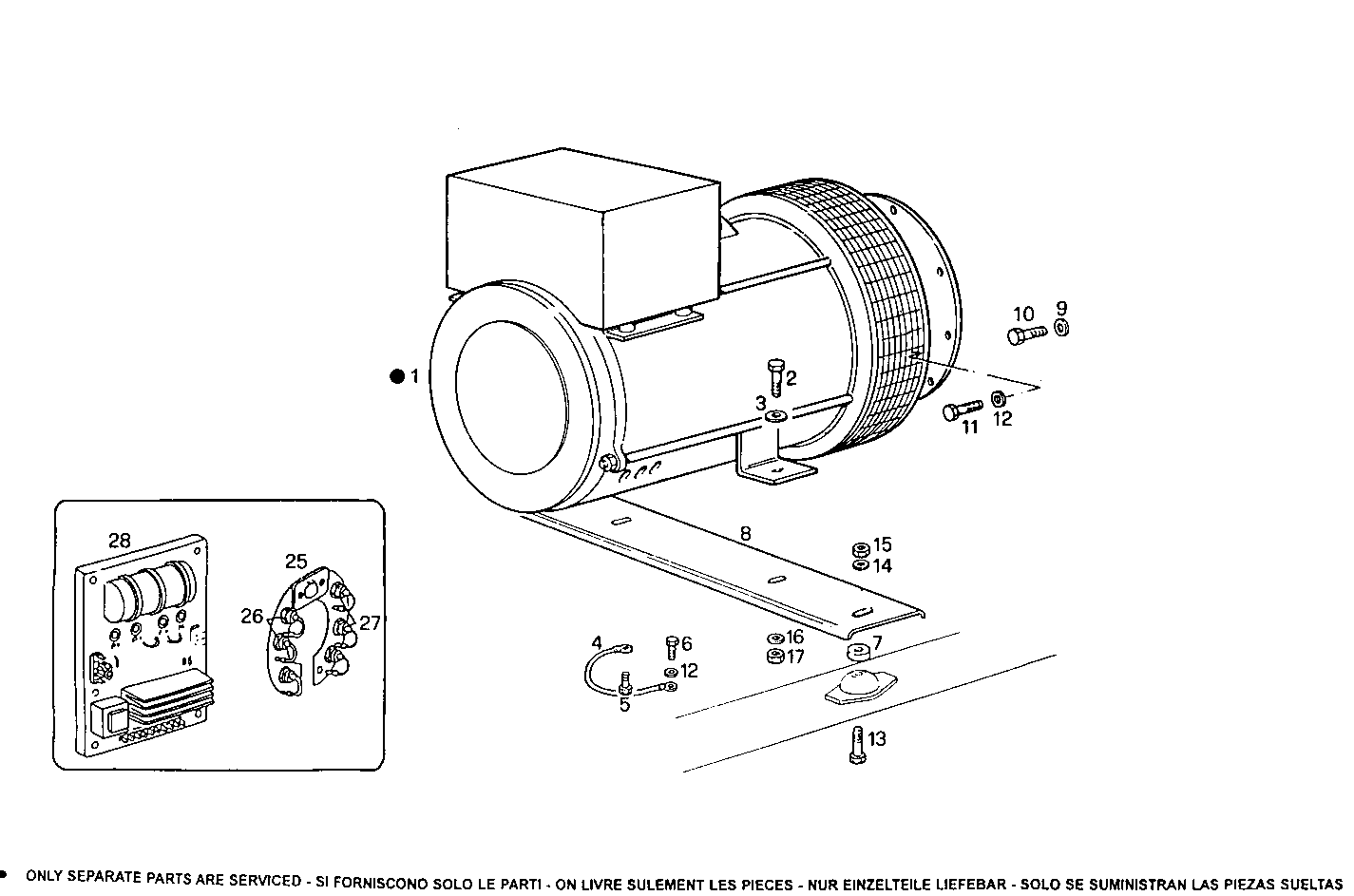

| Item |
Part number |
Description |
|
1 |
8110069 |
ELECTRIC MACHINE LSA 410 L4 60HZ |
|
2 |
16610124 |
HEXAGON BOLT M12X40 MM |
|
3 |
4929369 |
WASHER |
|
4 |
8104707 |
WIRE/CABLE |
|
5 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
6 |
16043124 |
SCREW M8X14 MM |
|
7 |
8015486 |
SPACING BAR |
|
8 |
8016047 |
SUPPORT |
|
9 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
10 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
11 |
11306921 |
SCREW M10X1,25X30 |
|
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
13 |
16614924 |
SCREW M16X55 |
|
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
15 |
17038921 |
NUT M16X2 |
|
16 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
|
17 |
17038421 |
HEXAGON NUT M12 (8) |
|
25 |
8091777 |
SUPPRESSOR |
|
26 |
8090758 |
DIODE - |
|
27 |
8090757 |
DIODE + |
|
28 |
8090756 |
EL.MACHINE VOLTAGE REGUL. |
