GE8031i06.05A905

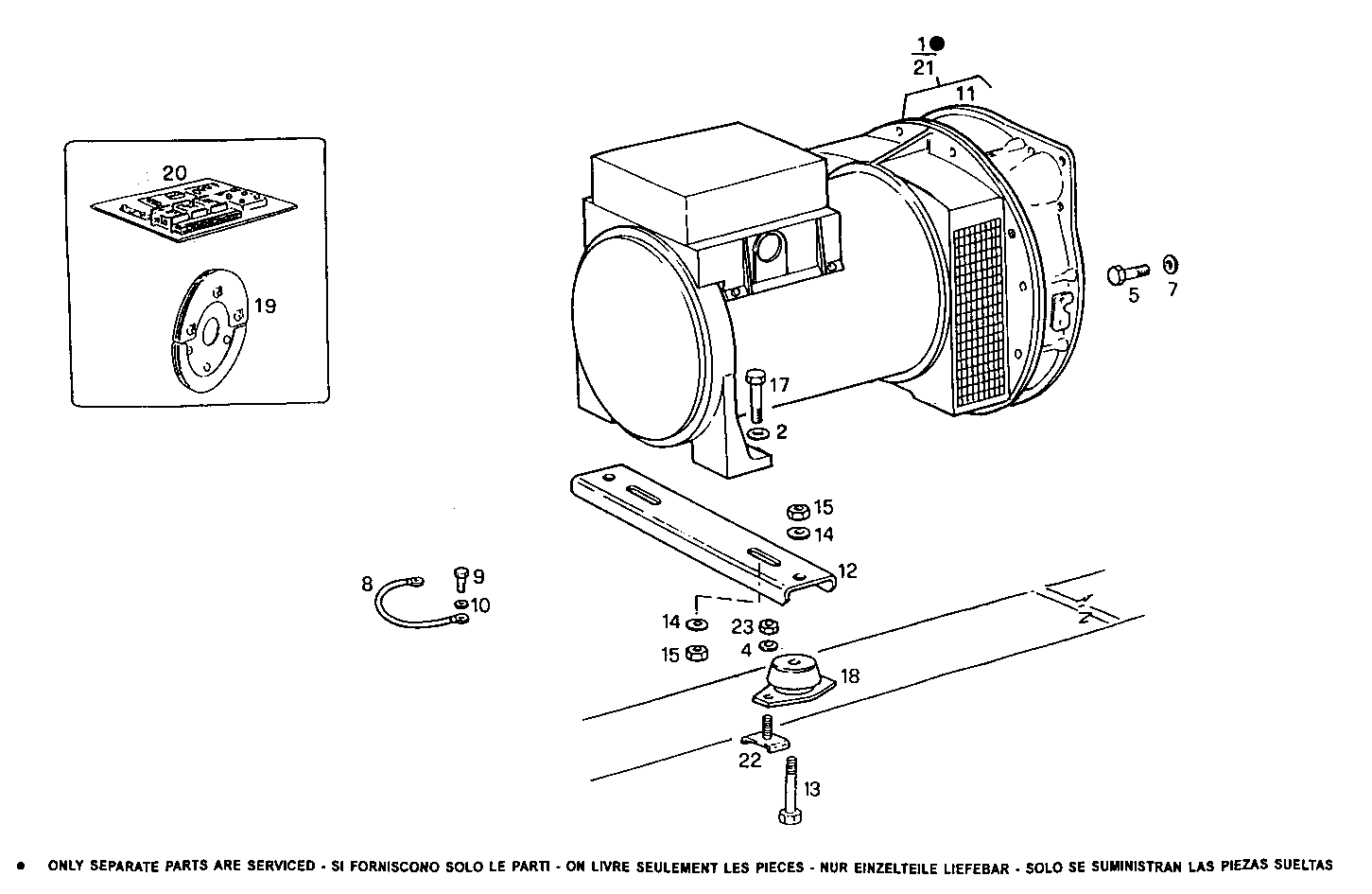

A37410047/01 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8025945 ELECTRIC MACHINE ECN 31 1S/4 50-60HZ [up to 03-99]
2 4929369 WASHER
4 17090174 SPRING WASHER Ø10X20 MM
5 15970521 HEXAGON BOLT M10X20 MM
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8104707 WIRE/CABLE
9 16605424 SCREW M8X16 MM (8.8)
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 8025397 COUPLING BELL
12 8016047 SUPPORT
13 16614524 HEXAGON BOLT M16X35 MM
14 17092374 SPRING WASHER Ø16X34X3,6 MM
15 17038921 NUT M16X2
17 16614924 SCREW M16X55
18 8016784 RUBBER PAD
19 8091775 EL.MACHINE DIODE ASSY
20 8091776 EL.MACHINE VOLTAGE REGUL. MECC-ALTE
21 8027355 ELECTRIC MACHINE ECO 32 15 50-60HZ [from 03-99]
22 8016024 SCREW
23 17038121 HEXAGON NUT M10
