GE8031i06.05A955

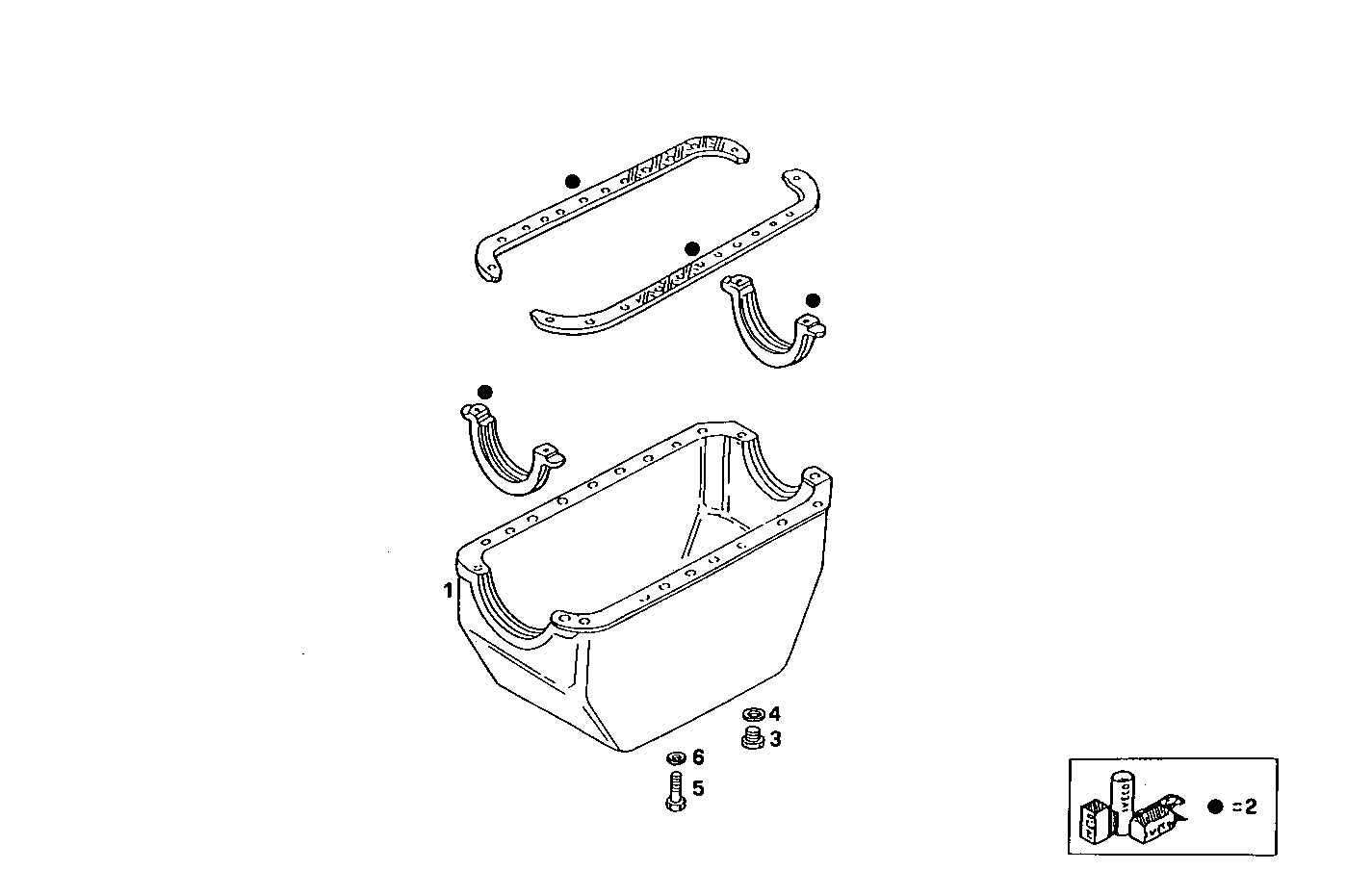

0420.147 OIL SUMP [D 06-1999] [from06-1999]
| Item | Part number | Description |
|---|---|---|
| 1 | 500376485 | OIL SUMP ASSY |
| 2 | 8093451 | KIT-OILSUMP GASKET |
| 3 | 4847102 | THREADED PLUG |
| 4 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 5 | 10923024 | HEXAGON BOLT M10X1,25X20 MM |
| 6 | 17095014 | WASHER Ø10X18 MM |
