GE8031i06.05A955

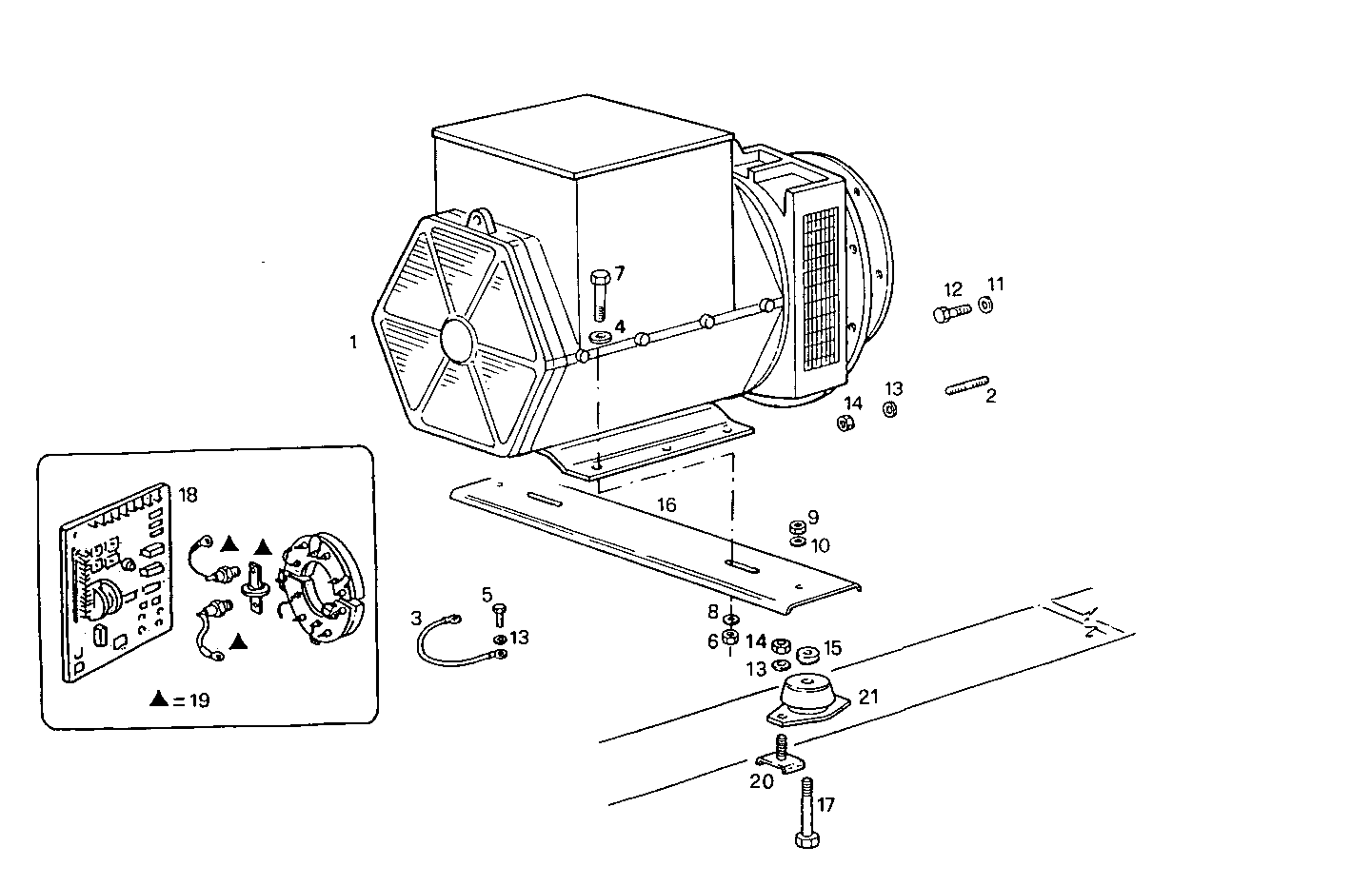

A37010067 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8025939 ELECTRIC MACHINE BCI 184 G16 50-60HZ
2 16731224 STUD M10X25 MM
3 8104707 WIRE/CABLE
4 4929369 WASHER
5 16043124 SCREW M8X14 MM
6 17038421 HEXAGON NUT M12 (8)
7 16610124 HEXAGON BOLT M12X40 MM
8 17091374 SPRING WASHER Ø12X30X3,0 MM
9 17038921 NUT M16X2
10 17092374 SPRING WASHER Ø16X34X3,6 MM
11 17494934 WASHER Ø10X18,1X2,2 MM
12 15970521 HEXAGON BOLT M10X20 MM
13 17090174 SPRING WASHER Ø10X20 MM
14 17038121 HEXAGON NUT M10
15 8015486 SPACING BAR
16 8016047 SUPPORT
17 16614924 SCREW M16X55
18 8106757 EL.MACHINE VOLTAGE REGUL. Stamford
19 8092769 KIT-GENERATOR Stamford
20 8016024 SCREW
21 8016784 RUBBER PAD
