GE8031i06.05A955
A37210092/01 SINGLE BEARING ELECTRIC MACHINE - MARELLI [D 04-1999] [from04-1999]

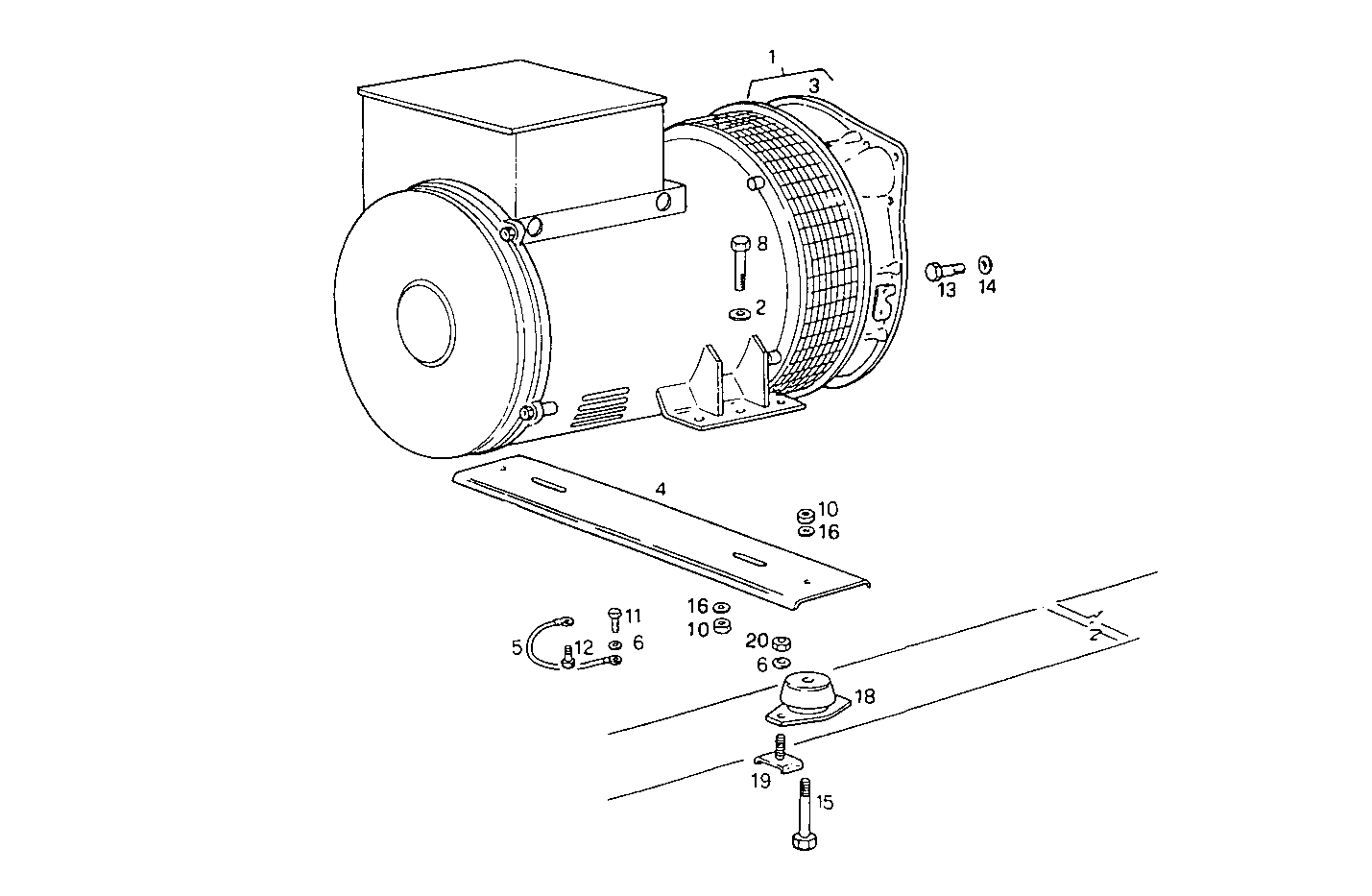

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8028272 ELECTRIC MACHINE M8B 200 SA/4 50-60HZ
2 4929369 WASHER
3 8026952 COUPLING BELL
4 8016047 SUPPORT
5 8104707 WIRE/CABLE
6 17090174 SPRING WASHER Ø10X20 MM
8 16614924 SCREW M16X55
10 17038921 NUT M16X2
11 16043124 SCREW M8X14 MM
12 16603724 HEXAGON BOLT M6X20 MM (8.8)
13 15970521 HEXAGON BOLT M10X20 MM
14 17494934 WASHER Ø10X18,1X2,2 MM
15 16614524 HEXAGON BOLT M16X35 MM
16 17092374 SPRING WASHER Ø16X34X3,6 MM
18 8016784 RUBBER PAD
19 8016024 SCREW
20 17038121 HEXAGON NUT M10
