GE8031i06.05R920

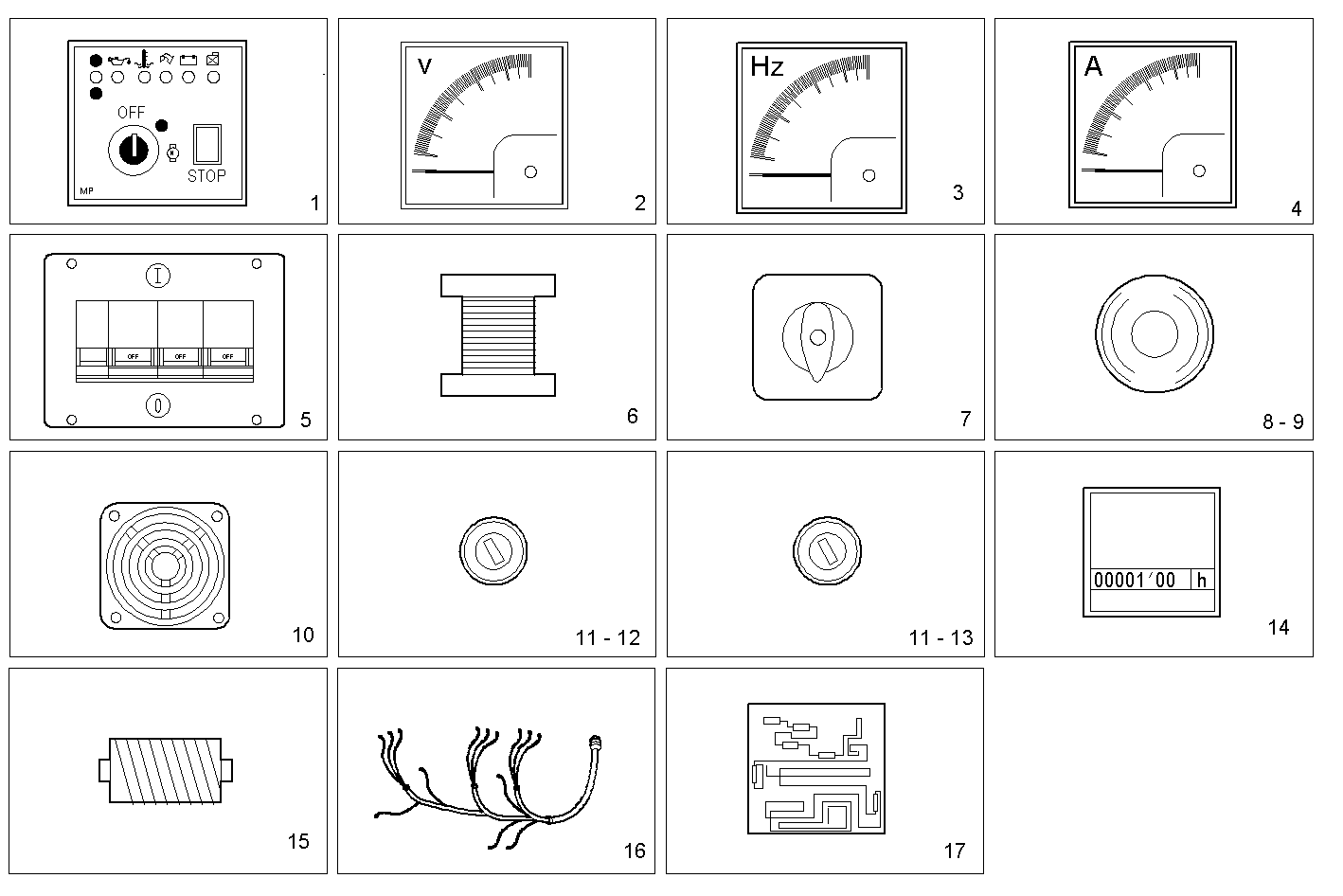

Q0000052 MANUAL CONTROL BOARD FOR ELECT. MACHINE - (components)
| Item |
Part number |
Description |
|
1 |
8094639 |
ELECTRONIC CARD |
|
2 |
8094652 |
VOLTMETER |
|
3 |
8094637 |
FREQUENCYMETER |
|
4 |
8094642 |
AMMETER |
|
5 |
8094633 |
THERMOSWITCH |
|
6 |
8093322 |
MINIMUN TENSION COIL |
|
7 |
8094646 |
SWITCH |
|
8 |
8094644 |
PUSH BUTTON |
|
9 |
8094660 |
SPRING CONTACT |
|
10 |
8094601 |
ACOUSTIC HORN |
|
11 |
8094598 |
FUSE BOX |
|
12 |
8094599 |
FUSE 2A |
|
13 |
8094636 |
FUSE 20A |
|
14 |
8094648 |
HOURMETER |
|
15 |
8094649 |
AMMETER TRANSFORMATOR |
|
16 |
8094688 |
ENGINE HARNESS |
|
17 |
8094673 |
ELECTRONIC CARD OPT. |
