GE8031i06.05R921

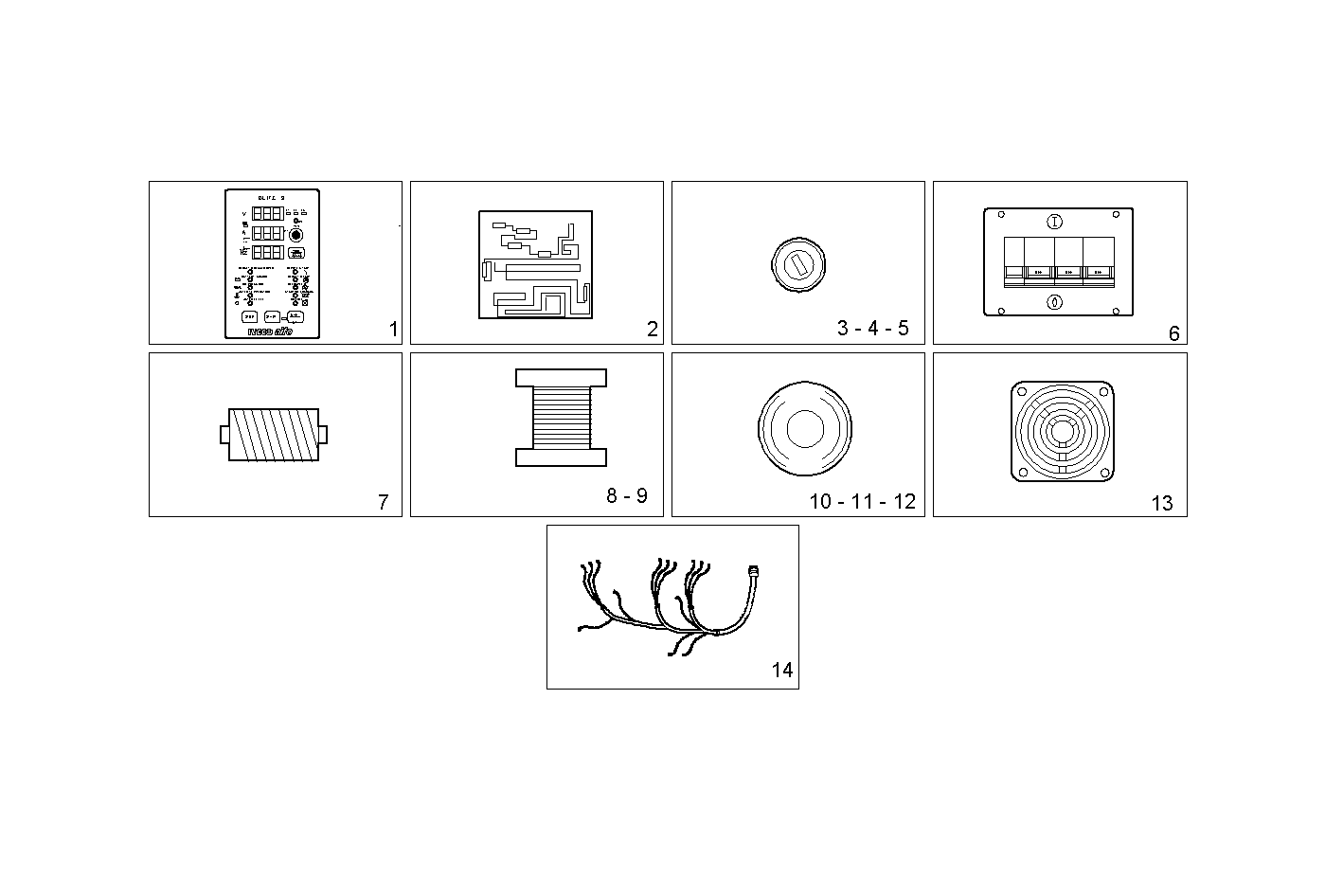

Q0000115 DIGITAL PANEL 12/24V - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8093802 | ELECTRONIC CARD |
| 2 | 8093794 | ELECTRONIC CARD |
| 3 | 8094598 | FUSE BOX |
| 4 | 8094599 | FUSE 2A |
| 5 | 8094621 | FUSE 15A |
| 6 | 8094632 | THERMOSWITCH |
| 7 | 8094604 | MINIMUN TENSION COIL |
| 8 | 8094654 | AMMETER TRANSFORMATOR |
| 9 | 8094671 | SPRING CONTACT |
| 10 | 8094664 | PUSH BUTTON |
| 11 | 8094663 | SPRING CONTACT |
| 12 | 8094662 | SPRING CONTACT |
| 13 | 8094601 | ACOUSTIC HORN |
| 14 | 8094688 | ENGINE HARNESS |
