GE8035E15.00N901

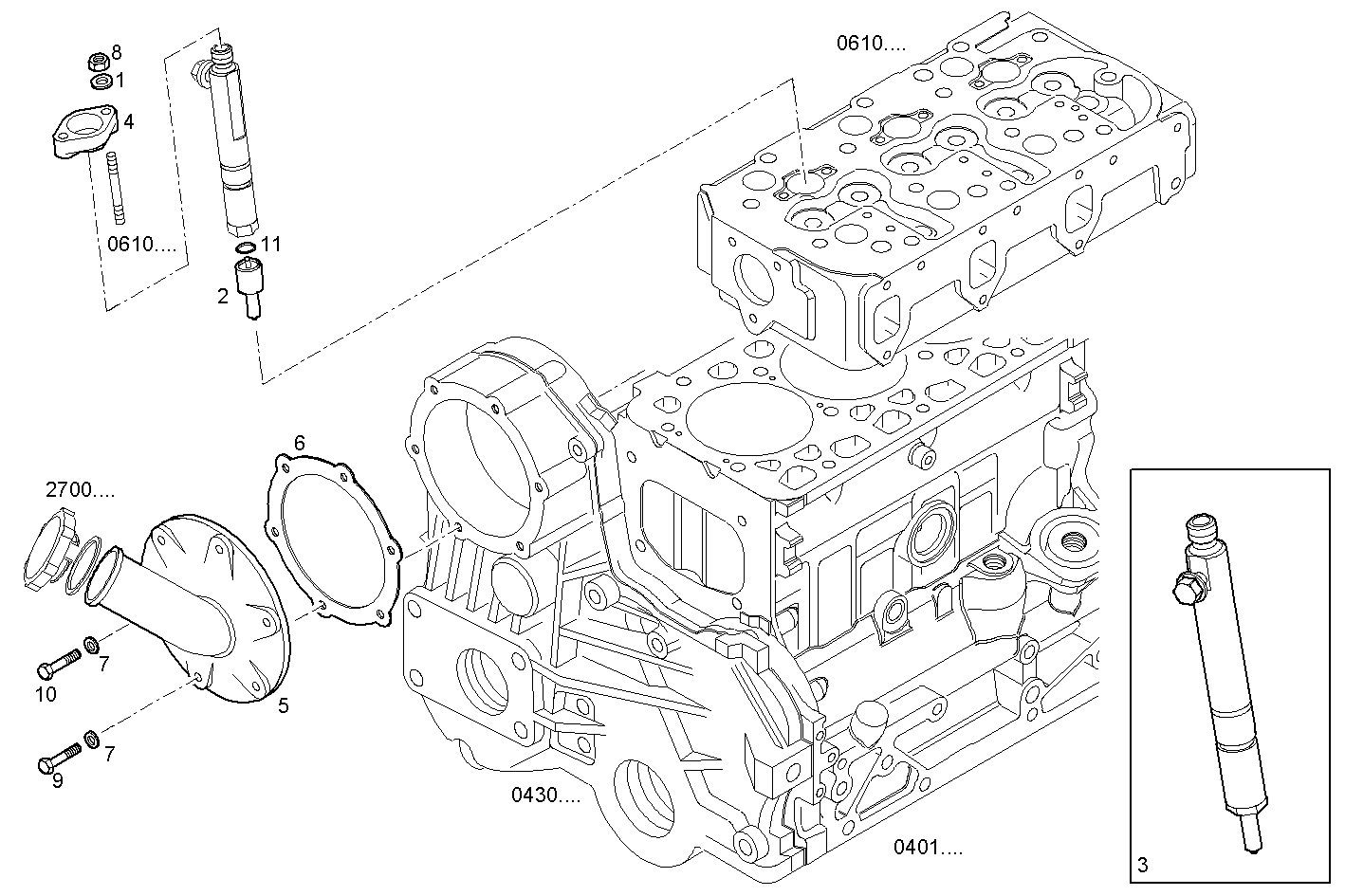

1400.031/01 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 771326 | WASHER Ø11,5 MM |
| 2 | 8097610 | FUEL NOZZLE |
| 3 | 504054021 | NOZZLE ASSY |
| 4 | 4780612 | FASTENING BRACKET |
| 5 | 4782886 | COVER |
| 6 | 98400781 | FLAT ENGINE GASKET |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 17037921 | HEXAGON NUT M8X1,25 |
| 9 | 16606324 | HEXAGON BOLT M8X60 MM |
| 10 | 16605625 | HEXAGON BOLT M8X25 |
| 11 | 17278589 | O-RING Ø18,77 MM SP=1,78 MM |
