GE8035E15.00N901

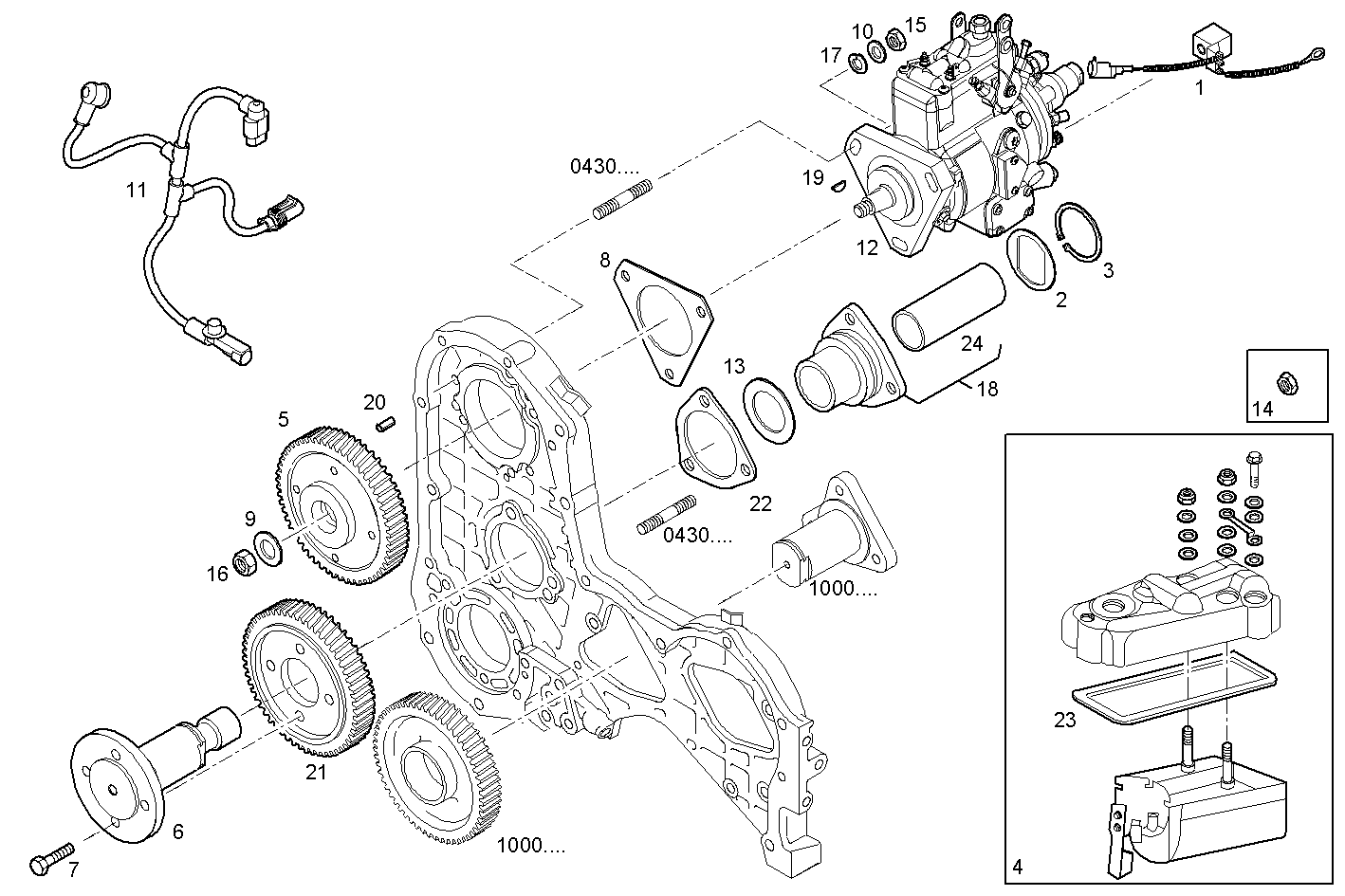

1400.031/02 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8045769 | ELECTROVALVE CSA 12v |
| 2 | 4667452 | SUPPORT RING |
| 3 | 4769420 | CIRCLIP |
| 4 | 8094900 | SOLENOID ETR 12v |
| 5 | 504293894 | INJ.PUMP DRIV.GEA |
| 6 | 4784054 | INJECT.PUMP SPIND REAR |
| 7 | 4798845 | SCREW |
| 8 | 4851923 | FLAT ENGINE GASKET |
| 9 | 11194179 | SPRING WASHER Ø15 MM |
| 10 | 12647124 | WASHER Ø8X20 MM |
| 11 | 504273552 | WIRE/CABLE |
| 12 | 504273429 | DISTRIB.INJ.PUMP ASSY |
| 13 | 98465565 | SUPPORT RING |
| 14 | 17037725 | NUT |
| 15 | 17037921 | HEXAGON NUT M8X1,25 |
| 16 | 12164021 | HEXAGON NUT M14X1,5 |
| 17 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 18 | 98465563 | SUPPORT ASSY |
| 19 | 17221020 | KEY M12X110 MM |
| 20 | 17260570 | DOWEL PIN |
| 21 | 98445955 | GEAR |
| 22 | 98400787 | FLAT ENGINE GASKET |
| 23 | 8097652 | FLAT ENGINE GASKET |
| 24 | 4769418 | BUSH |
