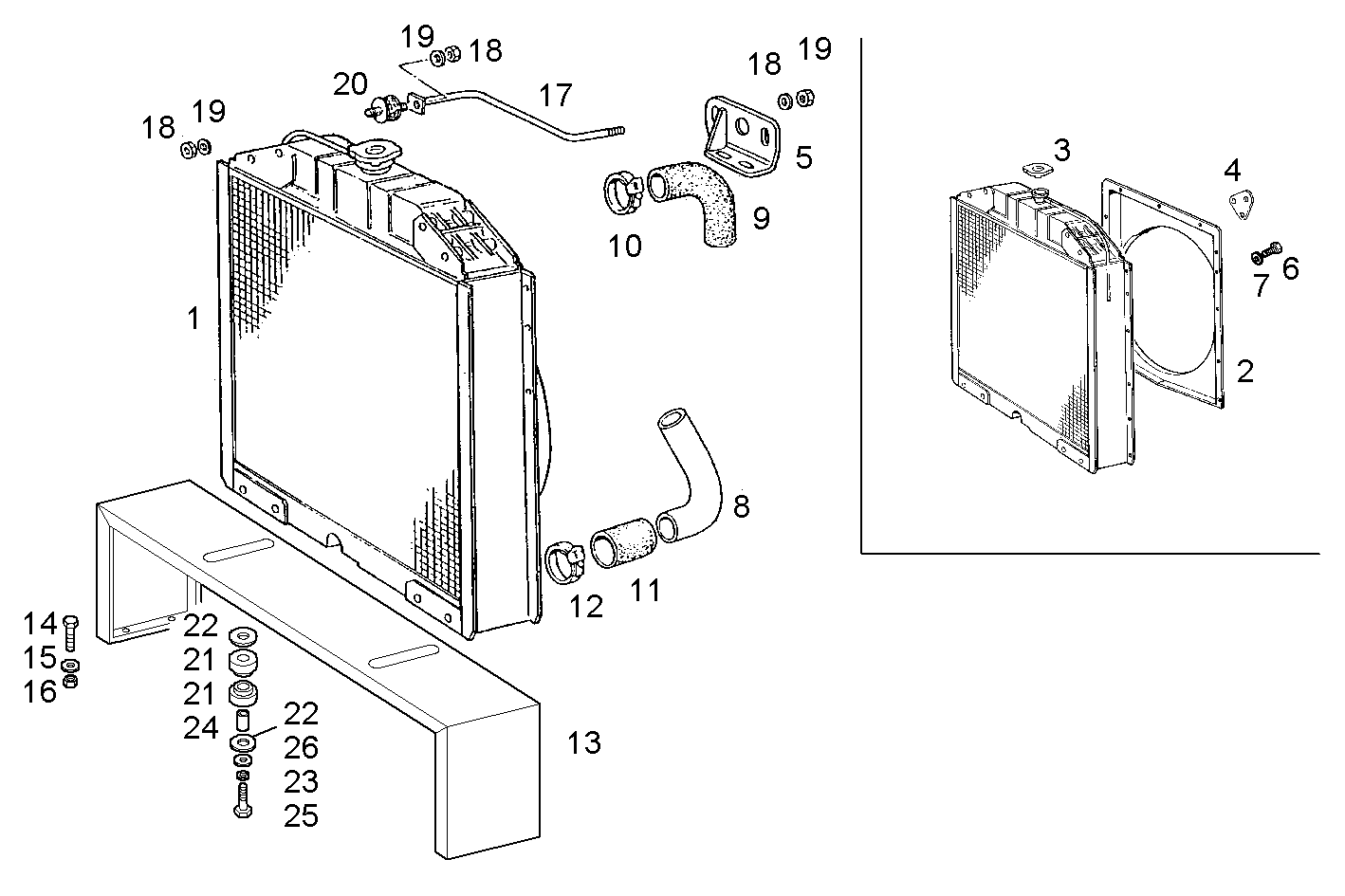

| Item |
Part number |
Description |
|
1 |
8032099 |
WATER RADIATOR ASSY |
|
2 |
8104344 |
AIR HOOD |
|
3 |
4935488 |
RADIATOR PLUG |
|
4 |
8023980 |
PLATE |
|
5 |
8023950 |
SUPPORT |
|
6 |
10902124 |
SCREW M6X14 MM |
|
7 |
17088471 |
SPRING WASHER Ø6X12 MM SP=1,2 MM |
|
8 |
8077105 |
WATER PIPE |
|
9 |
8026743 |
RUBBER SLEEVE |
|
10 |
17764892 |
PIPE CLIP Ø40-60 MM |
|
11 |
8570621 |
WATER HOSE |
|
12 |
17764791 |
CLIP Ø32/50 MM |
|
13 |
8031244 |
SUPPORT |
|
14 |
10902633 |
HEXAGON BOLT M6X1X25 MM |
|
15 |
17088474 |
WASHER Ø6X12 MM |
|
16 |
17037821 |
HEXAGON NUT M6X1 |
|
17 |
8023991 |
TIE ROD |
|
18 |
17037931 |
HEXAGON NUT M8X1,25 |
|
19 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
20 |
4927883 |
RUBBER PAD |
|
21 |
741569 |
RUBBER LUG |
|
22 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
23 |
17096050 |
WASHER Ø20X37 MM |
|
24 |
8108634 |
SPACING BAR |
|
25 |
15888824 |
HEXAGON BOLT M10X1,25X70 MM |
|
26 |
17090174 |
SPRING WASHER Ø10X20 MM |
