GE8035E15.00N901

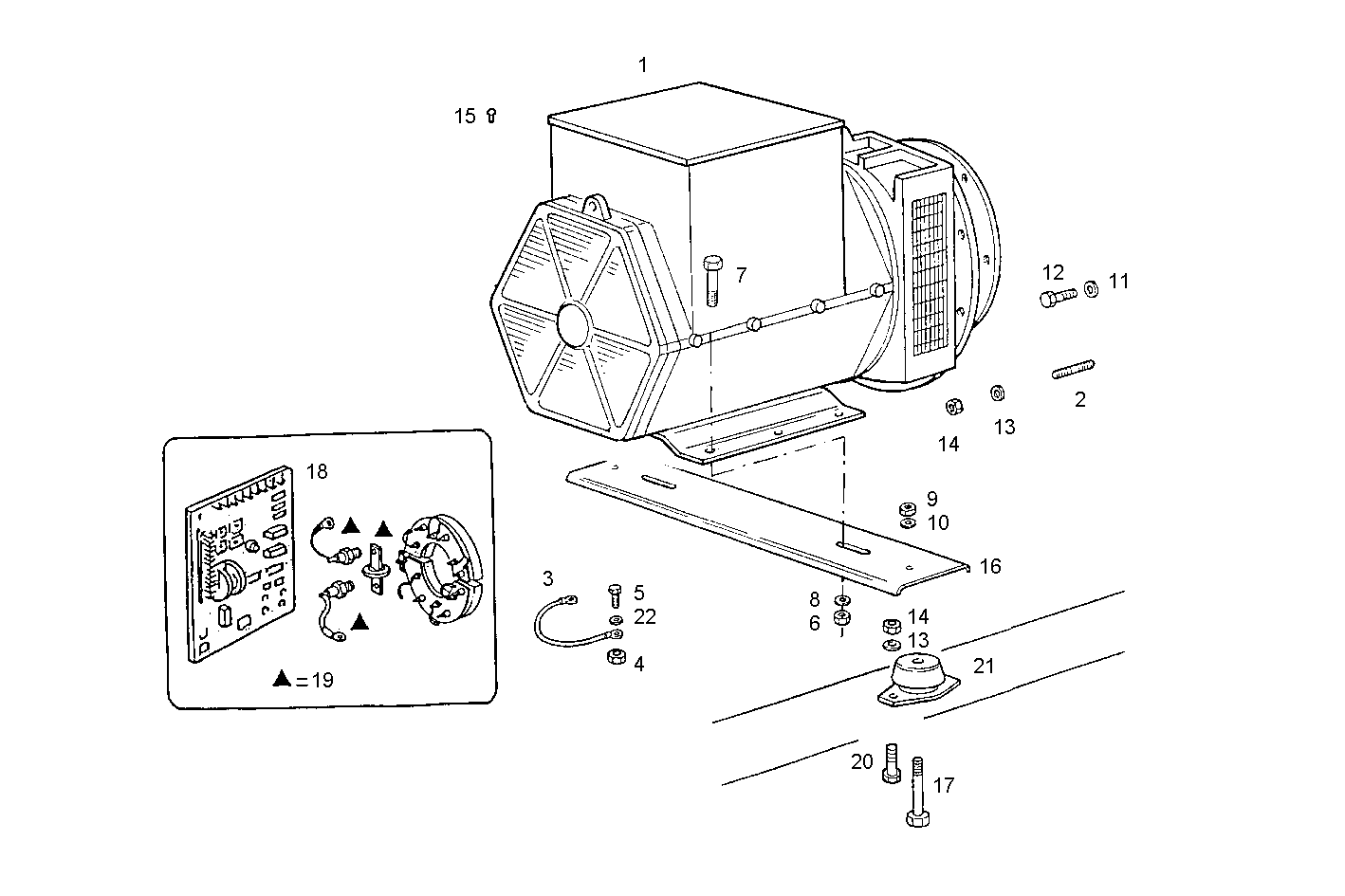

A37010078 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8025939 ELECTRIC MACHINE BCI 184 G16 50-60HZ
2 16607924 HEXAGON BOLT M10X1,5X40 MM
3 8104707 WIRE/CABLE
4 17037925 HEXAGON NUT M8X1,25
5 16605424 SCREW M8X16 MM (8.8)
6 17038421 HEXAGON NUT M12 (8)
7 16610124 HEXAGON BOLT M12X40 MM
8 17091374 SPRING WASHER Ø12X30X3,0 MM
9 17038931 HEXAGON NUT M16X2
10 17092374 SPRING WASHER Ø16X34X3,6 MM
11 17494934 WASHER Ø10X18,1X2,2 MM
12 15970524 HEXAGON BOLT M10X1,25X20
13 17090174 SPRING WASHER Ø10X20 MM
14 17038131 HEXAGON NUT M10
15 17098590 RIVET
16 8030047 TIE
17 16614524 HEXAGON BOLT M16X35 MM
18 8106757 EL.MACHINE VOLTAGE REGUL. Stamford
19 8092769 KIT-GENERATOR Stamford
20 16606724 HEXAGON BOLT M8X90 MM
21 8016784 RUBBER PAD
22 17089574 WASHER Ø8X16 MM
