GE8035E15.00N901

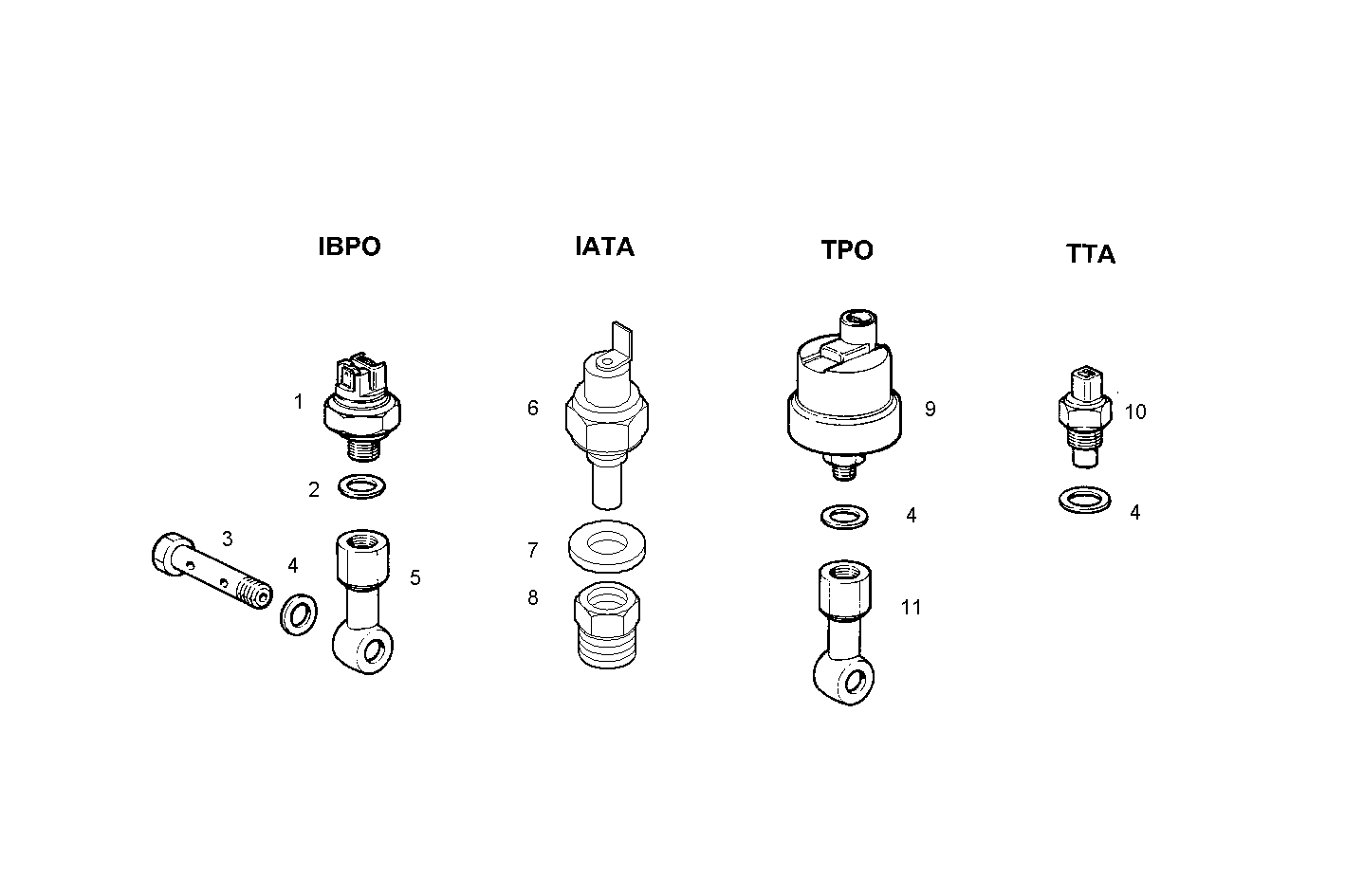

A38550091 SENDER UNITS FOR INSTRUMENTS - 12/24V

Iveco/FPT SENDER UNITS FOR INSTRUMENTS - 12/24V

Item Part number Description
1 8114030 TRANSMITTER IBPO
2 4858607 WASHER Ø12X17 MM SP=1,5 MM
3 38800427 SCREW CONNECTOR
4 10284460 SEAL GASKET Ø10X16 MM
5 8111331 PIPE SOCKET
6 8019581 TRANSMITTER IATA
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 4931480 PIPE SOCKET
9 8100563 TRANSMITTER TPO
10 4448131 TEMP. TRANSMITTER TTA
11 4927546 PIPE SOCKET
