GE8035E15.00R901

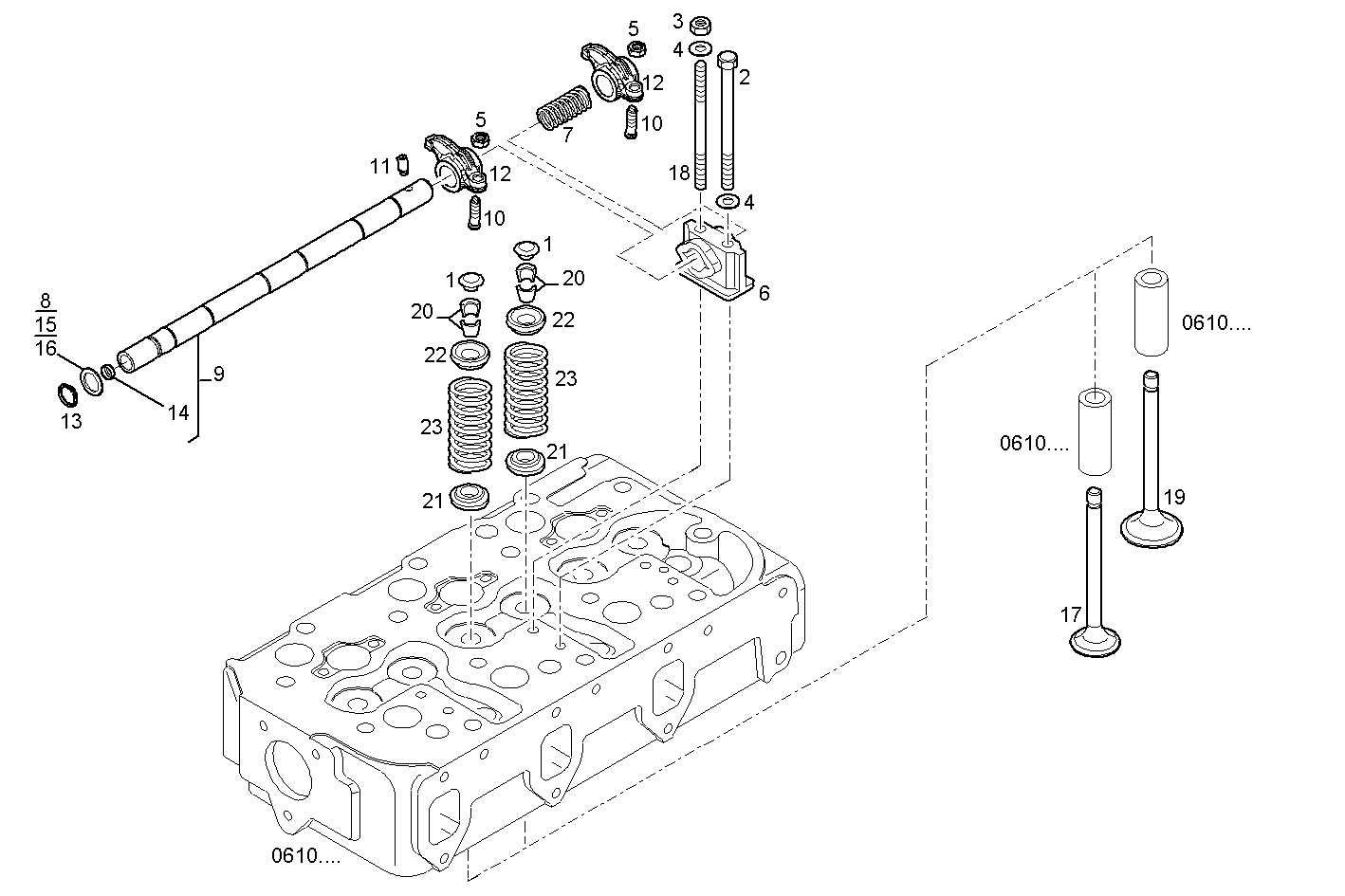

0610.026/02 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
4838680 |
VALVE CAP |
|
2 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
3 |
17037925 |
HEXAGON NUT M8X1,25 |
|
4 |
17094914 |
WASHER 8x16 |
|
5 |
4338920 |
ADJUSTING NUT |
|
6 |
4601295 |
ROCKER BRACKET |
|
7 |
4601296 |
ROCKER ARM SPRING |
|
8 |
4639661 |
SUPPORT RING SP=1 MM |
|
9 |
4682990 |
ROCKER SHAFT ASSY |
|
10 |
4699783 |
ROCKER ARM SCREW |
|
11 |
4846851 |
SPIGOT SCREW |
|
12 |
4848973 |
ROCKER ARM ASSY |
|
13 |
11066676 |
CIRCLIP Ø18 MM |
|
14 |
16987801 |
LOCK PLUG Ø12 MM |
|
15 |
4570798 |
SUPPORT RING SP=0,7 MM |
|
16 |
4570799 |
SUPPORT RING SP=0,5 MM |
|
17 |
1908410 |
EXHAUST VALVE |
|
18 |
98458149 |
STUD [from 608189] |
|
19 |
1908408 |
INLET VALVE |
|
20 |
4819891 |
VALVE CONE |
|
21 |
4817424 |
SPRING CAP BOTTOM |
|
22 |
4780558 |
SPRING CAP TOP |
|
23 |
4812347 |
ENGINE VALV.SPRING |
