Catalogue Menu
GE8035M06.00A60S

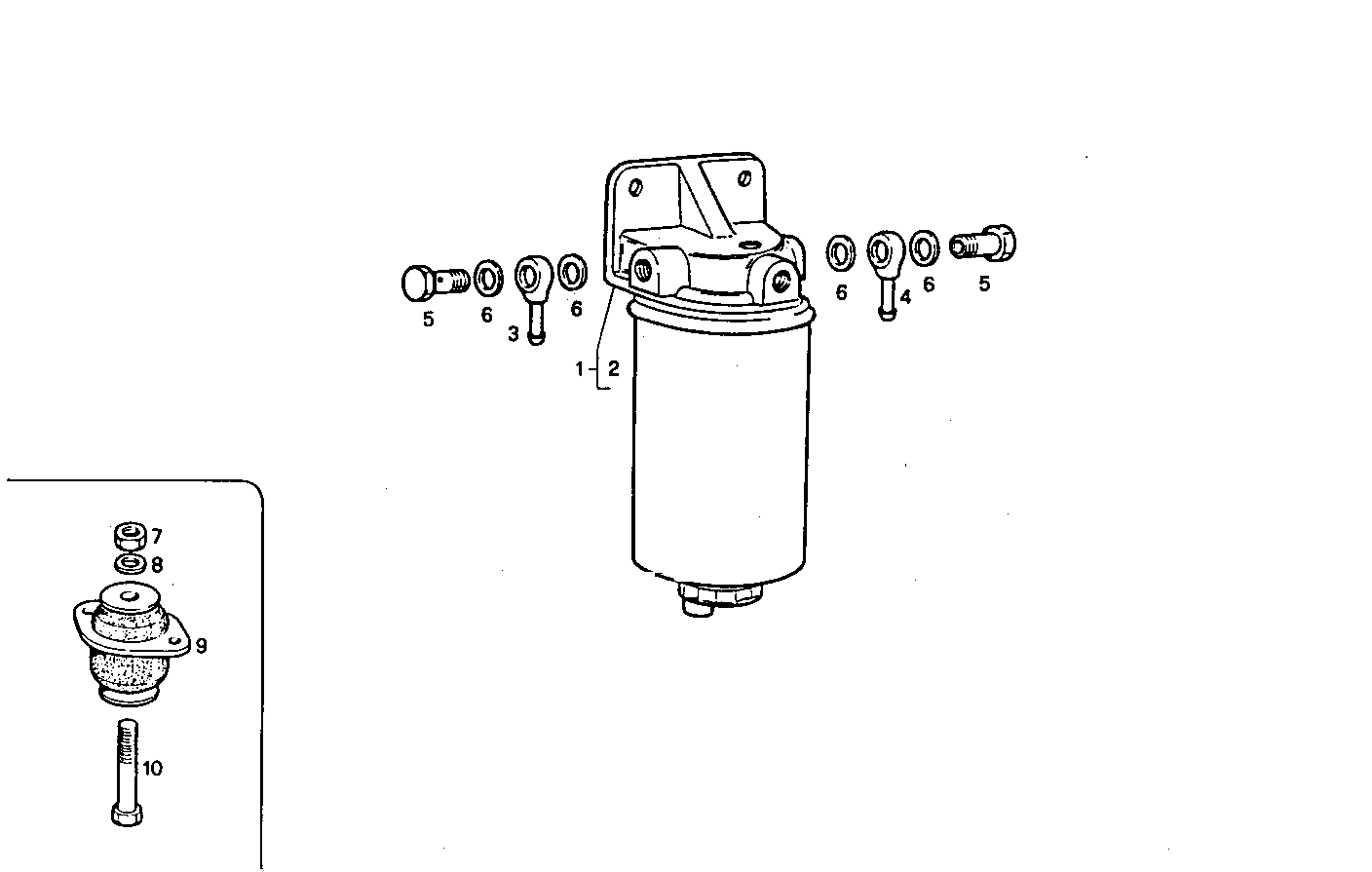

8600.006 ACCESSORIES
Item | Part number | Description |
---|---|---|
1 | 8107486 | PRECLEANER ASSY |
2 | 1908547 | FUEL FILTER ELEM. |
3 | 4864069 | PIPE SOCKET |
4 | 4864071 | PIPE SOCKET |
5 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
7 | 17038621 | NUT M12 |
8 | 17091074 | WASHER Ø12X24X2,8 MM |
9 | 4576957 | CAB SUPPORT ALTERNATIVE USE |
10 | 15541721 | HEXAGON BOLT M12X1,25X110 MM |
