GE8035M06.01A61S

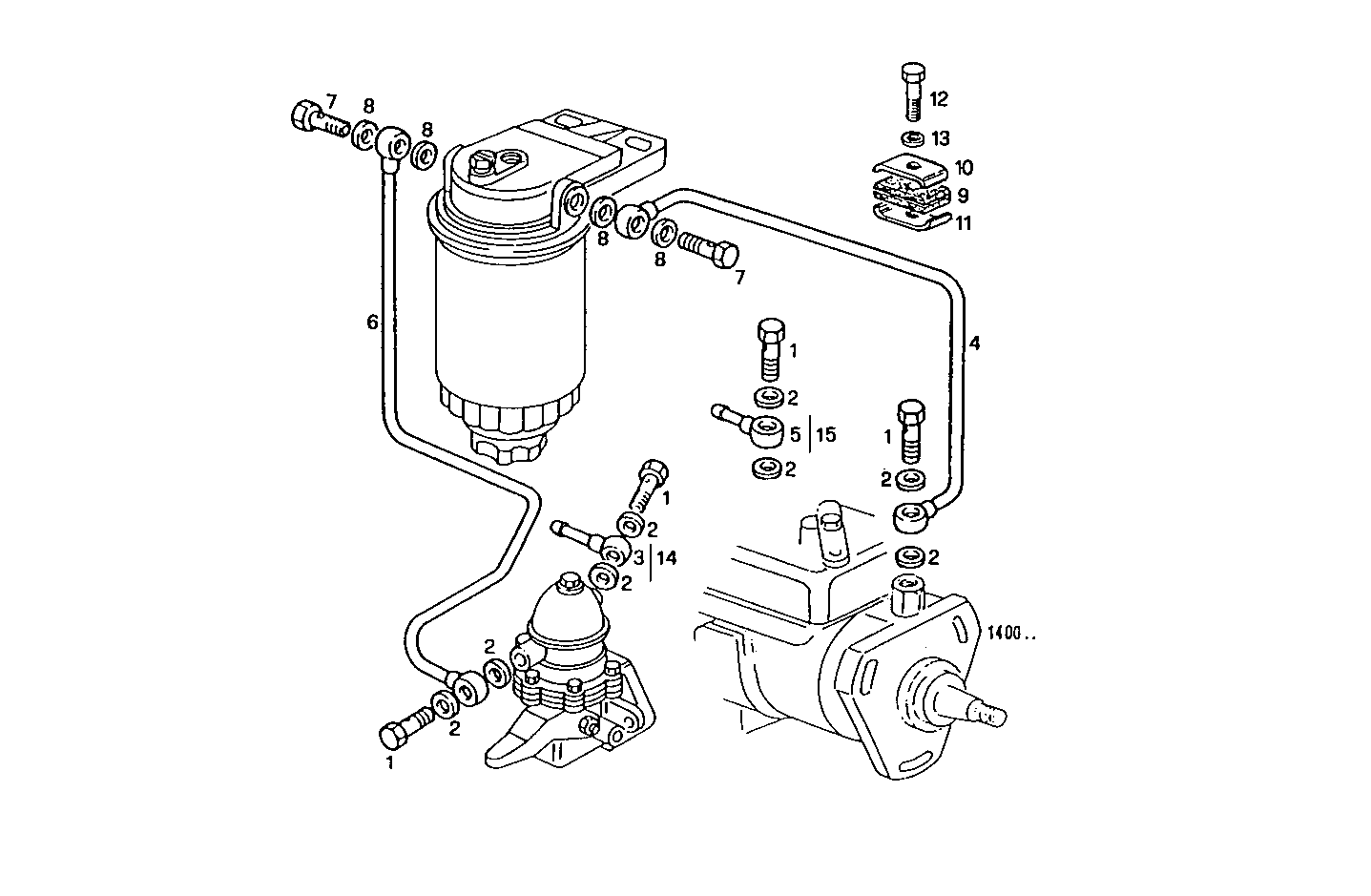

2030.133 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 4864082 | BANJO BOLT M12X1,5X25 MM |
2 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
3 | 98417520 | PIPE SOCKET |
4 | 500339907 | FUEL LINE |
5 | 98416591 | SWIVEL COUPLING |
6 | 500339910 | FUEL LINE |
7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
8 | 98474308 | SEAL GASKET Ø14X22 MM |
9 | 4659217 | DOWEL |
10 | 4659218 | CLIP |
11 | 4659219 | PLATE |
12 | 16602324 | HEXAGON BOLT M5X25 MM |
13 | 17798474 | SPRING WASHER Ø12 MM |
14 | 8034077 | PIPE SOCKET [from 21-05-03] |
15 | 8029418 | PIPE SOCKET [from 01-09-02] |
