GE8041i05.55A905

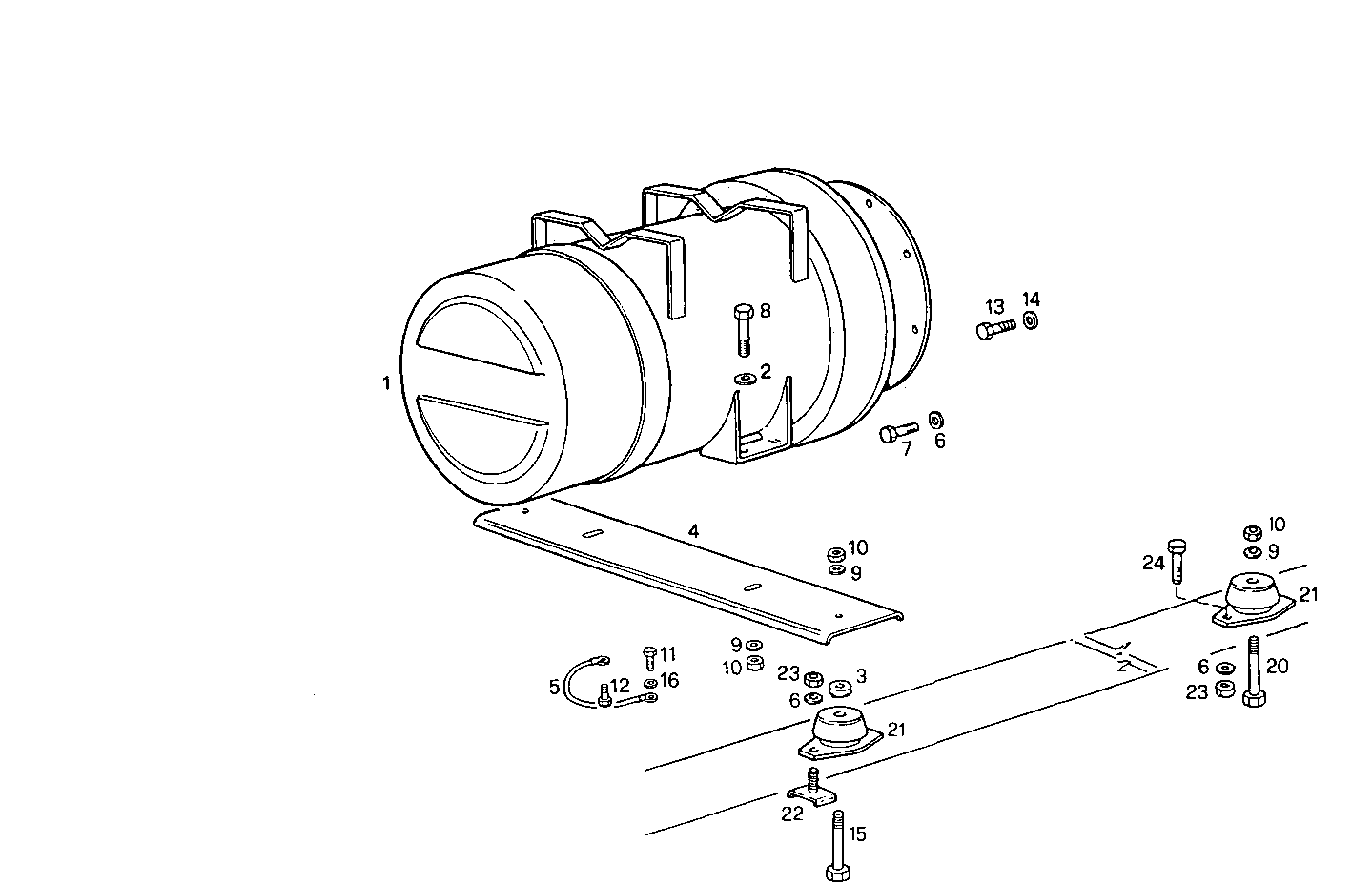

A37210057 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8025252 ELECTRIC MACHINE M8B 200 SB/4 50-60HZ
2 4929369 WASHER
3 8016064 SPACING BAR
4 8016047 SUPPORT
5 8110852 EARTH WIRE
6 17090174 SPRING WASHER Ø10X20 MM
7 15970921 HEXAGON BOLT M10X1,25X35 MM
8 16614724 SCREW M16X45
9 17092374 SPRING WASHER Ø16X34X3,6 MM
10 17038921 NUT M16X2
11 16043124 SCREW M8X14 MM
12 16603724 HEXAGON BOLT M6X20 MM (8.8)
13 15970521 HEXAGON BOLT M10X20 MM
14 17494934 WASHER Ø10X18,1X2,2 MM
15 16615024 SCREW M16
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 16614624 HEXAGON BOLT M16X40 MM
21 4955094 RUBBER PAD
22 8015168 SCREW
23 17037821 HEXAGON NUT M6X1
24 16606524 HEXAGON BOLT M8X70 MM
