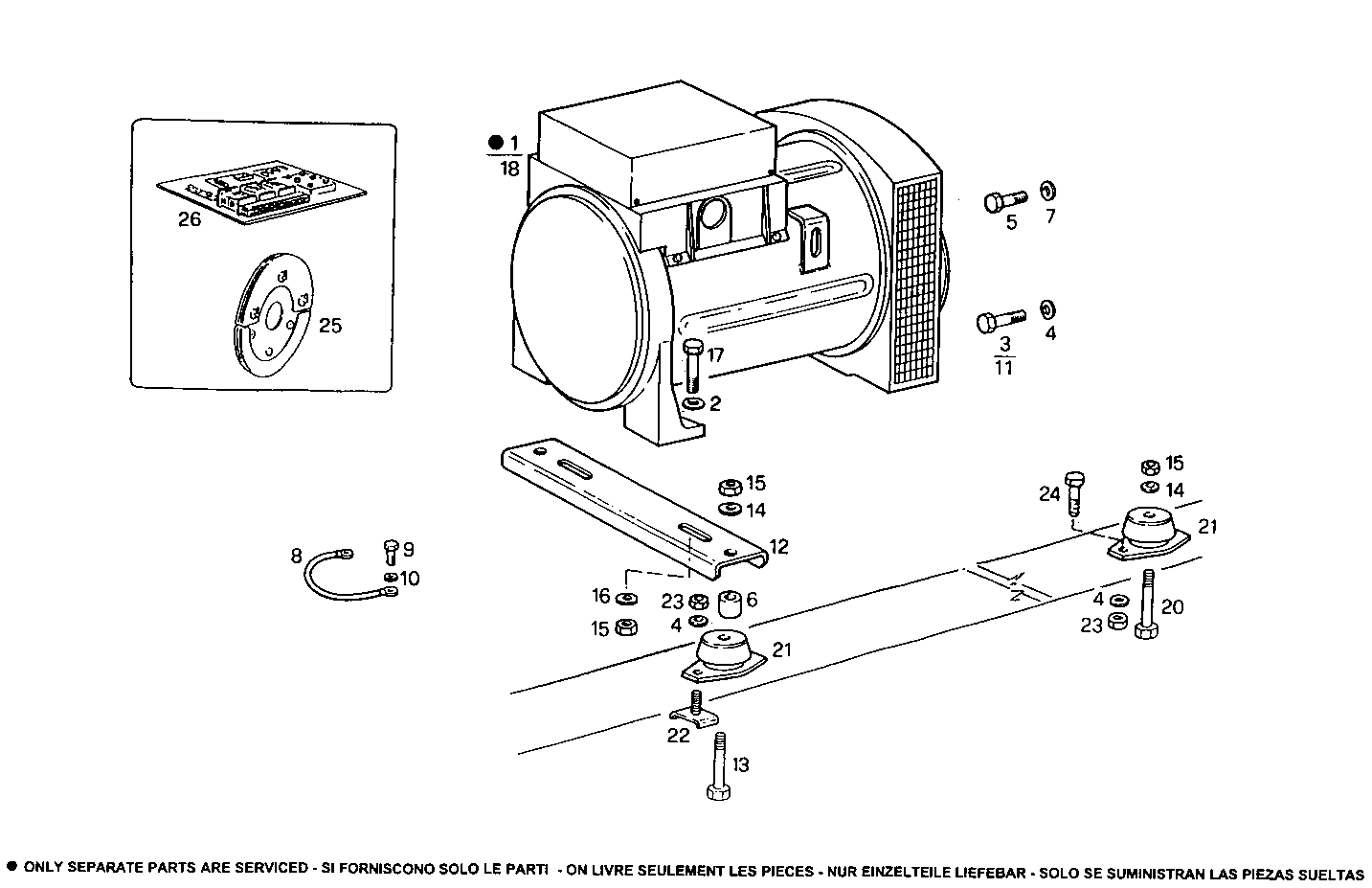

Item |
Part number |
Description |
1 |
8015999 |
ELECTRIC MACHINE EC 31 LC/4 50-60HZ [up to 06-93] |
2 |
4929369 |
WASHER |
3 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
5 |
15970521 |
HEXAGON BOLT M10X20 MM |
6 |
8016064 |
SPACING BAR |
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
8 |
8104707 |
WIRE/CABLE |
9 |
16605424 |
SCREW M8X16 MM (8.8) |
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
11 |
11306921 |
SCREW M10X1,25X30 |
12 |
8016047 |
SUPPORT |
13 |
16614524 |
HEXAGON BOLT M16X35 MM |
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
15 |
17038921 |
NUT M16X2 |
17 |
16614924 |
SCREW M16X55 |
18 |
8020910 |
ELECTRIC MACHINE ECN 31 35/4 50-60HZ |
20 |
16614624 |
HEXAGON BOLT M16X40 MM |
21 |
4955094 |
RUBBER PAD |
22 |
8015168 |
SCREW |
23 |
17037821 |
HEXAGON NUT M6X1 |
24 |
16606524 |
HEXAGON BOLT M8X70 MM |
25 |
8091775 |
EL.MACHINE DIODE ASSY |
26 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
