GE8041i05.55A905

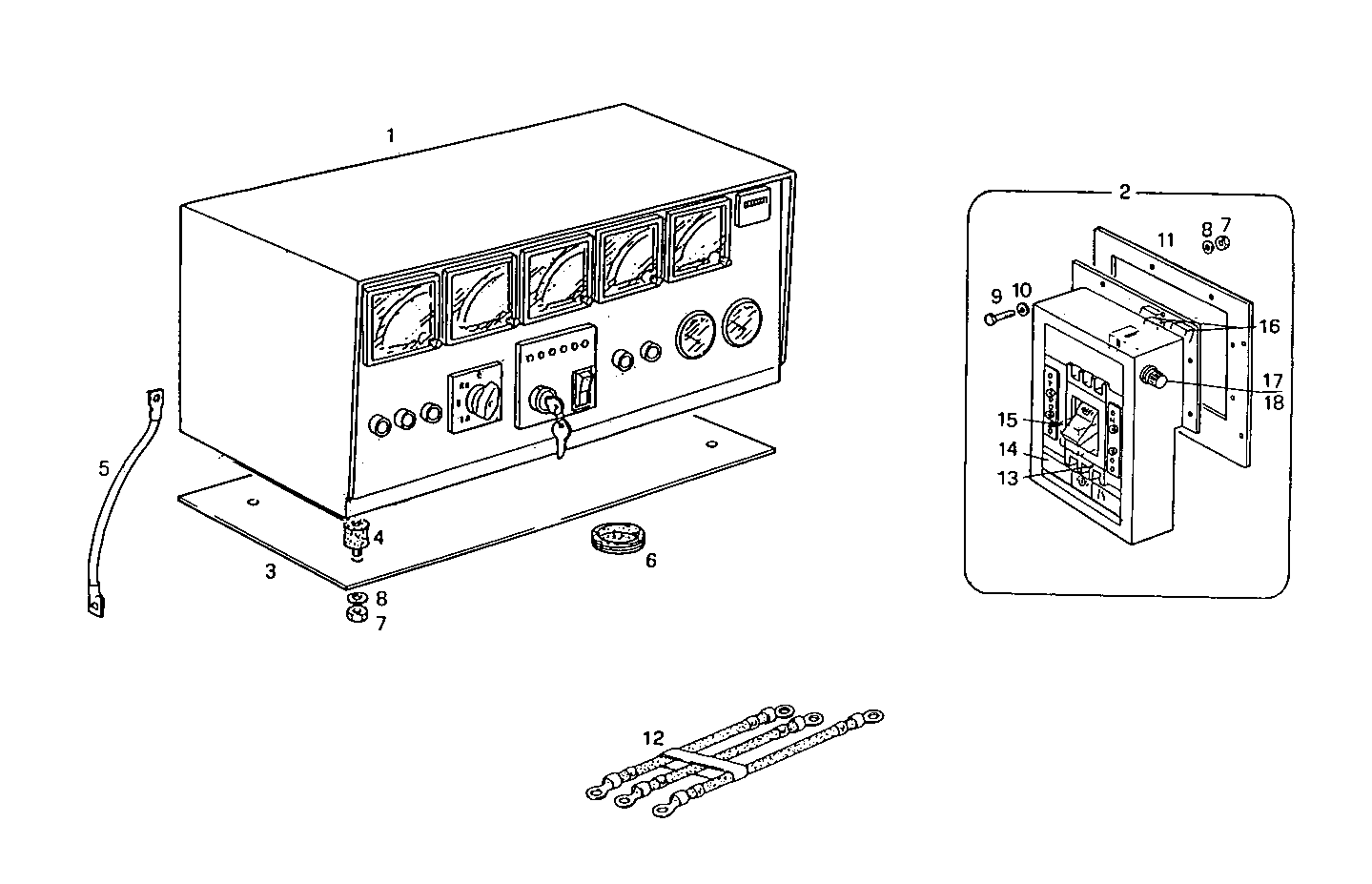

A60130052 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8018858 CONTROL BOARD ASSY 220V/380V 50-60HZ
2 8020588 SWITCH 160A
3 8019140 COVER
4 8104155 DOWEL
5 8110852 EARTH WIRE
6 8113214 INSULATING RING
7 17037821 HEXAGON NUT M6X1
8 17088474 WASHER Ø6X12 MM
9 16603524 SCREW M6X12 MM (8.8)
10 17094714 WASHER Ø6,4X12 MM
11 8021006 COVER
12 8020863 WIRE/CABLE
13 8021330 SWITCH
14 8021329 SWITCH
15 8021328 MINIMUN TENSION COIL
16 8090285 TRANSFORMATOR
17 8105267 FUSE BOX 2A
18 8105216 FUSE 10A
