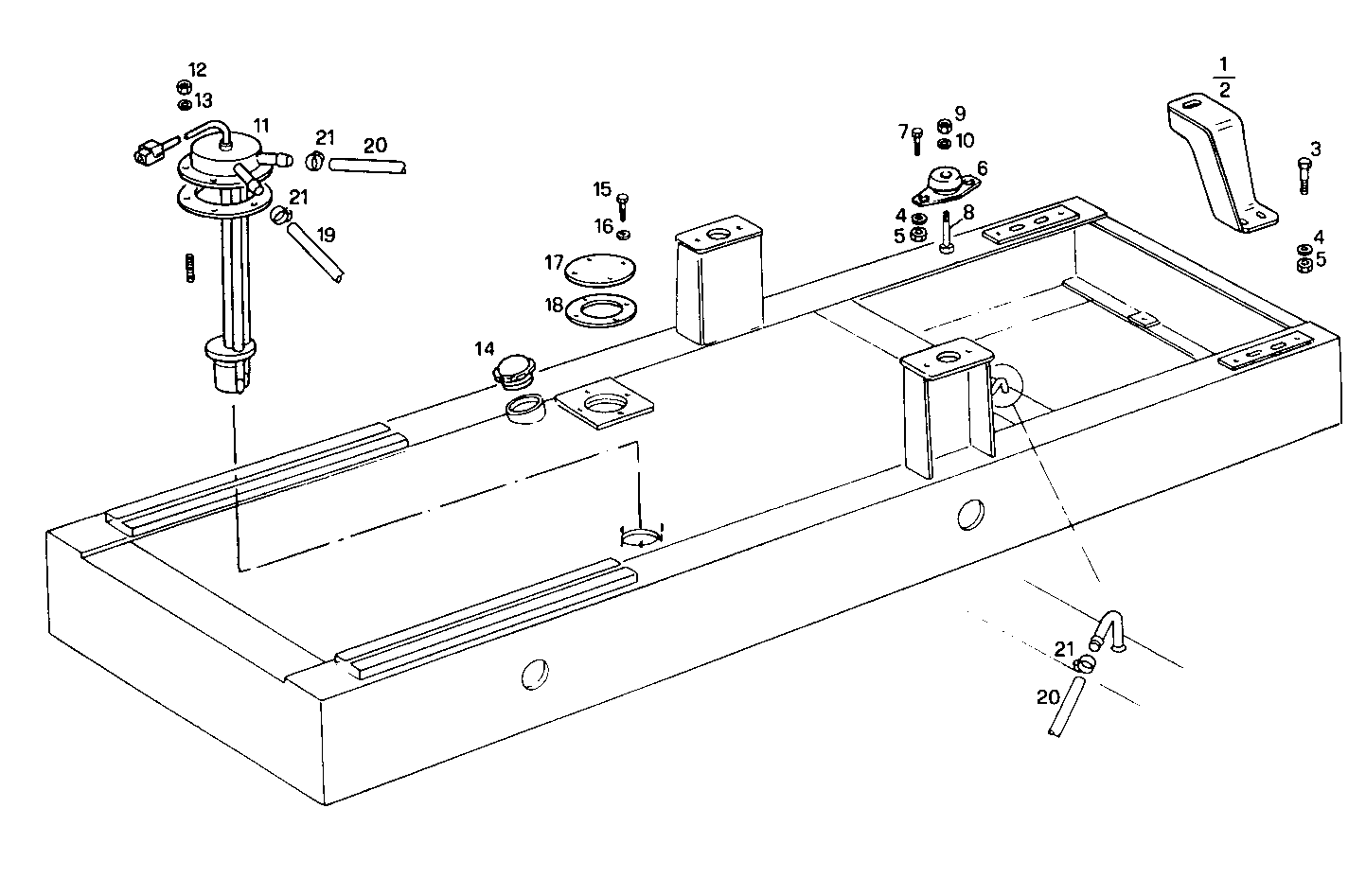

| Item |
Part number |
Description |
|
1 |
8023778 |
RETAINER LEFT |
|
2 |
8023698 |
RETAINER RIGHT |
|
3 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
17038121 |
HEXAGON NUT M10 |
|
6 |
8016784 |
RUBBER PAD |
|
7 |
16607624 |
SCREW M10X25 |
|
8 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
9 |
17038921 |
NUT M16X2 |
|
10 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
11 |
8025672 |
FUEL LEVEL GAUGE |
|
12 |
17037621 |
HEXAGON NUT M4 |
|
13 |
17094204 |
WASHER Ø4X8X0,8 MM |
|
14 |
8018418 |
FUEL TANK PLUG |
|
15 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
4686134 |
FLANGE |
|
18 |
8016004 |
GASKET |
|
19 |
19053382 |
HOSE |
|
20 |
17723082 |
BREATHER PIPE |
|
21 |
18087991 |
CLIP Ø8/16 MM |
