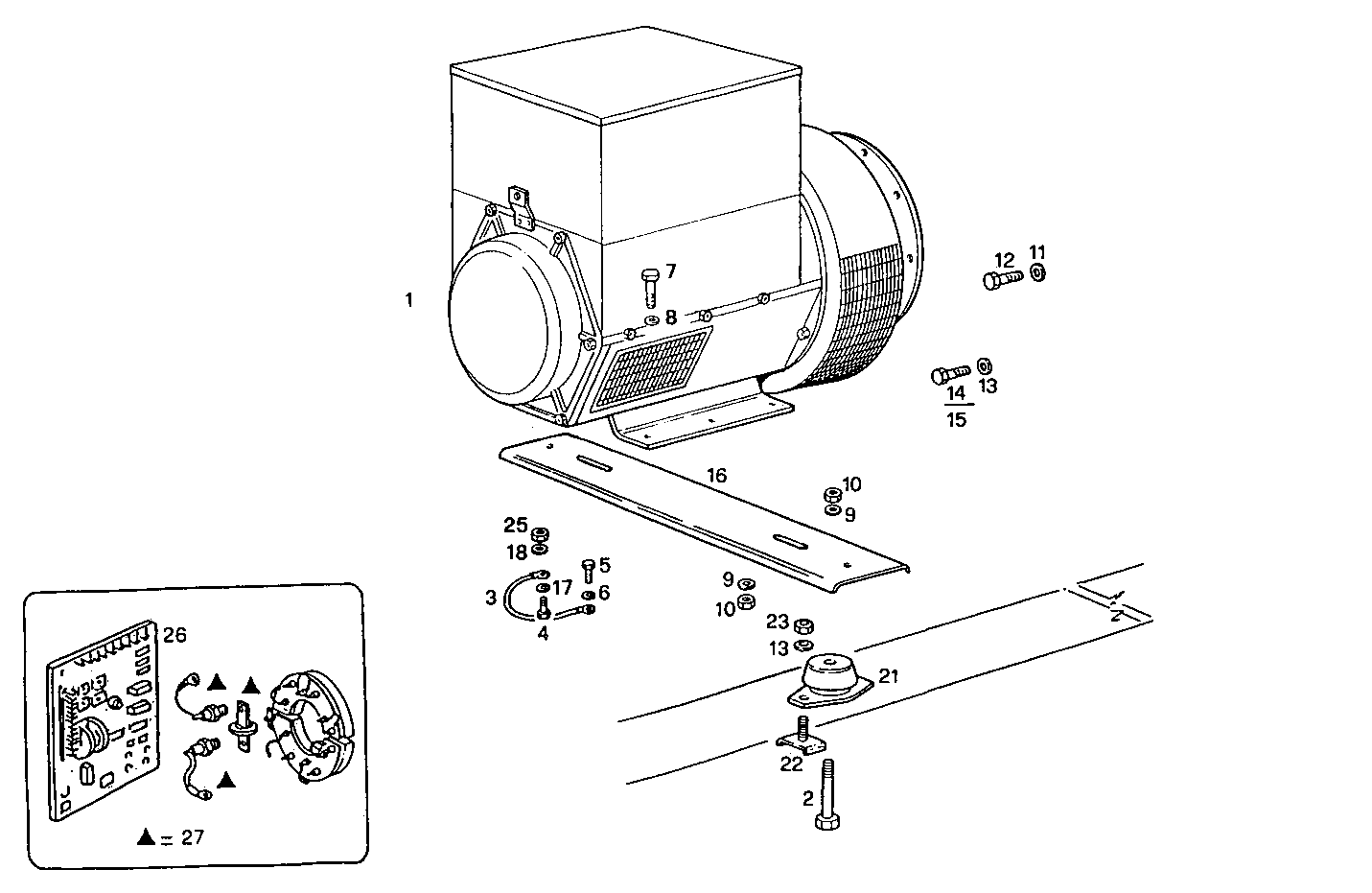

Item |
Part number |
Description |
1 |
8025955 |
ELECTRIC MACHINE UCD 224 C 16 50-60HZ |
2 |
16614524 |
HEXAGON BOLT M16X35 MM |
3 |
8110852 |
EARTH WIRE |
4 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
5 |
16043124 |
SCREW M8X14 MM |
6 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
7 |
16614824 |
SCREW M16X50 |
8 |
4929369 |
WASHER |
9 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
10 |
17038921 |
NUT M16X2 |
11 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
12 |
15970521 |
HEXAGON BOLT M10X20 MM |
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
14 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
15 |
16608024 |
HEXAGON BOLT M10X1,25X45 MM |
16 |
8016047 |
SUPPORT |
17 |
17094714 |
WASHER Ø6,4X12 MM |
18 |
17710174 |
WASHER Ø6X11 MM |
21 |
8016784 |
RUBBER PAD |
22 |
8016024 |
SCREW |
23 |
17038121 |
HEXAGON NUT M10 |
25 |
17037931 |
HEXAGON NUT M8X1,25 |
26 |
8106757 |
EL.MACHINE VOLTAGE REGUL. Stamford |
27 |
8092769 |
KIT-GENERATOR Stamford |
