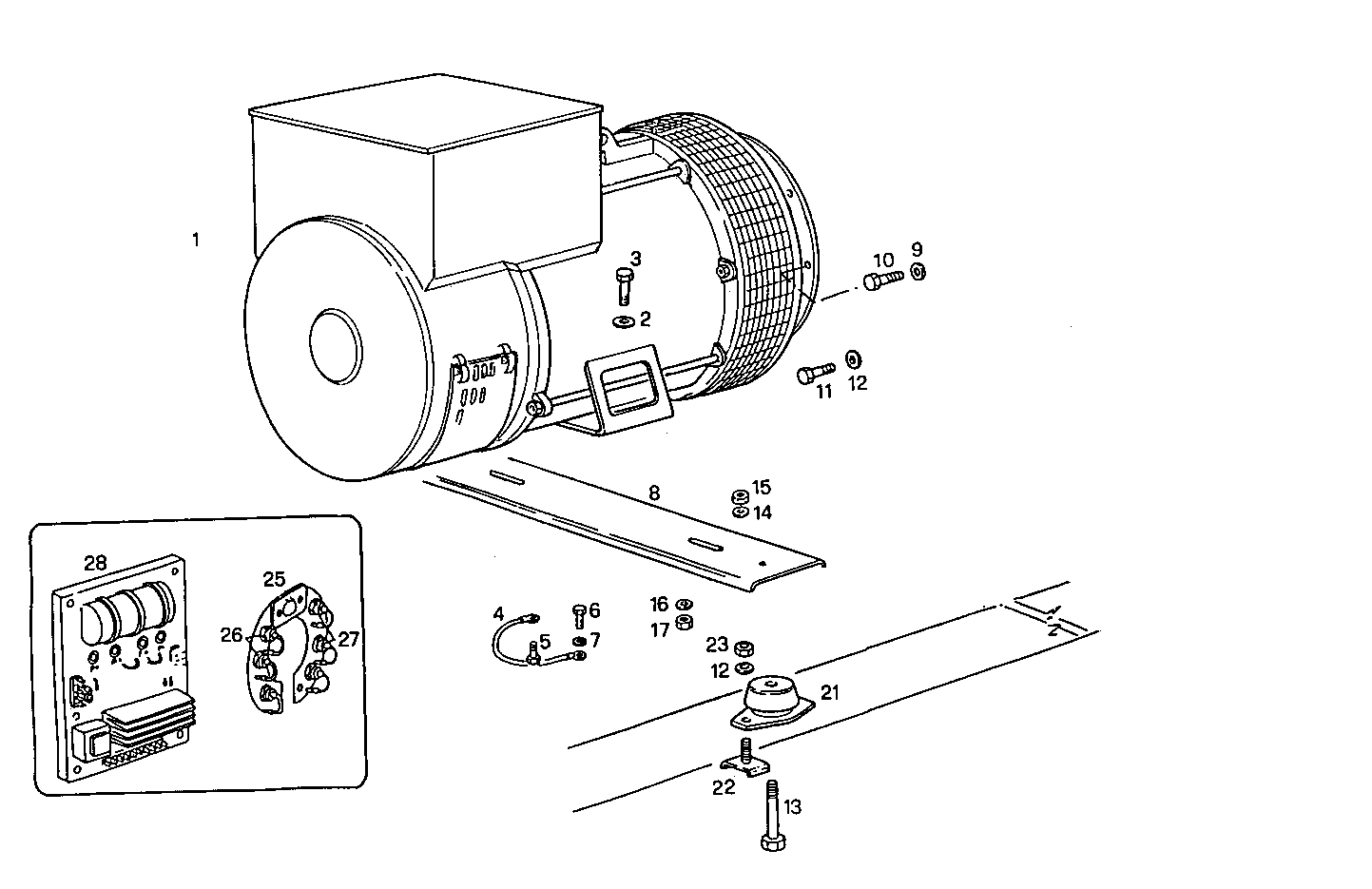

Item |
Part number |
Description |
1 |
8027654 |
ELECTRIC MACHINE LSA 432 S2 50-60HZ |
2 |
4929369 |
WASHER |
3 |
16610124 |
HEXAGON BOLT M12X40 MM |
4 |
8104707 |
WIRE/CABLE |
5 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
6 |
16043124 |
SCREW M8X14 MM |
7 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
8 |
8016047 |
SUPPORT |
9 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
10 |
15970521 |
HEXAGON BOLT M10X20 MM |
11 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
13 |
16614624 |
HEXAGON BOLT M16X40 MM |
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
15 |
17038921 |
NUT M16X2 |
16 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
17 |
17038521 |
HEXAGON NUT M12X1,5 |
21 |
8016784 |
RUBBER PAD |
22 |
8016024 |
SCREW |
23 |
17038121 |
HEXAGON NUT M10 |
25 |
8091777 |
SUPPRESSOR |
26 |
8090760 |
EL.MACHINE DIODE - |
27 |
8090759 |
EL.MACHINE DIODE + |
28 |
8090756 |
EL.MACHINE VOLTAGE REGUL. |
