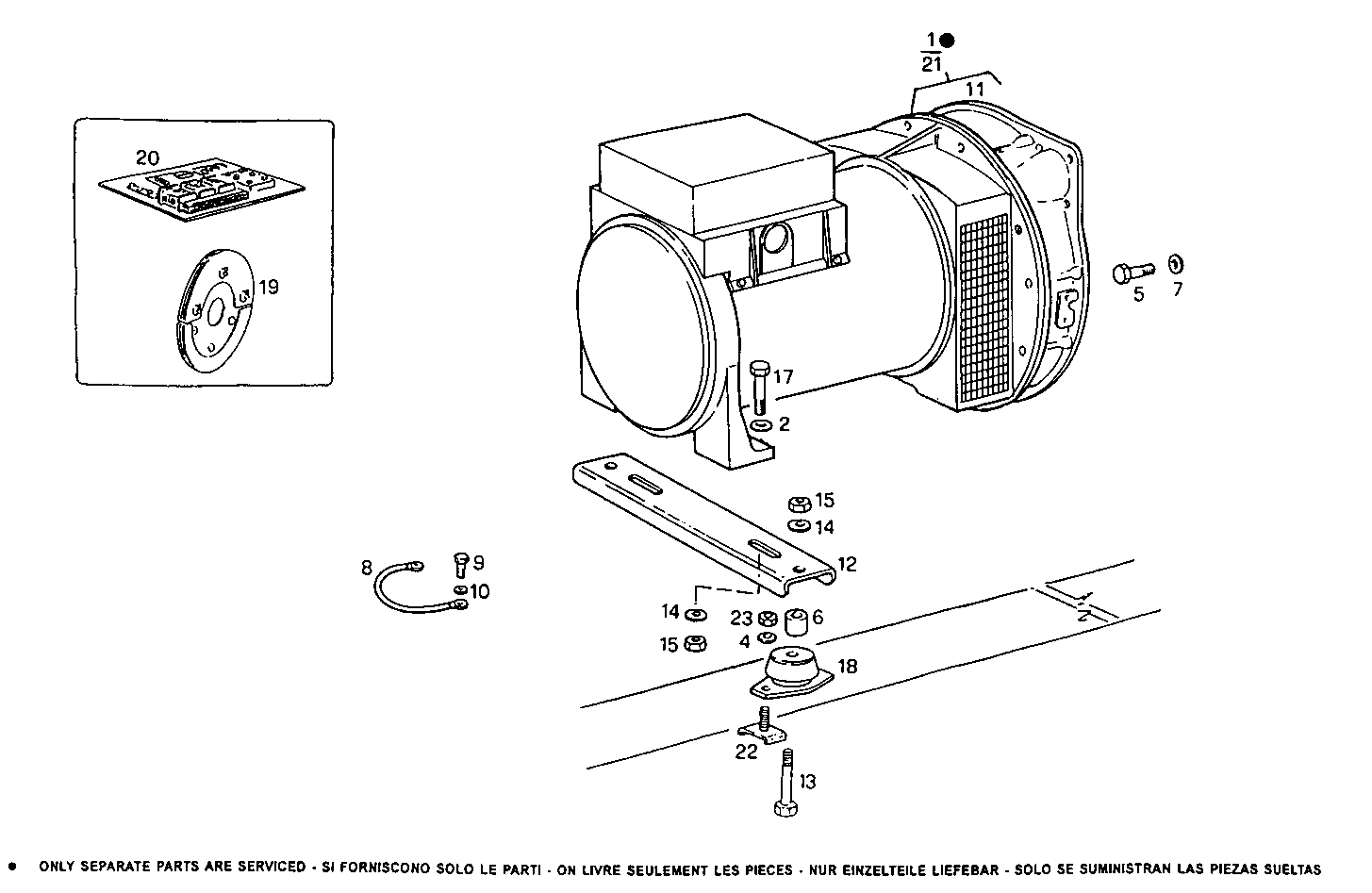

| Item |
Part number |
Description |
|
1 |
8025958 |
ELECTRIC MACHINE ECN 31 35/4 50-60HZ [up to 12-98] |
|
2 |
4929369 |
WASHER |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
8 |
8104707 |
WIRE/CABLE |
|
9 |
16605424 |
SCREW M8X16 MM (8.8) |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
8025397 |
COUPLING BELL |
|
12 |
8016047 |
SUPPORT |
|
13 |
16614524 |
HEXAGON BOLT M16X35 MM |
|
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
15 |
17038921 |
NUT M16X2 |
|
17 |
16614924 |
SCREW M16X55 |
|
18 |
8016784 |
RUBBER PAD |
|
19 |
8091775 |
EL.MACHINE DIODE ASSY |
|
20 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
|
21 |
8027356 |
ELECTRIC MACHINE ECO 32 35/4 50-60HZ [from 03-99] |
|
22 |
8016024 |
SCREW |
|
23 |
17038121 |
HEXAGON NUT M10 |
