GE8041i06.55A905

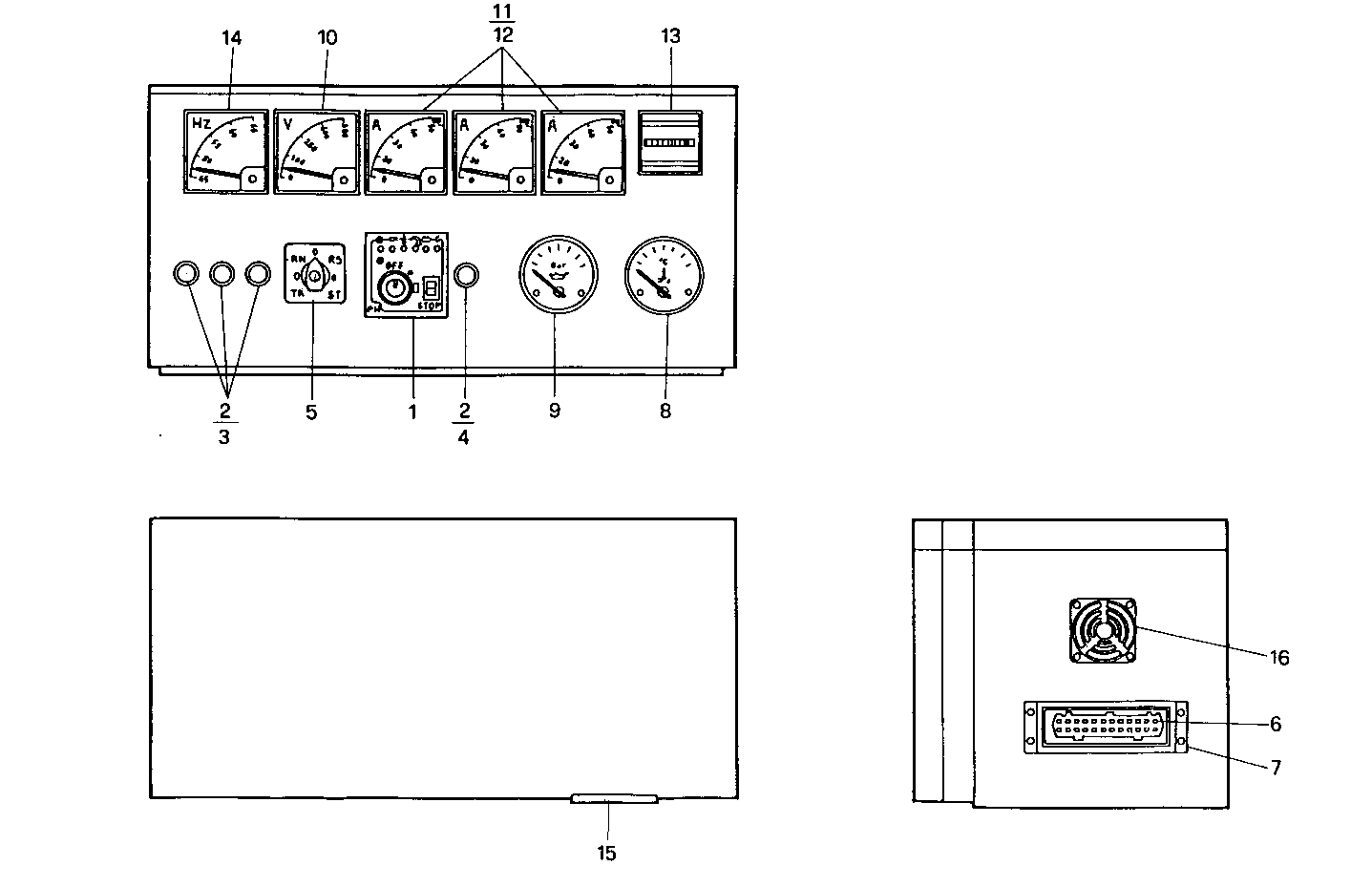

T0020127 MANUAL CONTROL BOARD - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8092698 | ELECTRONIC CARD |
| 2 | 8092826 | FUSE BOX 20A - 250V |
| 3 | 8105268 | FUSE 2A |
| 4 | 8092823 | FUSE 20A |
| 5 | 8104624 | SWITCH |
| 6 | 8092825 | CONNECTION |
| 7 | 8092824 | CONTAINER |
| 8 | 8105108 | THERMOMETER |
| 9 | 8105109 | PRESSURE GAUGE |
| 10 | 8109465 | VOLTMETER |
| 11 | 8090904 | AMMETER |
| 12 | 8110917 | STOP PLATE 150 - 300A |
| 13 | 8090251 | HOURMETER |
| 14 | 8109466 | FREQUENCYMETER |
| 15 | 8113214 | INSULATING RING |
| 16 | 8107950 | ACOUSTIC HORN |
