GE8041i06.55R920

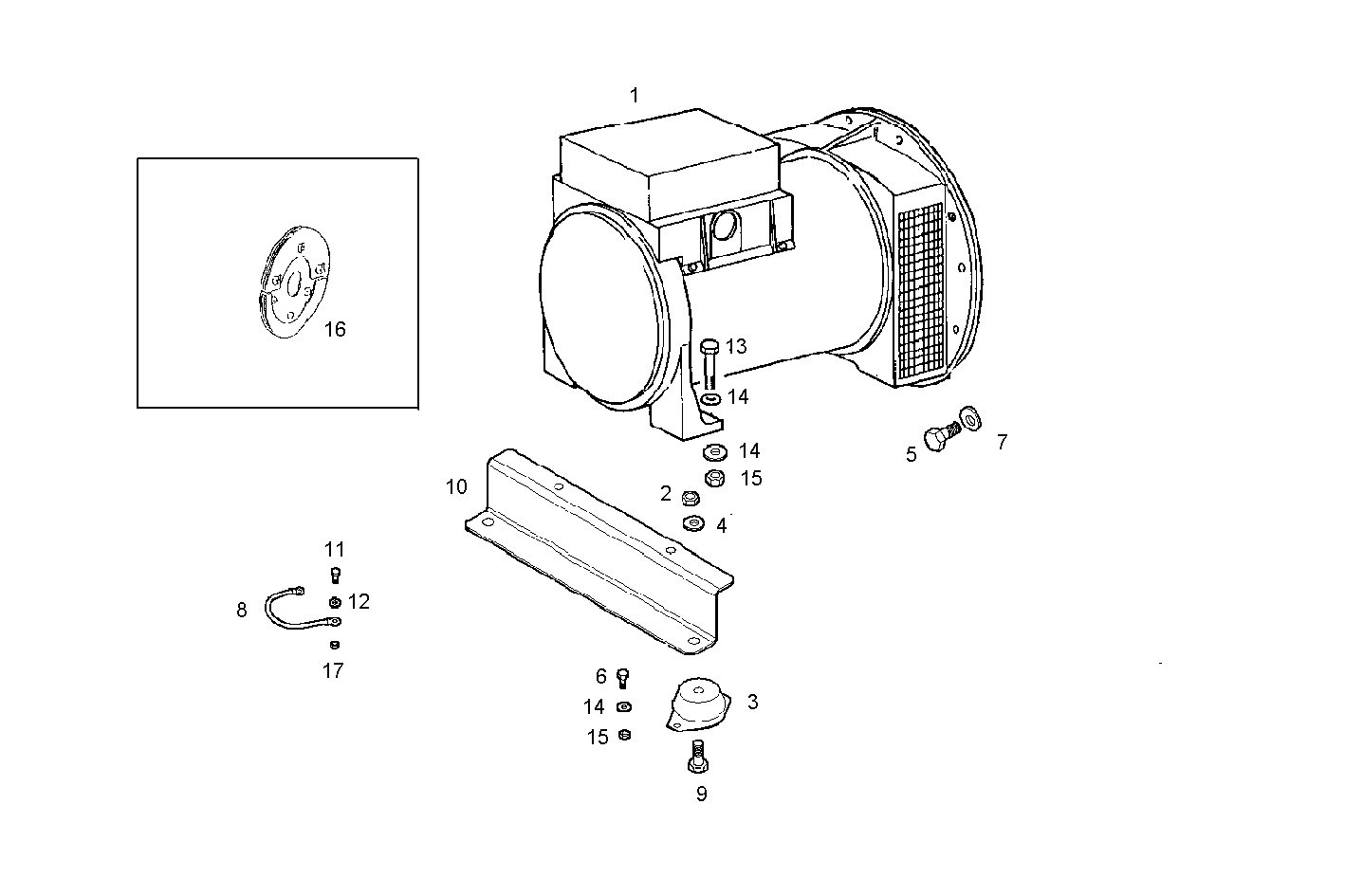

A37410066/01 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8027356 ELECTRIC MACHINE ECO 32 35/4 50-60HZ [from 03-99]
2 17038121 HEXAGON NUT M10
3 8016784 RUBBER PAD
4 17090174 SPRING WASHER Ø10X20 MM
5 15970524 HEXAGON BOLT M10X1,25X20
6 16615924 SCREW
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8104707 WIRE/CABLE
9 16606724 HEXAGON BOLT M8X90 MM
10 8030050 TIE
11 16605424 SCREW M8X16 MM (8.8)
12 17089574 WASHER Ø8X16 MM
13 16614524 HEXAGON BOLT M16X35 MM
14 17092374 SPRING WASHER Ø16X34X3,6 MM
15 17038931 HEXAGON NUT M16X2
16 8093776 EL.MACHINE BEARING
17 17037921 HEXAGON NUT M8X1,25
18 8093717 EL.MACHINE VOLTAGE REGUL. MECC-ALTE
