GE8045E00.50A011

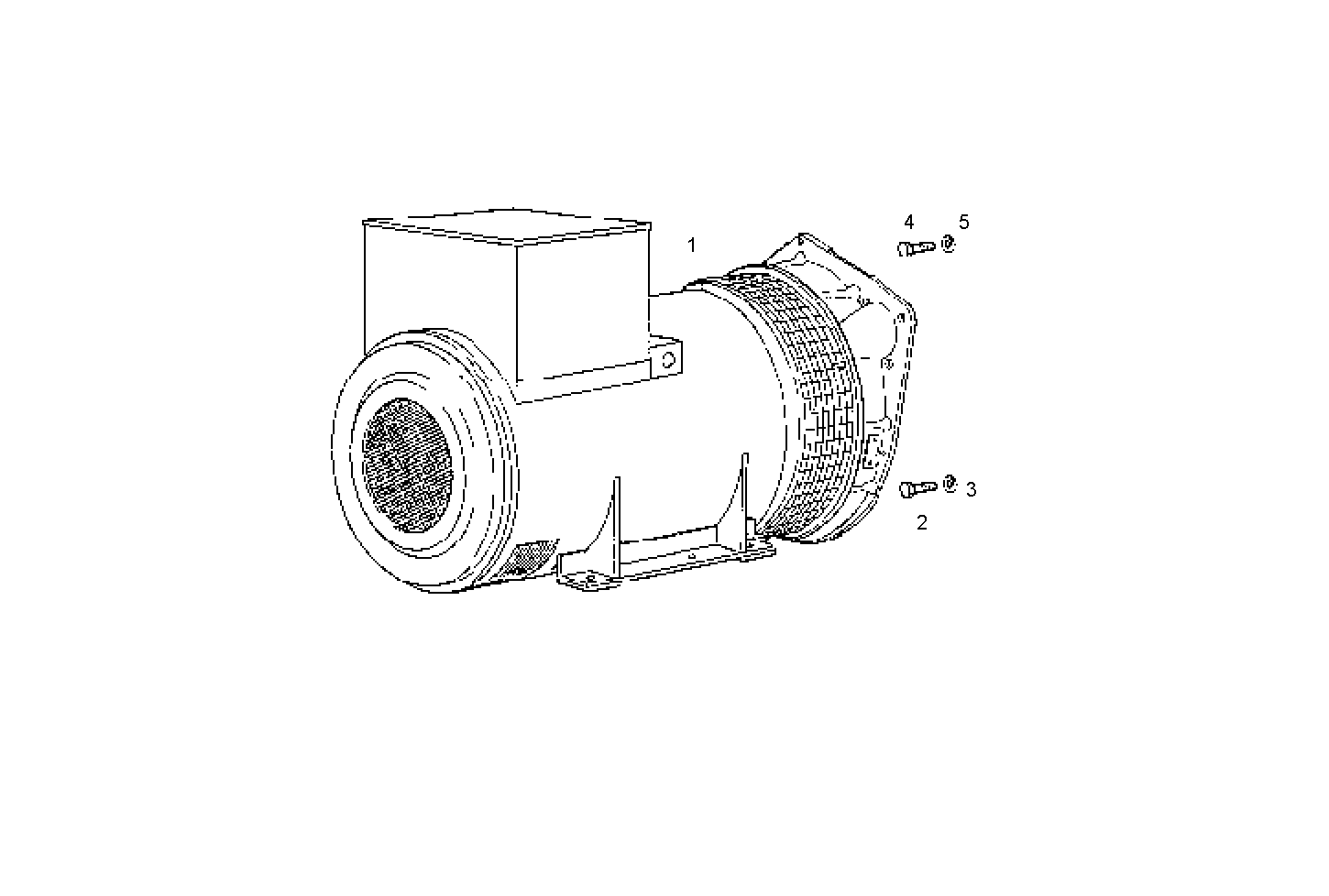

A37999999 ELECTRIC MACHINE
| Item | Part number | Description |
|---|---|---|
| 1 | 503111521 | ELECTRIC MACHINE ASSY |
| 2 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 5 | 17494934 | WASHER Ø10X18,1X2,2 MM |
