GE8045M08.00A60S

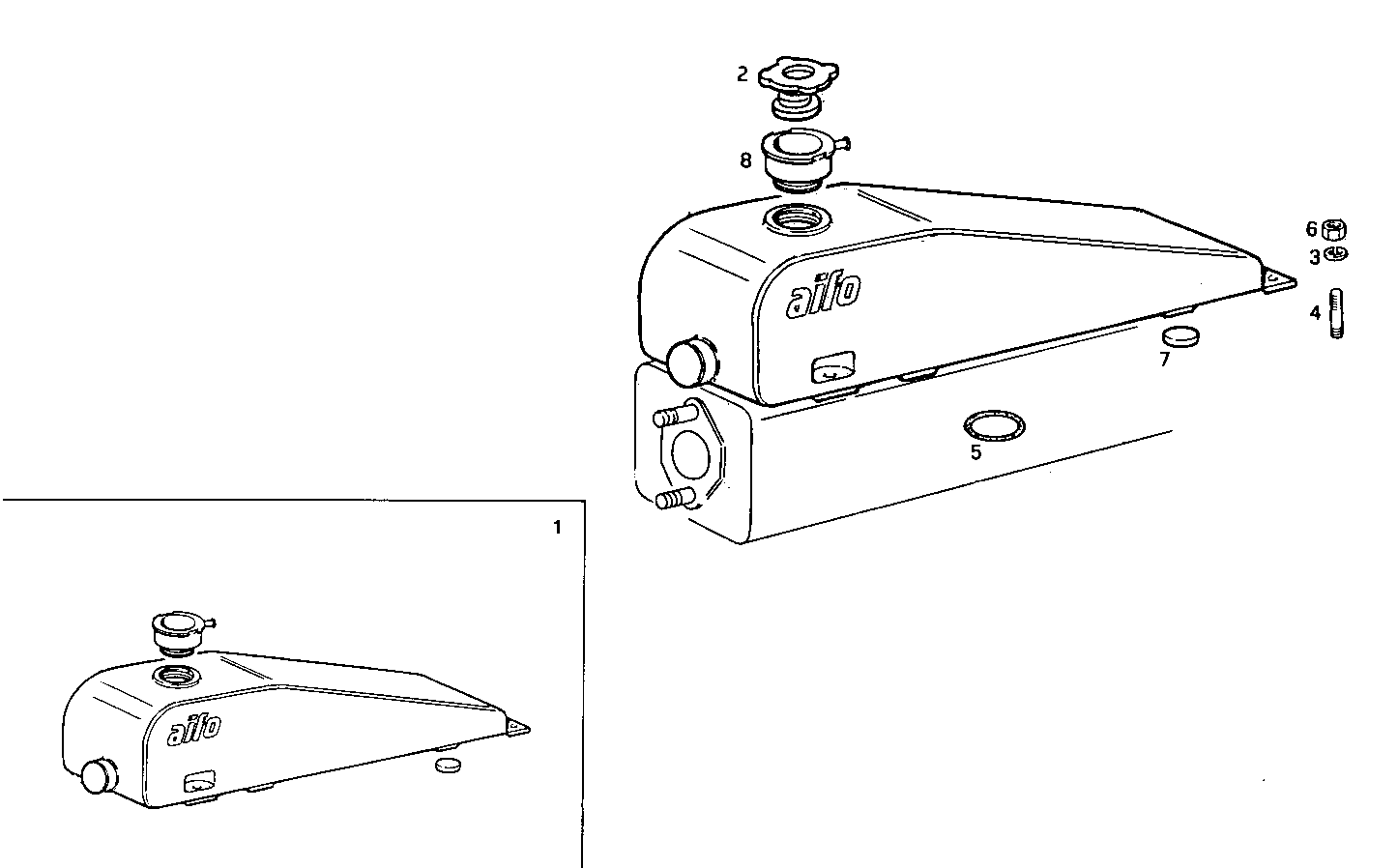

3290.003 EXPANSION TANK

Iveco/FPT EXPANSION TANK

Item Part number Description
1 8110266 WATER EXPANSION TANK ASSY
2 4930462 PLUG
3 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
4 16746624 STUD M8X20 MM (8.8)
5 17281981 O-RING Ø18,7 MM SP=2,6 MM
6 17037931 HEXAGON NUT M8X1,25
7 16991170 LOCK PLUG Ø36 MM
8 8102030 FILLER NECK
