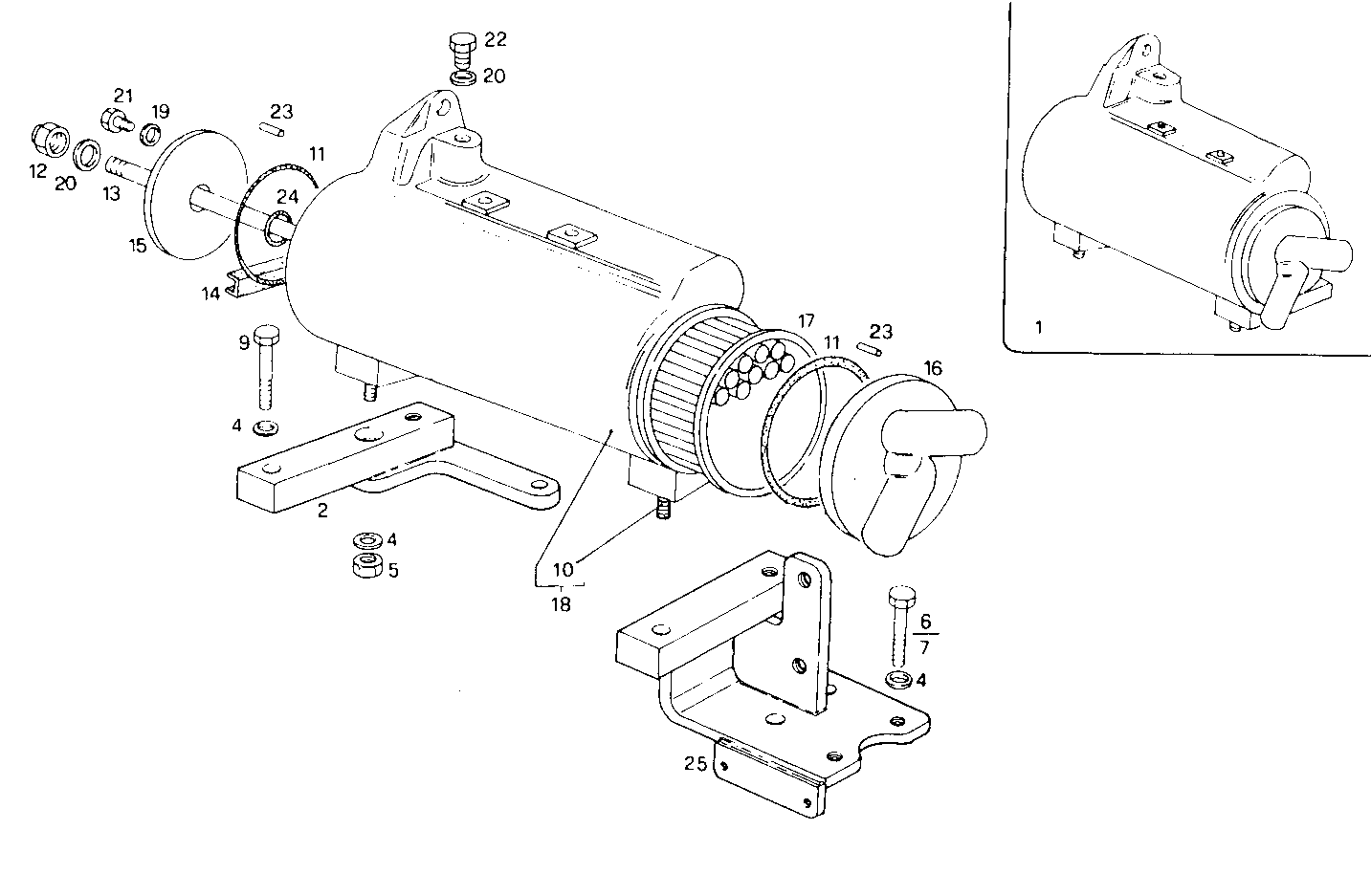

| Item |
Part number |
Description |
|
1 |
8107438 |
WATER/SEA WATER HEAT EXCH ASSY |
|
2 |
8020106 |
SUPPORT |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
17038221 |
HEXAGON NUT M10 |
|
6 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
7 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
10 |
13449824 |
STUD M10X1,25X15 MM |
|
11 |
4918846 |
O-RING |
|
12 |
14056240 |
NUT M12X1,25 |
|
13 |
4919239 |
TIE ROD |
|
14 |
4927193 |
GASKET |
|
15 |
4927723 |
HEAT EXCHANG.COVER FRONT |
|
16 |
4927722 |
HEAT EXCHANG.COVER REAR |
|
17 |
4931141 |
TUBE STACK |
|
18 |
4933758 |
HEAT EXANGER BODY |
|
19 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
20 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
|
21 |
11903140 |
PLUG M10X1,25 |
|
22 |
11903240 |
PLUG M12 |
|
23 |
14158570 |
DOWEL PIN Ø2,3 MM |
|
24 |
17281681 |
O-RING Ø13,9 MM SP=2,6 MM |
|
25 |
8020107 |
SUPPORT |
