GE8045M08.00A60S

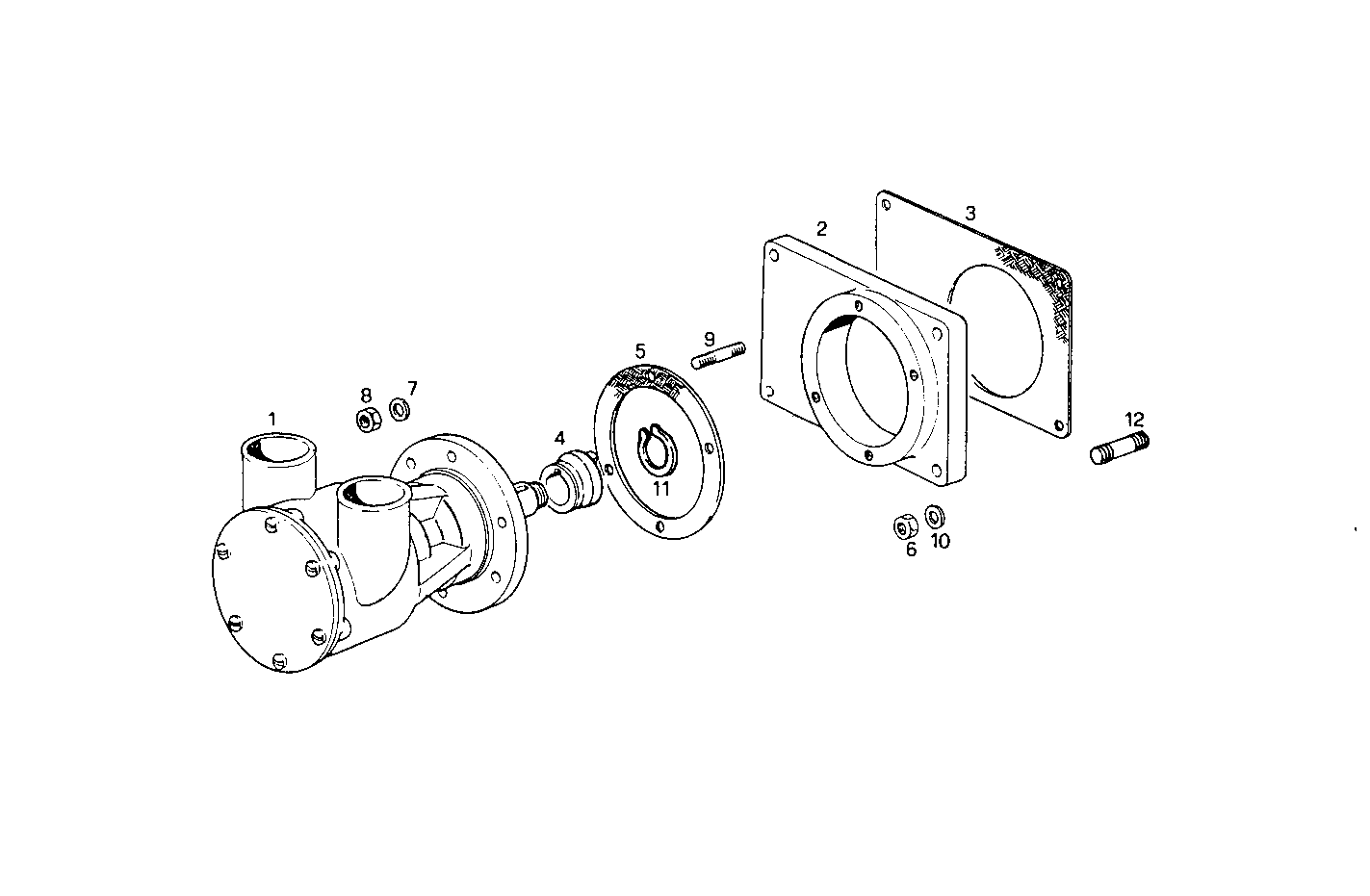

3380.024/01 SEA WATER PUMP - JABSCO
Item | Part number | Description |
---|---|---|
1 | 8027300 | SEA WATER PUMP ASSY JABSCO |
2 | 8027302 | SUPPORT |
3 | 500378759 | FLAT ENGINE GASKET ASSY |
4 | 8023392 | UNIVERSAL JOINT |
5 | 8008922 | GASKET |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 17037821 | HEXAGON NUT M6X1 |
9 | 16727624 | STUD M6X16 MM |
10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
11 | 17084476 | CIRCLIP Ø14 MM |
12 | 16729424 | STUD M8X1,25X25 |
