GE8045M08.00A60S

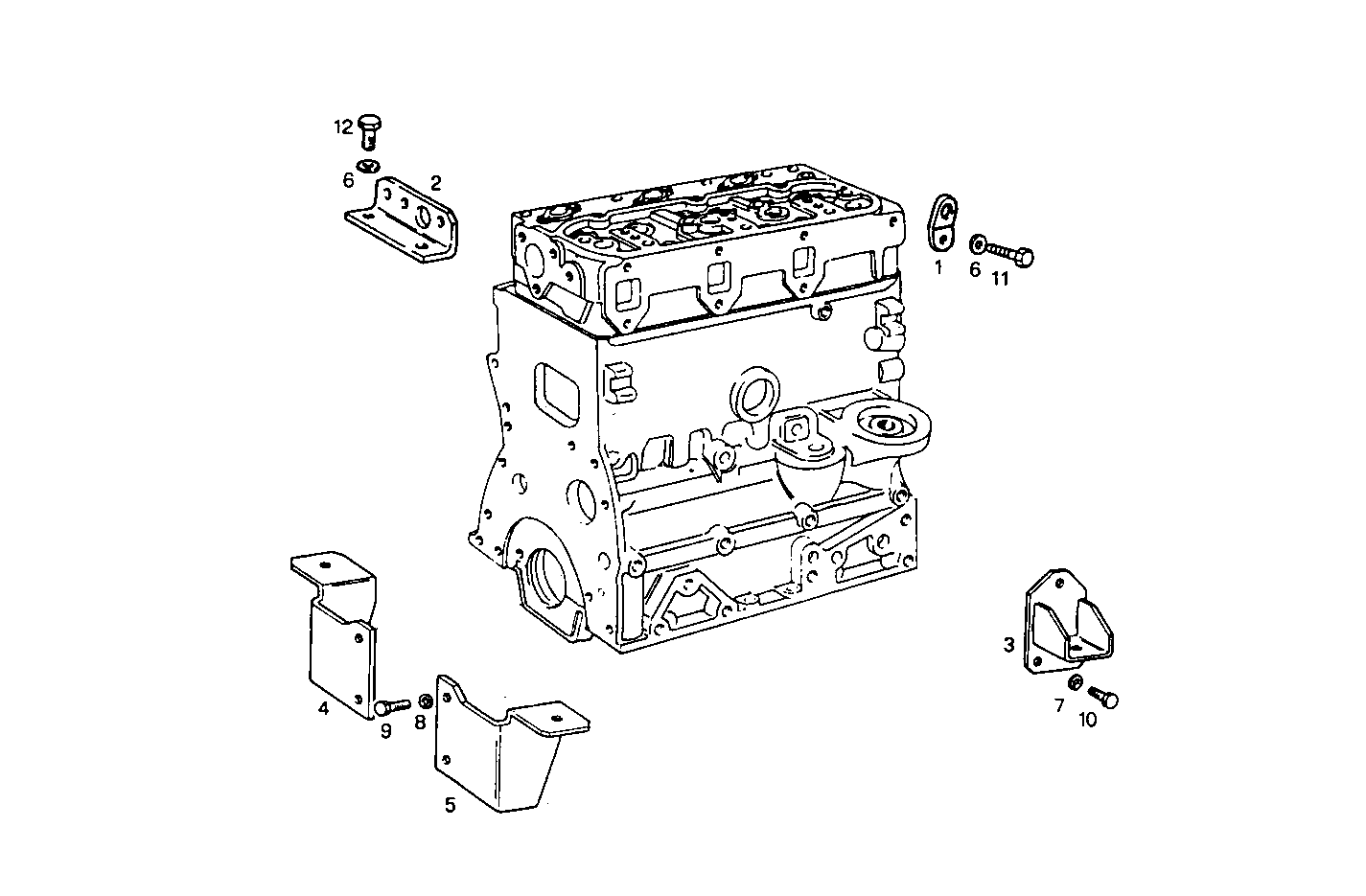

4500.009 ENGINE SUSPENSION

Iveco/FPT ENGINE SUSPENSION

Item Part number Description
1 8107429 HOOK REAR - LEFT
2 4746561 HOOK FRONT
3 4928444 ENGINE SUSPENSION REAR
4 8106383 ENGINE SUSPENSION RIGHT
5 8106384 ENGINE SUSPENSION LEFT
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17090174 SPRING WASHER Ø10X20 MM
8 17092174 SPRING WASHER Ø16X32X3,4
9 11376221 HEXAGON BOLT M16X1,5X35 MM
10 15004021 HEXAGON BOLT M10X1,25X25 MM
12 16043224 SCREW M8X16 MM
