GE8045M08.00A60S

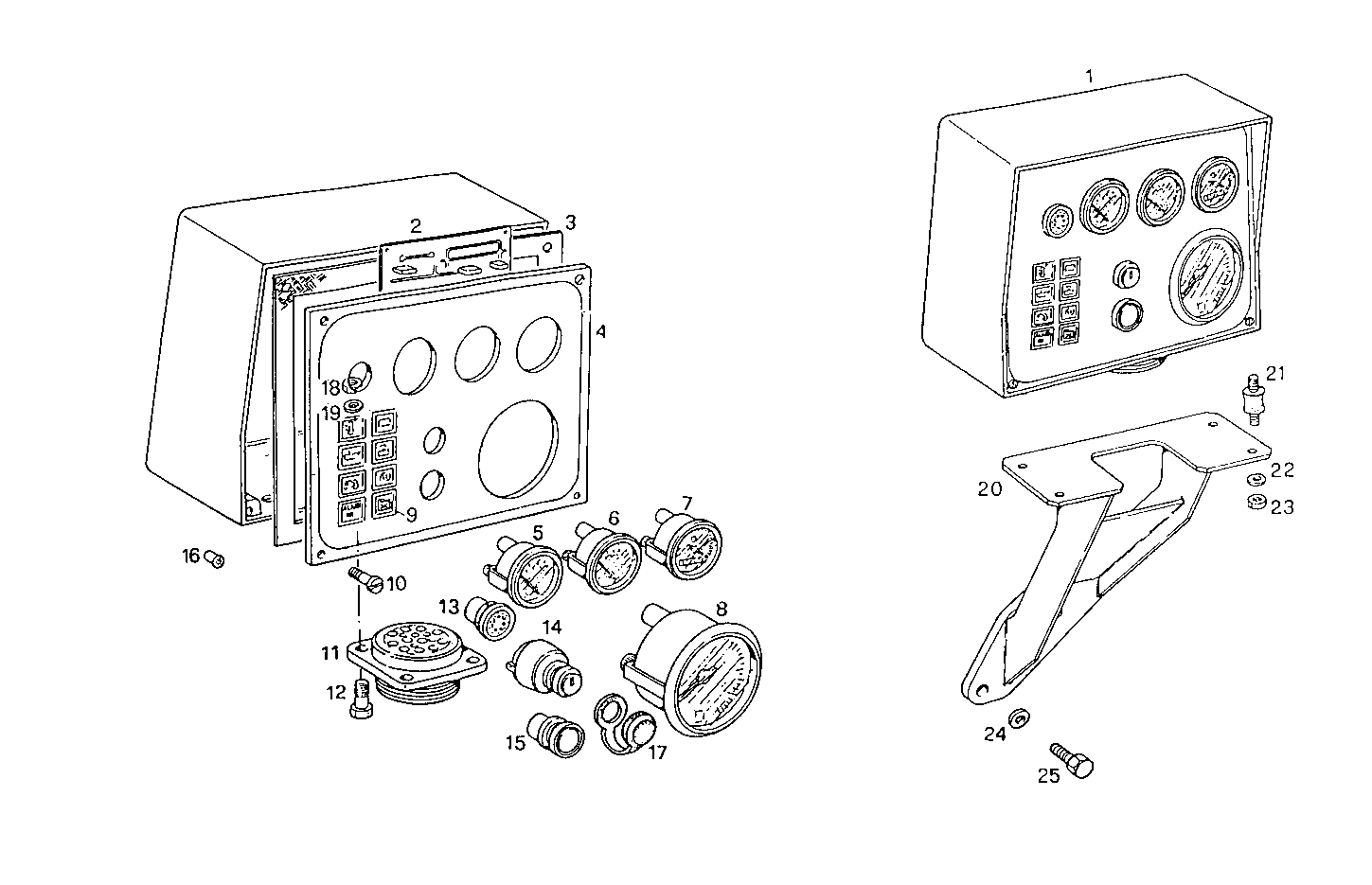

A38680905 ELECTRIC INSTRUMENTS PANEL - 24V - VDO

Iveco/FPT ELECTRIC INSTRUMENTS PANEL

Item Part number Description
1 8010330 INSTRUMENTS BOARD
2 8007783 ELECTRONIC CARD
3 8100350 GASKET
4 8110225 PLATE
5 8025017 PRESSURE GAUGE 10 BAR
6 8025016 THERMOMETER
7 8025018 VOLTMETER
8 8025019 REVOLUTION COUNTER
9 8110229 WARNING LIGHT
10 8103662 SCREW M4X10
11 8105629 CONNECTION
12 17129714 SCREW
13 8110230 ACOUSTIC HORN
14 8103708 SWITCH
15 8025024 PUSH BUTTON STOP
16 8025074 LUMINOUS INDICATOR
17 8110226 CAP
18 17037521 NUT M3
19 17094004 WASHER Ø3 MM
20 8108483 RETAINER
21 4910949 RUBBER LUG
22 17088474 WASHER Ø6X12 MM
23 17037821 HEXAGON NUT M6X1
24 17090174 SPRING WASHER Ø10X20 MM
25 15970521 HEXAGON BOLT M10X20 MM
