GE8045M08.00A61S

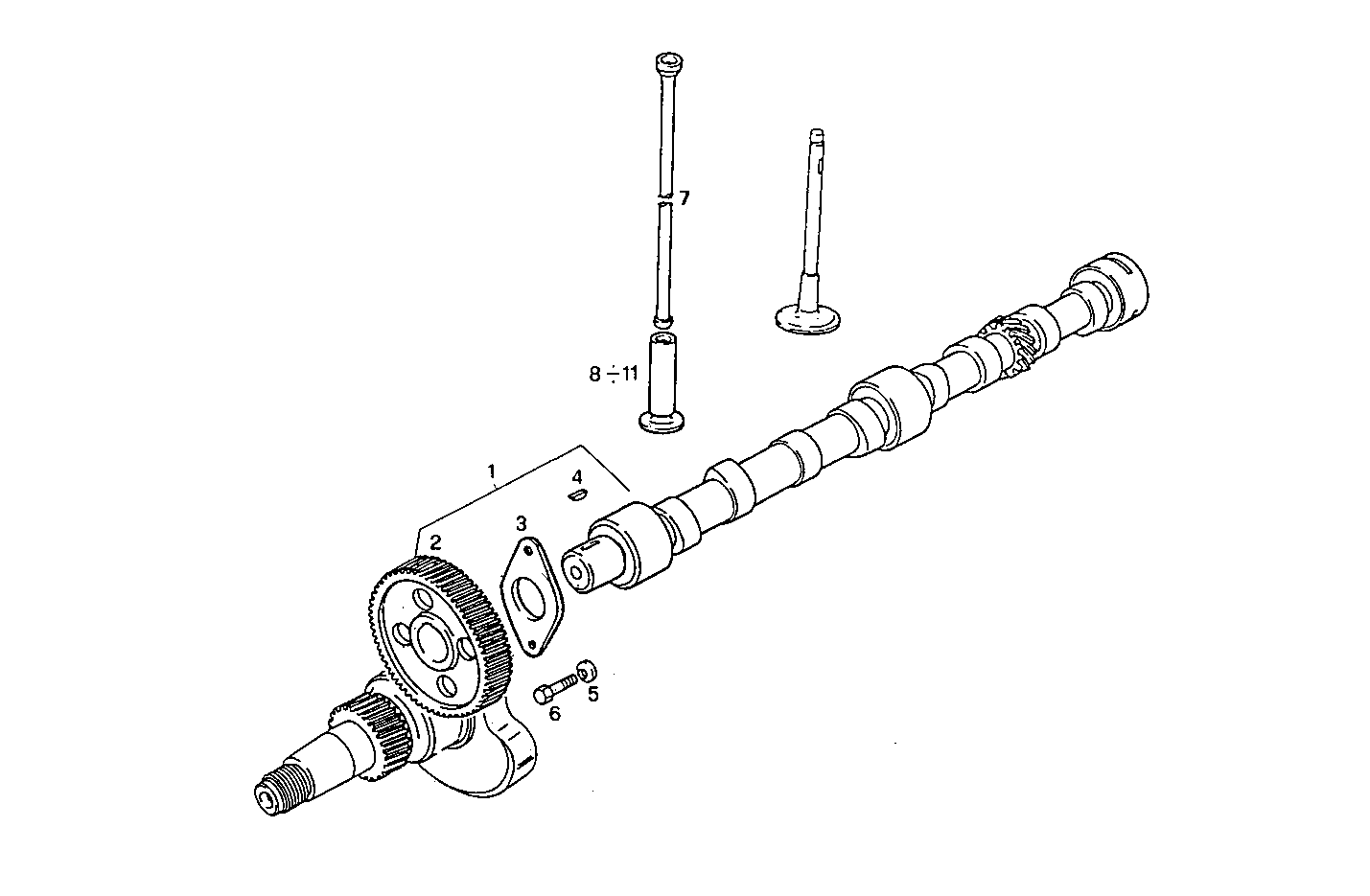

1250.045 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 98425868 | CAMSHAFT ASSY |
| 2 | 98418417 | TIMING INTERM.GEA |
| 3 | 4599398 | PLATE |
| 4 | 10205910 | KEY 5X9 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 98471533 | PUSHROD GKN |
| 8 | 98471524 | VALVE TAPPET +0,0 MM |
| 9 | 98471525 | TAPPET +0,1 MM |
| 10 | 98471526 | TAPPET +0,2 MM |
| 11 | 98471527 | TAPPET +0,3 MM |
