GE8045M08.00A61S

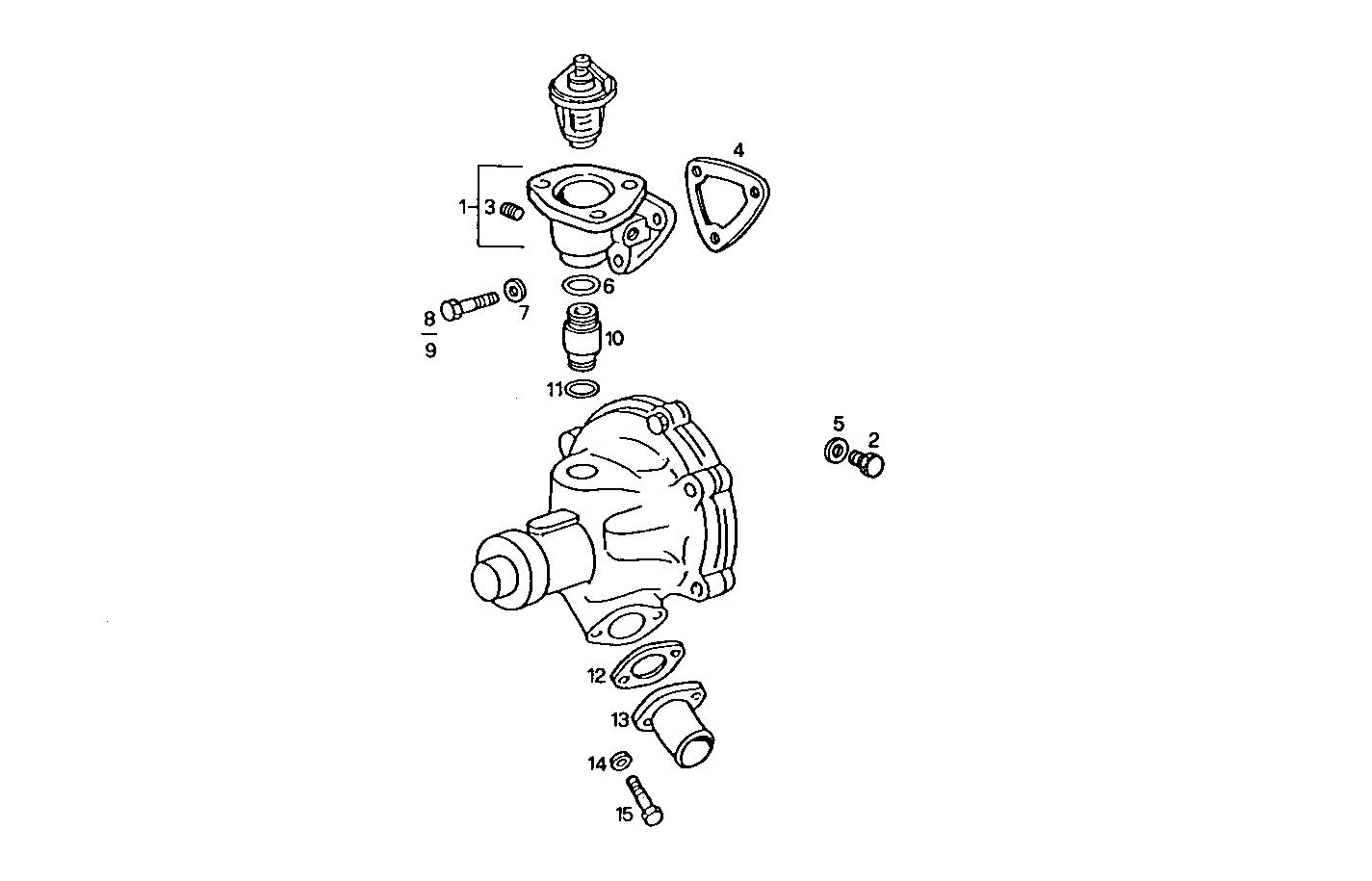

3210.171/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4823608 THERMOSTAT BODY ASSY [from 555948]
2 16992440 THREADED PLUG M16X1,5
3 16997611 THREADED PLUG M20X1,5
4 4851926 FLAT ENGINE GASKET
5 10257060 SEAL GASKET Ø16X22 MM SP=1,5 MM
6 17288681 O-RING Ø24,9 MM SP=3,5 MM
7 15970174 WASHER
8 15004021 HEXAGON BOLT M10X1,25X25 MM
9 11234721 HEXAGON BOLT M10X1,25X45 MM
10 98415712 PIPE SOCKET [from 657424]
11 17282281 O-RING 2,62x23,47
12 4852556 FLAT ENGINE GASKET
13 4697838 WATER PIPE
14 17094914 WASHER 8x16
15 98401723 HEXAGON BOLT M8X1,25X12 MM
