GE8045M08.00A61S

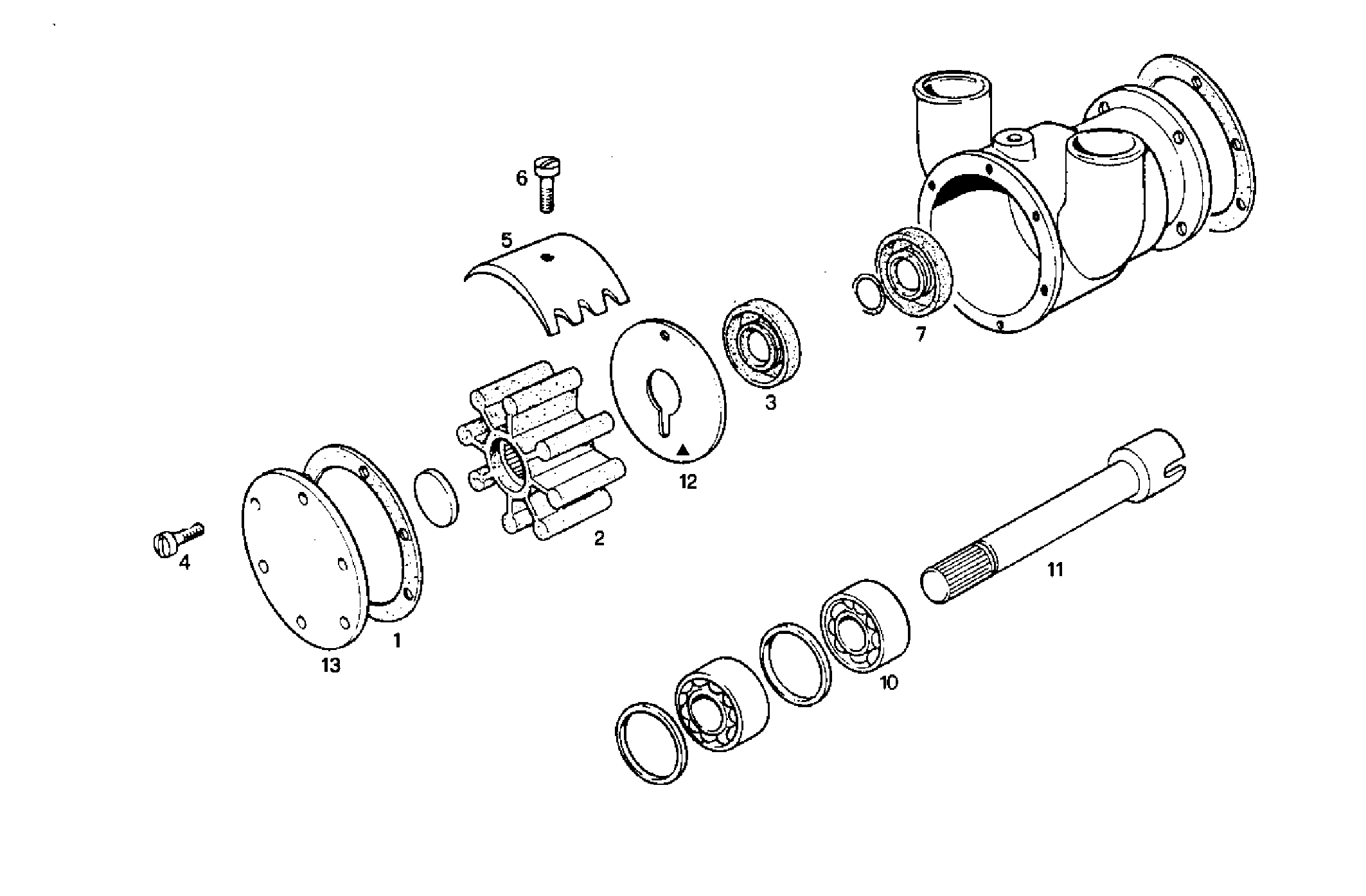

3380.024/02 SEA WATER PUMP - JABSCO

Iveco/FPT SEA WATER PUMP

Item Part number Description
1 8108230 GASKET
2 4913429 SEA WATER PUMP IMPELL.
3 8093752 WASHER
4 4914930 SCREW
5 8108233 RETAINING CAM
6 4914931 SCREW
10 8108240 DRIVE BEARING
11 8093753 SHAFT
12 8108235 WASHER
13 4914923 COVER
