GE8045M08.20A60S

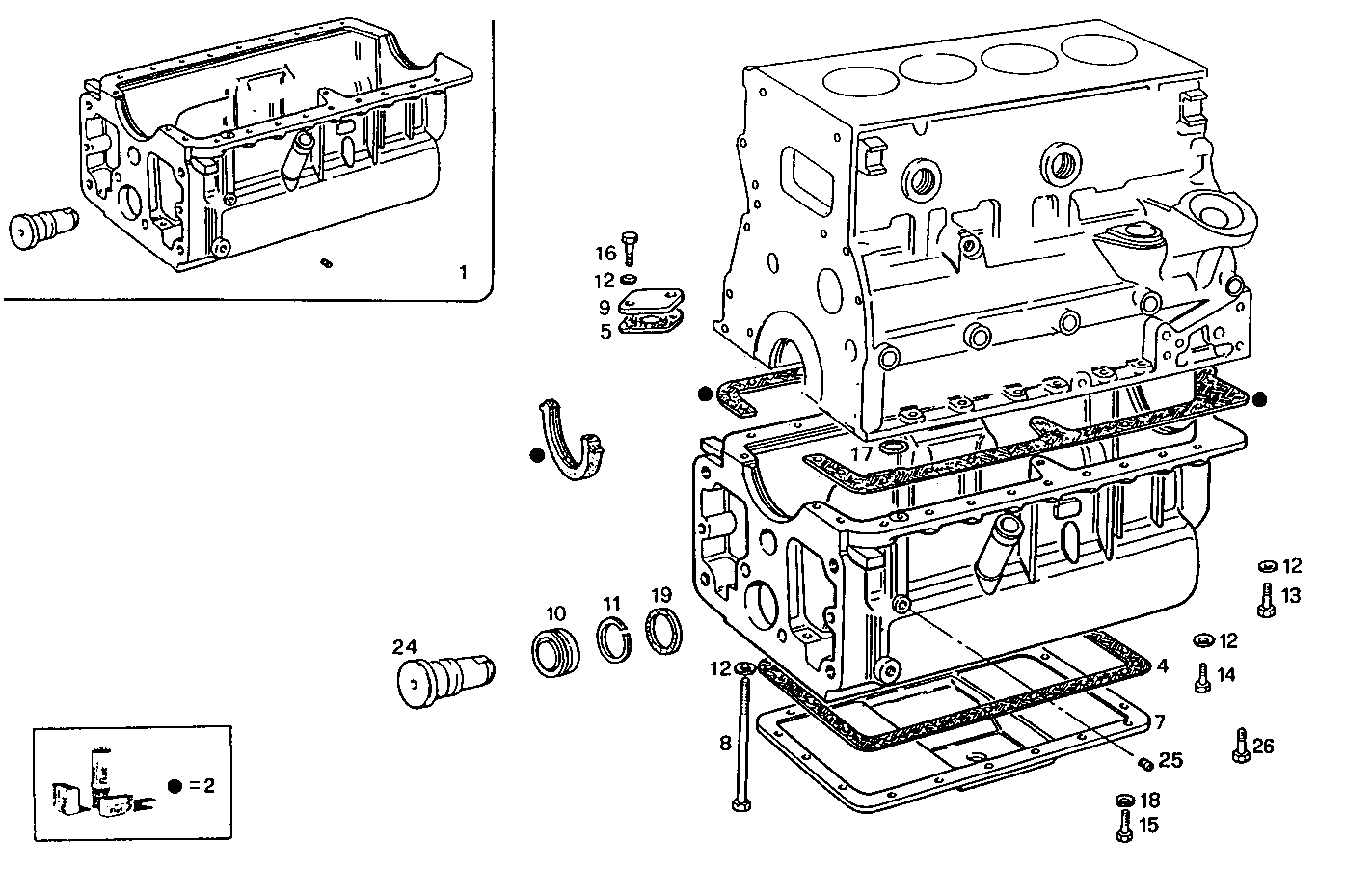

0420.133 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4835973 | OIL SUMP ASSY |
| 2 | 1940012 | KIT-OILSUMP GASKET |
| 4 | 98427452 | FLAT ENGINE GASKET |
| 5 | 98401047 | GASKET |
| 7 | 98413424 | COVER |
| 8 | 4607933 | SCREW M10X1,25X262 MM |
| 9 | 4793218 | COVER |
| 10 | 4812554 | PLUG |
| 11 | 16874476 | CIRCLIP Ø72,5X2,5 MM |
| 12 | 10516879 | WASHER Ø10X18X2 MM |
| 13 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
| 14 | 11307024 | SCREW M10X1,25X40 MM |
| 15 | 16043324 | HEXAGON BOLT M8X18 MM |
| 16 | 16605524 | HEXAGON BOLT M8X20 MM |
| 17 | 17281481 | O-RING Ø10,7 MM SP=2,6 MM |
| 18 | 17089574 | WASHER Ø8X16 MM |
| 19 | 14464881 | WASHER |
| 24 | 4812930 | PIN |
| 25 | 99434231 | THREADED PLUG M10X1,25 |
| 26 | 4686762 | HEXAGON BOLT M10X1,25X30 |
