GE8045M08.20A60S

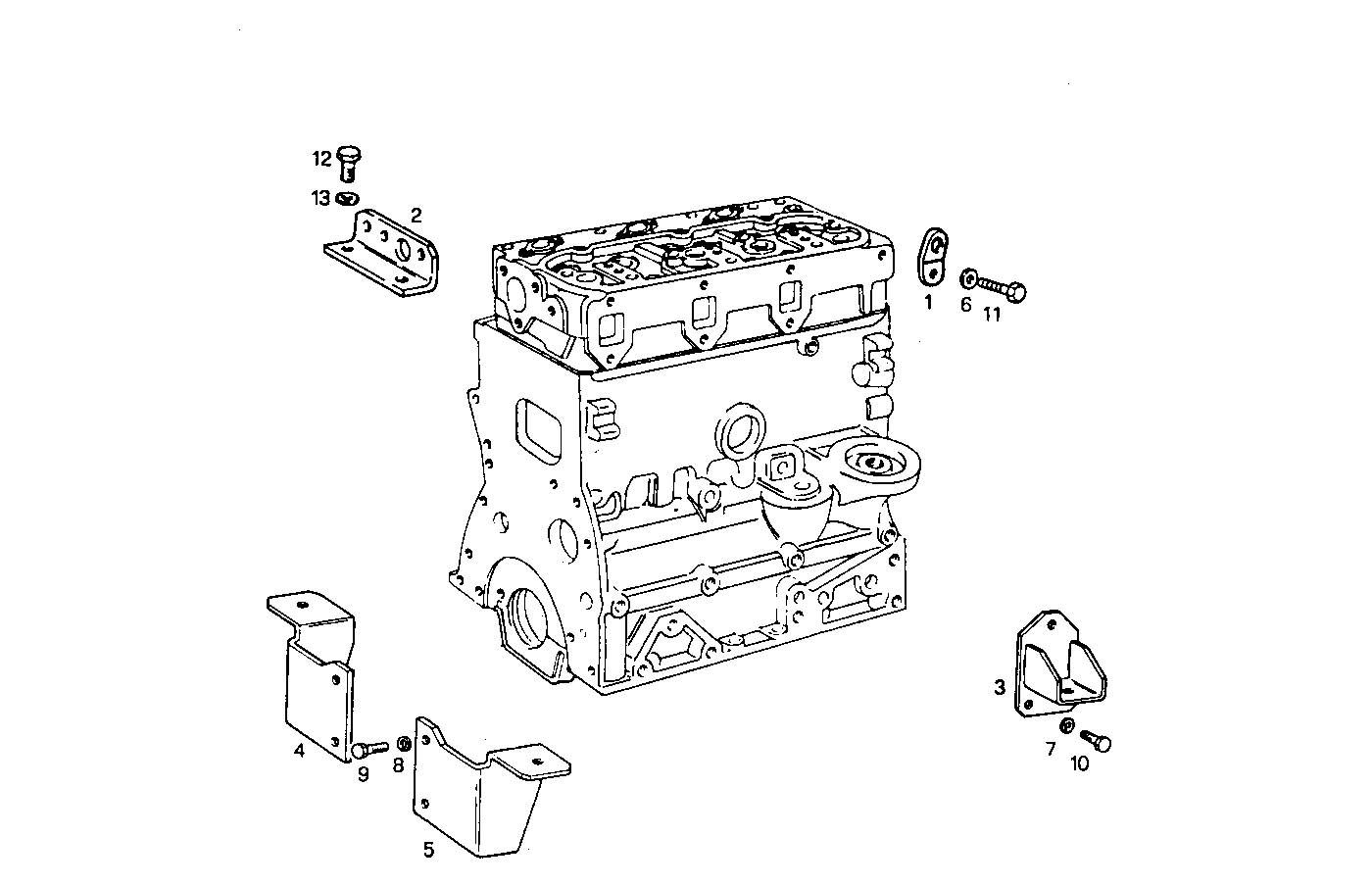

4500.046 ENGINE SUSPENSION
Item | Part number | Description |
---|---|---|
1 | 98739780 | HOOK REAR - LEFT |
2 | 4746561 | HOOK FRONT |
3 | 4928444 | ENGINE SUSPENSION REAR |
4 | 8106383 | ENGINE SUSPENSION RIGHT |
5 | 8106384 | ENGINE SUSPENSION LEFT |
6 | 17090174 | SPRING WASHER Ø10X20 MM |
7 | 17092174 | SPRING WASHER Ø16X32X3,4 |
9 | 11376221 | HEXAGON BOLT M16X1,5X35 MM |
10 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
11 | 15970521 | HEXAGON BOLT M10X20 MM |
12 | 16043224 | SCREW M8X16 MM |
13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
