GE8045M08.20A60S

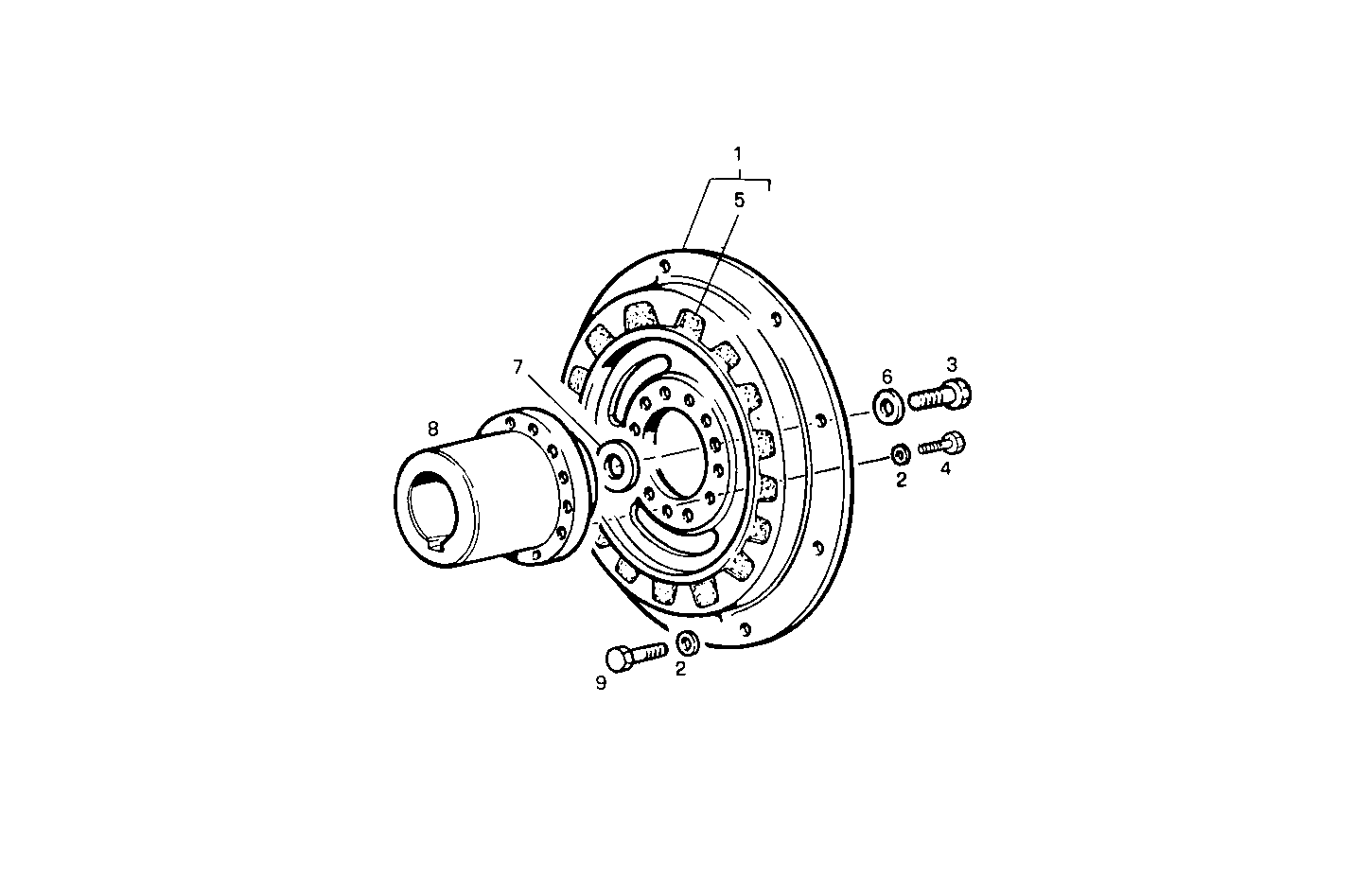

A37030013/02 DOUBLE BEARING ELECTRIC MACHINE - STAMFORD
Item | Part number | Description |
---|---|---|
1 | 4934198 | COUPLER |
2 | 11198371 | SPRING WASHER Ø10X20 MM |
3 | 11124421 | SCREW |
4 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
5 | 4932462 | DOWEL |
6 | 11191771 | WASHER |
7 | 8103400 | SPACING BAR |
8 | 8103659 | HUB |
9 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
