GE8061i06.05A905

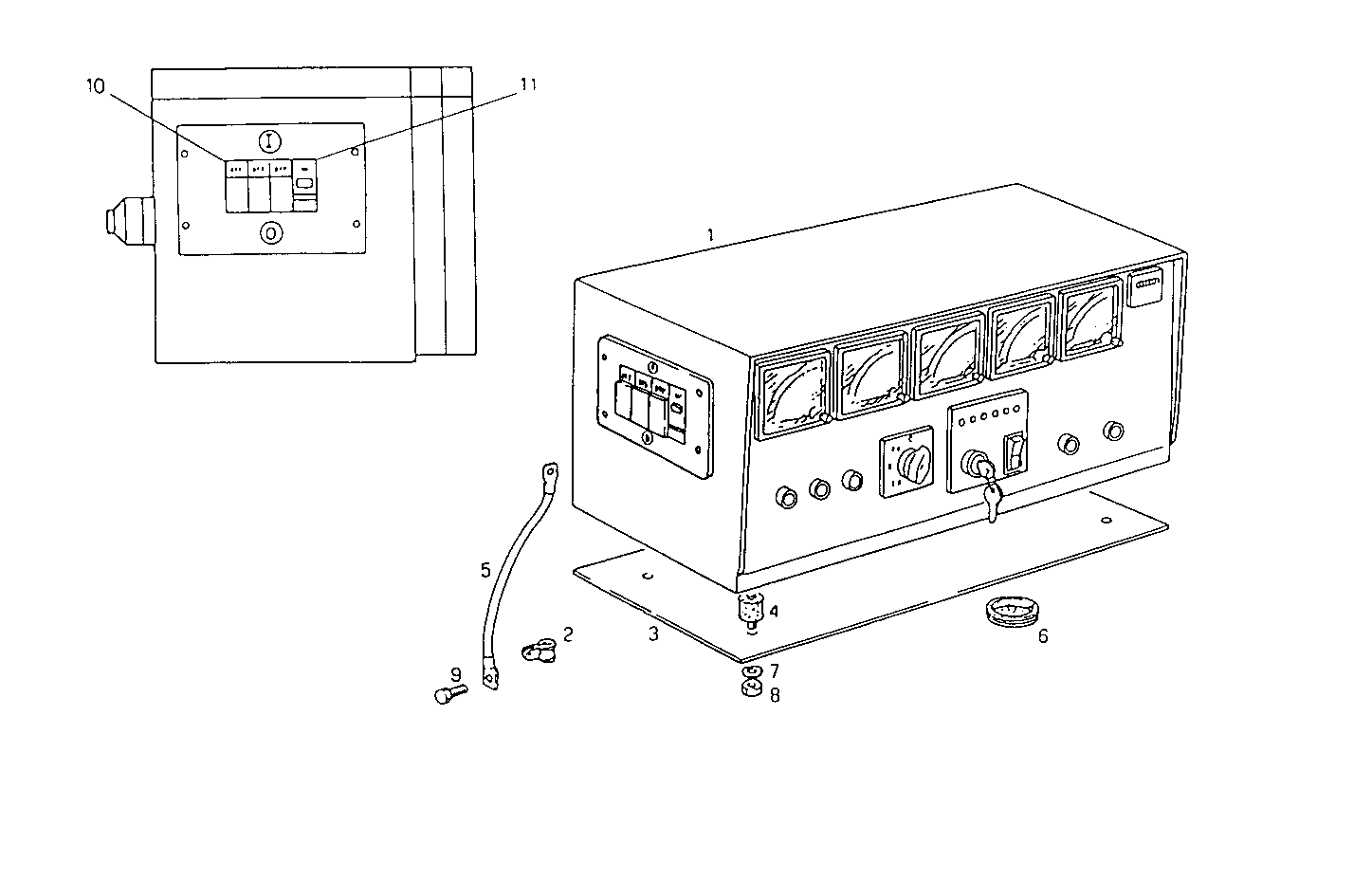

A60140031 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MECC-ALTE
Item | Part number | Description |
---|---|---|
1 | 8021468 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
2 | 17314990 | FASTENING BRACKET |
3 | 8019125 | COVER |
4 | 8104155 | DOWEL |
5 | 8104707 | WIRE/CABLE |
6 | 8113214 | INSULATING RING |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 17037821 | HEXAGON NUT M6X1 |
9 | 16605524 | HEXAGON BOLT M8X20 MM |
10 | 8093329 | SWITCH 100A |
11 | 8093782 | MINIMUN TENSION COIL |
