GE8061i06.05A955

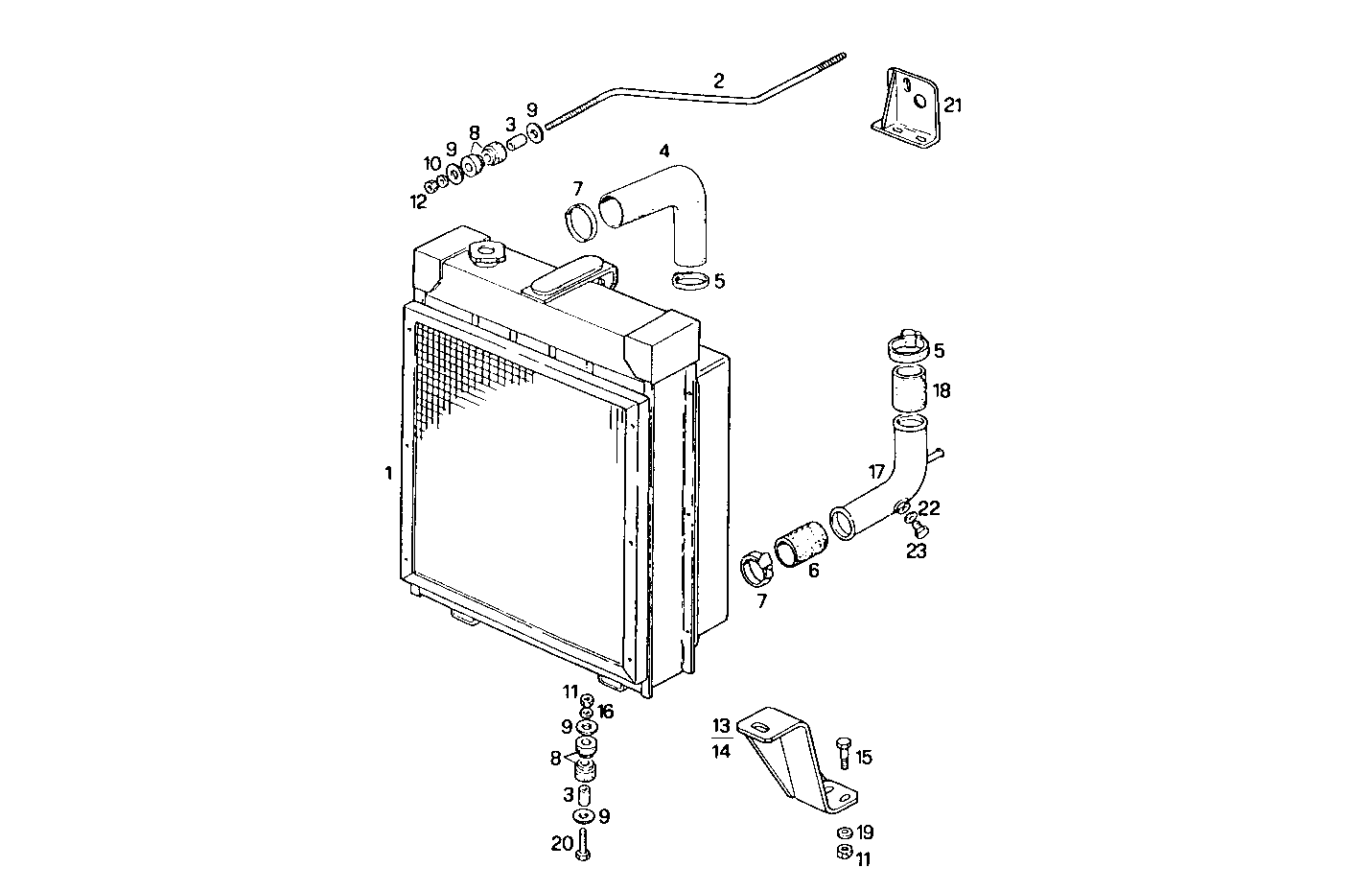

A22460008 OVERSIZE RADIATOR

Iveco/FPT OVERSIZE RADIATOR

Item Part number Description
1 8038540 WATER RADIATOR OPT.
1 8020420 WATER RADIATOR OPT.
2 8024388 TIE ROD
3 8108634 SPACING BAR
4 8024770 RUBBER SLEEVE
5 17764891 CLIP Ø40/60 MM
6 4951318 RUBBER SLEEVE Ø45/50 MM
7 98490783 CLIP Ø55-65 MM
8 741569 RUBBER LUG
9 741570 WASHER Ø10X17 MM SP=2,3
10 17091374 SPRING WASHER Ø12X30X3,0 MM
11 17038121 HEXAGON NUT M10
12 17038421 HEXAGON NUT M12 (8)
13 8024209 SUPPORT LEFT
14 8024201 SUPPORT RIGHT
15 16607824 HEXAGON BOLT M10X35 MM (8.8)
16 17090124 WASHER
17 8024911 WATER PIPE
18 4927830 RUBBER SLEEVE
19 17090174 SPRING WASHER Ø10X20 MM
20 16608524 HEXAGON BOLT M10X1,5X70 MM (8.8)
21 8020521 RETAINER
22 4858608 SEAL GASKET dia.14x19,5x1,5
23 16992111 THREADED PLUG M10X1
