GE8061i06.05A955

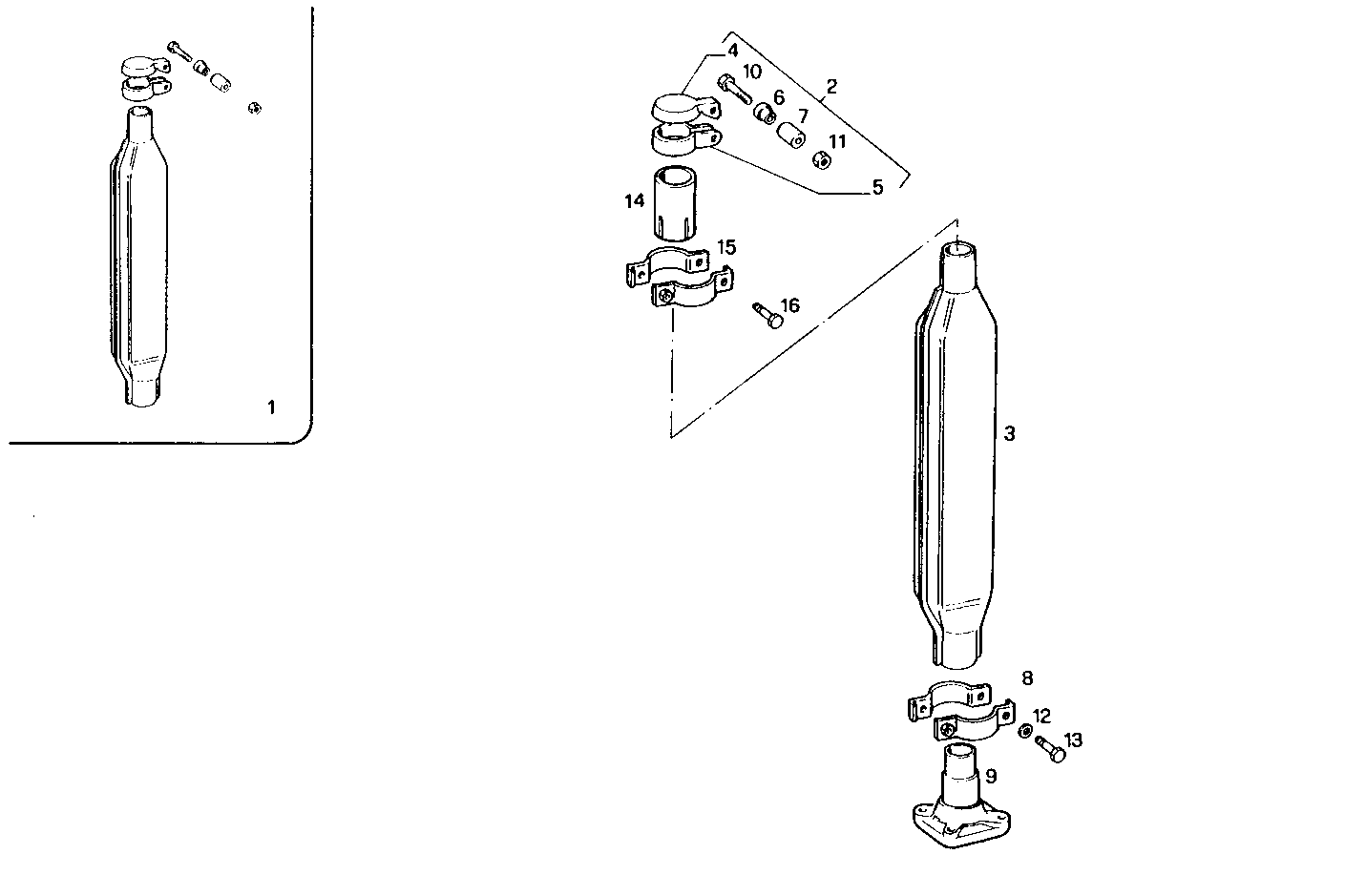

A23010008 VERTICAL SILENCER
Item | Part number | Description |
---|---|---|
1 | 8014873 | SILENCER ASSY |
2 | 5140885 | COVER ASSY |
3 | 5152184 | SILENCER |
4 | 5134341 | COVER |
5 | 5134340 | CLIP |
6 | 5134344 | BUSH |
7 | 5134343 | SPACING BAR |
8 | 5116800 | CLIP |
9 | 8013169 | INTAKE ELBOW |
10 | 16602424 | SCREW M5X30 MM |
11 | 17156821 | NUT M5X0,8 |
12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
13 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
14 | 8015188 | EXHAUST PIPE |
15 | 5116798 | CLIP ASSY [from 06-93] |
16 | 16605524 | HEXAGON BOLT M8X20 MM |
