GE8061i06.05N920

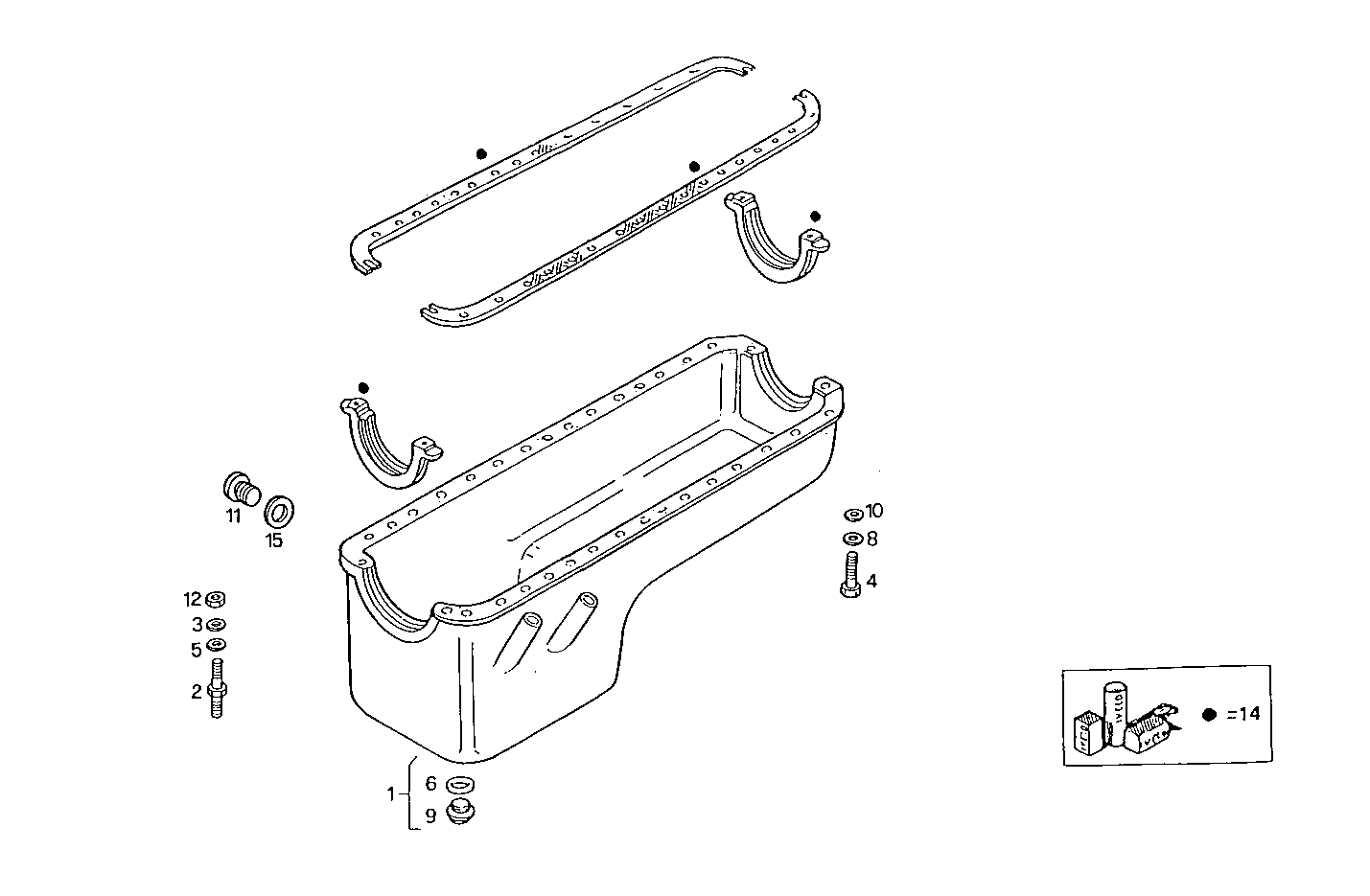

0420.109 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 4819237 | OIL SUMP ASSY |
2 | 98474195 | STUD M10X1,25 - M8X37,5 MM |
3 | 17094914 | WASHER 8x16 |
4 | 10923024 | HEXAGON BOLT M10X1,25X20 MM |
5 | 10516671 | SPRING WASHER Ø8X14,8 SP=2,2 MM |
6 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
8 | 10516879 | WASHER Ø10X18X2 MM |
9 | 4847102 | THREADED PLUG |
10 | 17095014 | WASHER Ø10X18 MM |
11 | 11903211 | LOCK PLUG M12X1,25 |
12 | 17037931 | HEXAGON NUT M8X1,25 |
14 | 1907739 | KIT-OILSUMP GASKET |
15 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
