GE8061i06.05N920

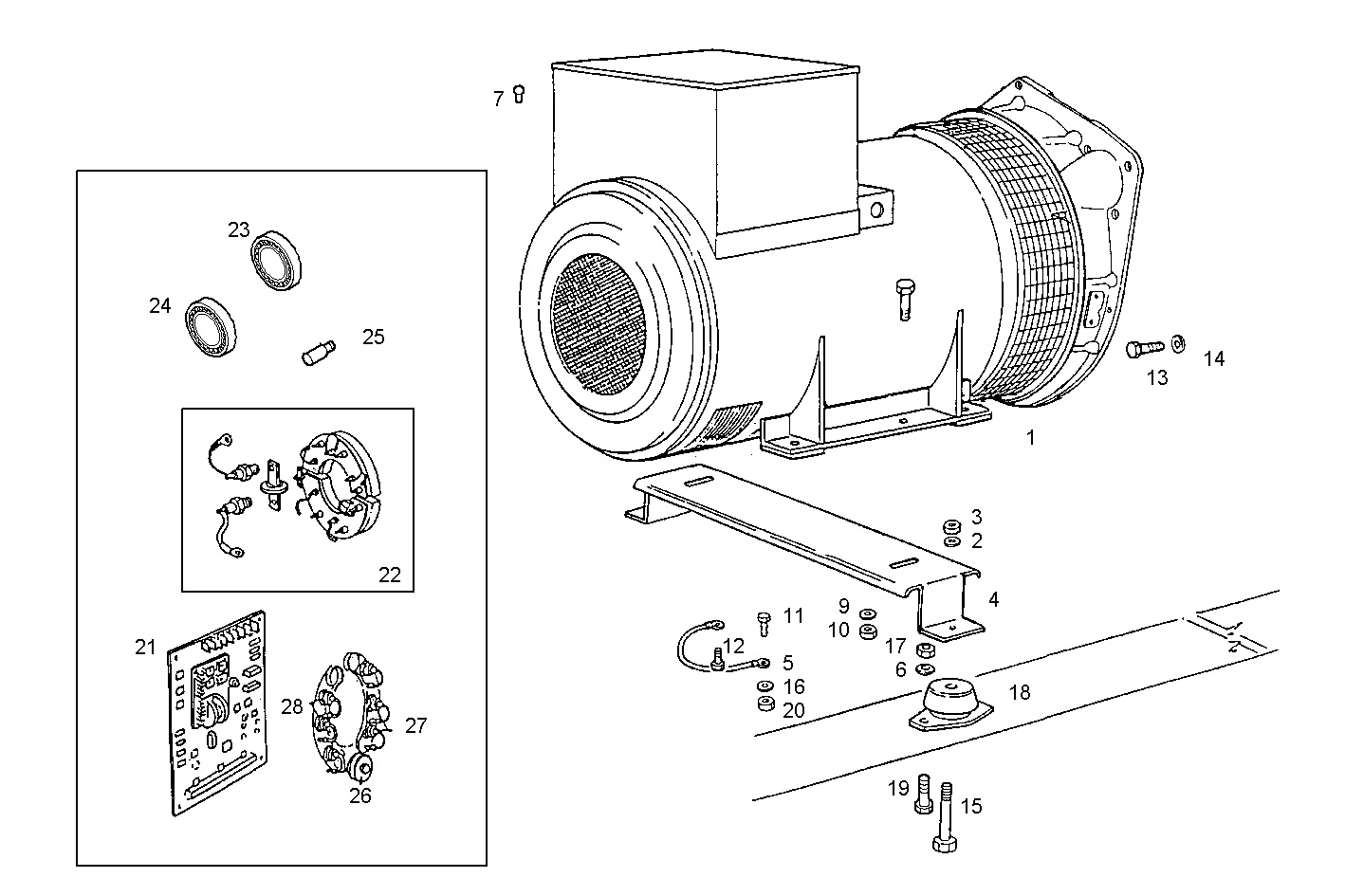

A37210104/1 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 503111516 ELECTRIC MACHINE MJB200
1 8028274 ELECTRIC MACHINE M8B 200 MB/4 50-60HZ
2 17092174 SPRING WASHER Ø16X32X3,4
3 17038931 HEXAGON NUT M16X2
4 503110498 TIE
5 8110852 EARTH WIRE
6 17095104 WASHER Ø10X21X2 MM
7 503110501 SUPPORT
8 16735724 STUD M14X20X55 [from ...]
9 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
10 17038721 NUT M14X2 [from ...]
11 16605424 SCREW M8X16 MM (8.8)
12 16601924 HEXAGON BOLT M5X10 MM
13 15970524 HEXAGON BOLT M10X1,25X20
14 17494934 WASHER Ø10X18,1X2,2 MM
15 16614724 SCREW M16X45
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17038131 HEXAGON NUT M10
18 4911960 RUBBER PAD
19 16605524 HEXAGON BOLT M8X20 MM
20 17037925 HEXAGON NUT M8X1,25
21 8093548 EL.MACHINE VOLTAGE REGUL. MARELLI
22 8093549 KIT-GENERATOR MARELLI
23 8093671 EL.MACHINE BEARING MARELLI
24 8093668 EL.MACHINE BEARING MARELLI
25 8093669 FUSE
26 8093670 SUPPRESSOR MARELLI
27 8106476 EL.MACHINE DIODE MARELLI - FORWARD
28 8106477 EL.MACHINE DIODE MARELLI - REVERSE
