GE8061i06.05R920

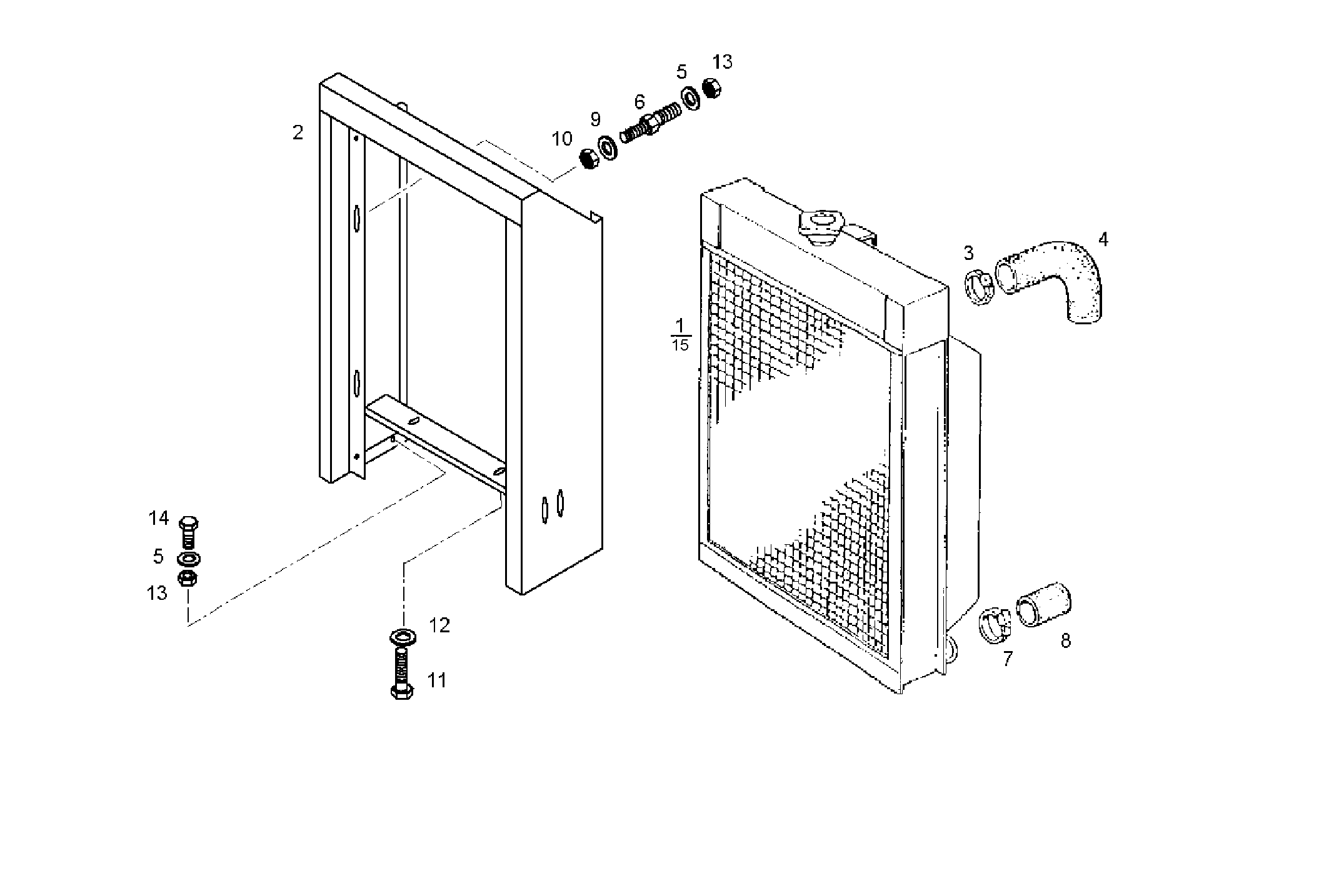

A22010072 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8024731 WATER RADIATOR OPT.
2 8030589 SUPPORT
3 17764991 CLIP Ø50/70 MM
4 8024783 CONNECTOR SLEEVE
5 17088474 WASHER Ø6X12 MM
6 8031777 SPACING BAR M6-M8
7 17764791 CLIP Ø32/50 MM
8 17742887 RUBBER SLEEVE
9 17089574 WASHER Ø8X16 MM
10 17037925 HEXAGON NUT M8X1,25
11 16607434 HEXAGON BOLT M10X16 MM
12 17090474 SPRING WASHER Ø10X27 MM SP=2,5
13 17037821 HEXAGON NUT M6X1
14 16603677 HEXAGON BOLT M6X16 MM
15 8039266 WATER RADIATOR OPT.
