GE8061Si06.05N950

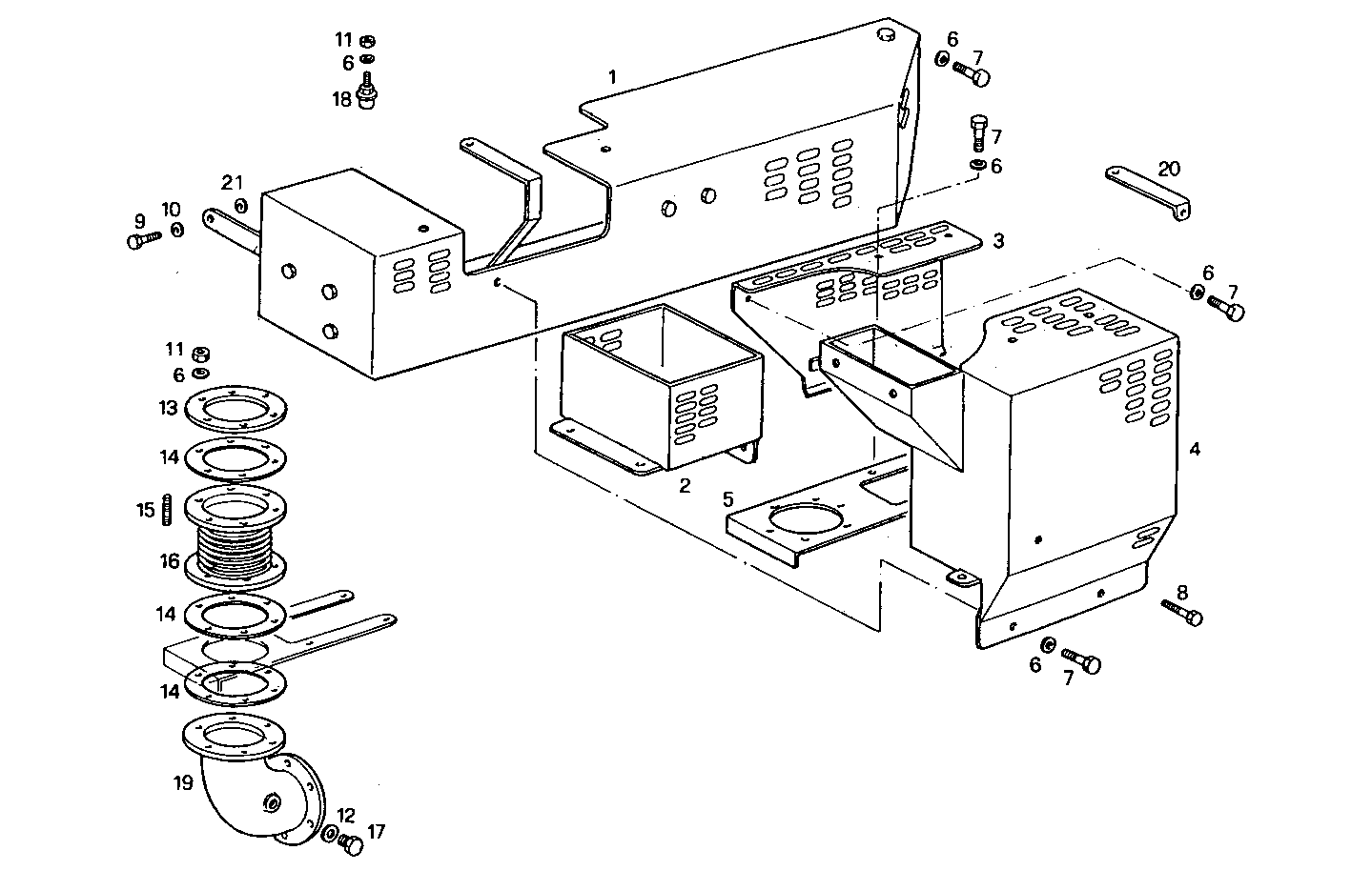

A48040010 GUARD - for exhaust manifold

Iveco/FPT GUARD

Item Part number Description
1 8020535 PROTECTION
2 8020721 PROTECTION
3 8020757 PROTECTION
4 8025417 PROTECTION
5 8020793 SUPPORT
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16605424 SCREW M8X16 MM (8.8)
8 11306921 SCREW M10X1,25X30
9 15970521 HEXAGON BOLT M10X20 MM
10 17090174 SPRING WASHER Ø10X20 MM
11 17037931 HEXAGON NUT M8X1,25
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 4919183 FLANGE
14 8009606 GASKET
15 16729524 STUD M8X1,25X30
16 4935378 EXHAUST BELLOWS
17 16992211 THREADED PLUG M12X1,5
18 8009967 NUT
19 8105001 EXHAUST ELBOW
20 8011585 RETAINER
21 16665604 WASHER Ø10X20 MM
