GE8061Si06.05N950

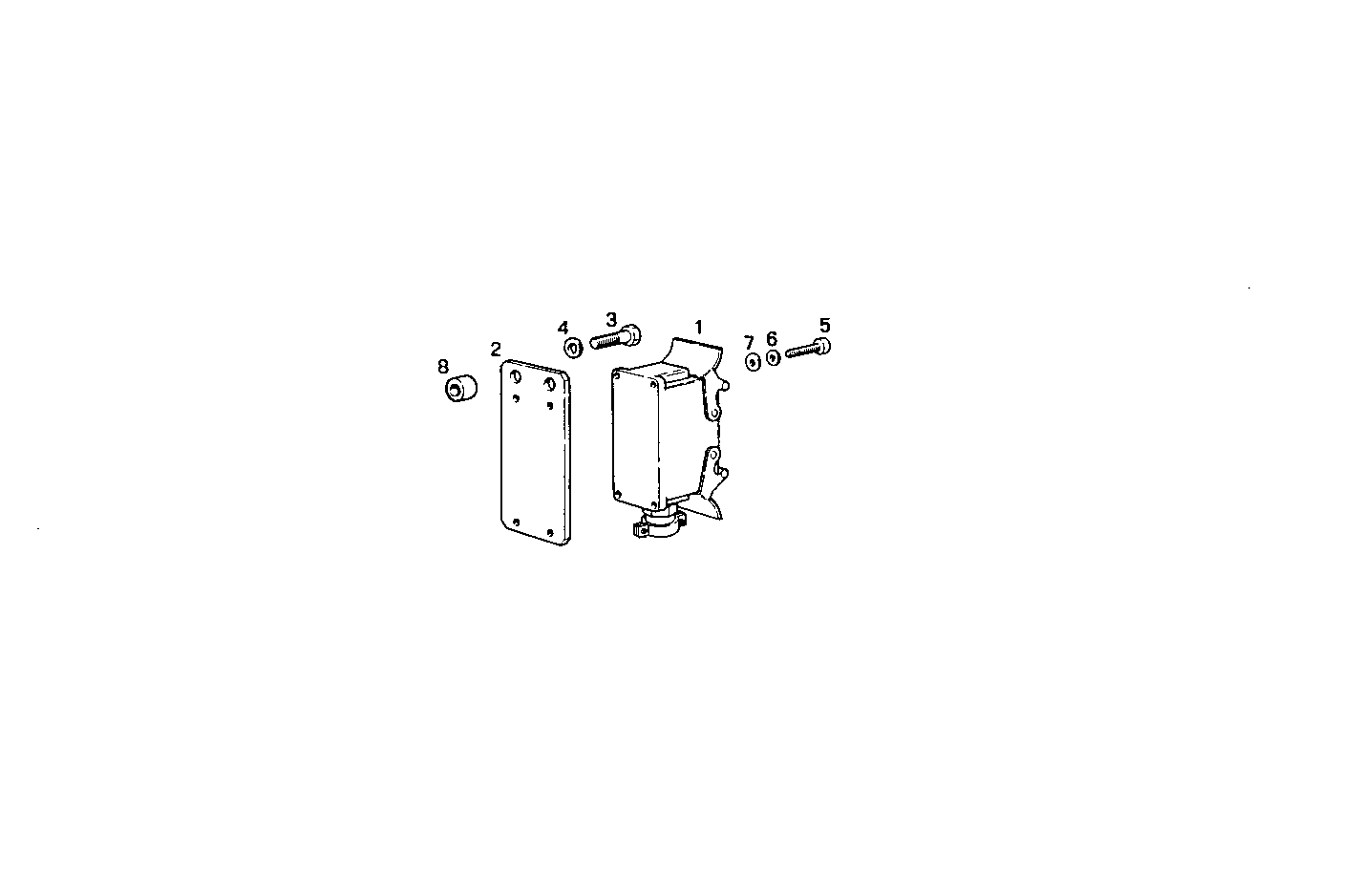

A62080016 23 CONTACTS CONNECTOR - without cable

Iveco/FPT 23 CONTACTS CONNECTOR

Item Part number Description
1 8008929 ENGINE HARNESS
2 8009037 SUPPORT
3 15540524 SCREW M12X1,25X35
4 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
5 10389611 SCREW M5X16
6 17709971 WASHER
7 17094504 WASHER Ø5,3X10 MM
8 8112397 SPACING BAR
