GE8061Si06.05R950

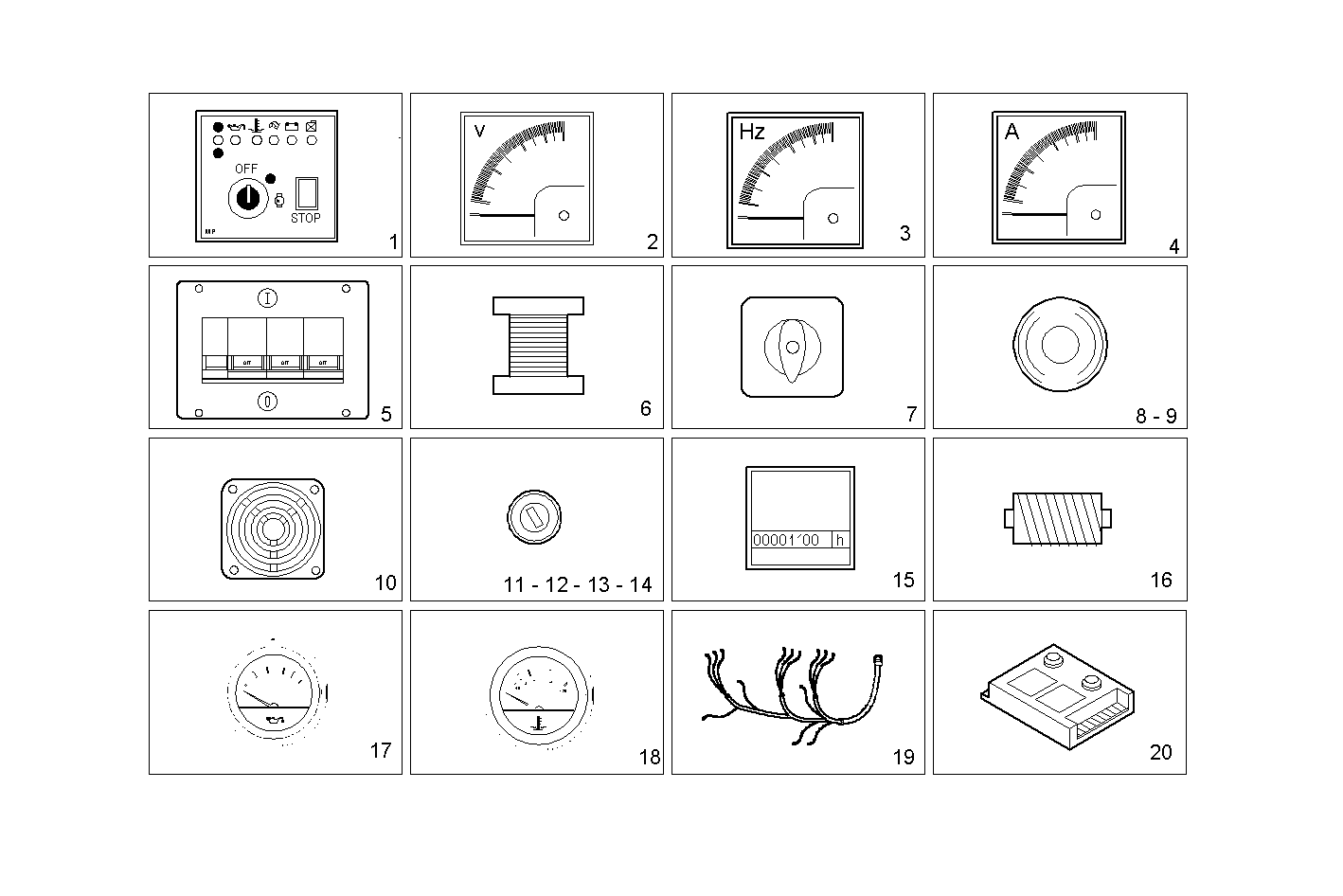

Q0000067 MANUAL CONTROL BOARD FOR ELECT. MACHINE - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8094639 | ELECTRONIC CARD |
| 2 | 8094652 | VOLTMETER |
| 3 | 8094637 | FREQUENCYMETER |
| 4 | 8094642 | AMMETER |
| 5 | 8094607 | THERMOSWITCH |
| 6 | 8094670 | MINIMUN TENSION COIL |
| 7 | 8094635 | SWITCH |
| 8 | 8094644 | PUSH BUTTON |
| 9 | 8094660 | SPRING CONTACT |
| 10 | 8094601 | ACOUSTIC HORN |
| 11 | 8094598 | FUSE BOX |
| 12 | 8094599 | FUSE 2A |
| 13 | 8094636 | FUSE 20A |
| 14 | 8094620 | FUSE 10 A |
| 15 | 8094643 | HOURMETER |
| 16 | 8094600 | AMMETER TRANSFORMATOR |
| 17 | 8094622 | PRESSURE GAUGE |
| 18 | 8094623 | THERMOMETER |
| 19 | 8094690 | ENGINE HARNESS |
| 20 | 8017472 | SPEED CONTROL GAC-HUGLI 12V |
