GE8061Si06.05R970

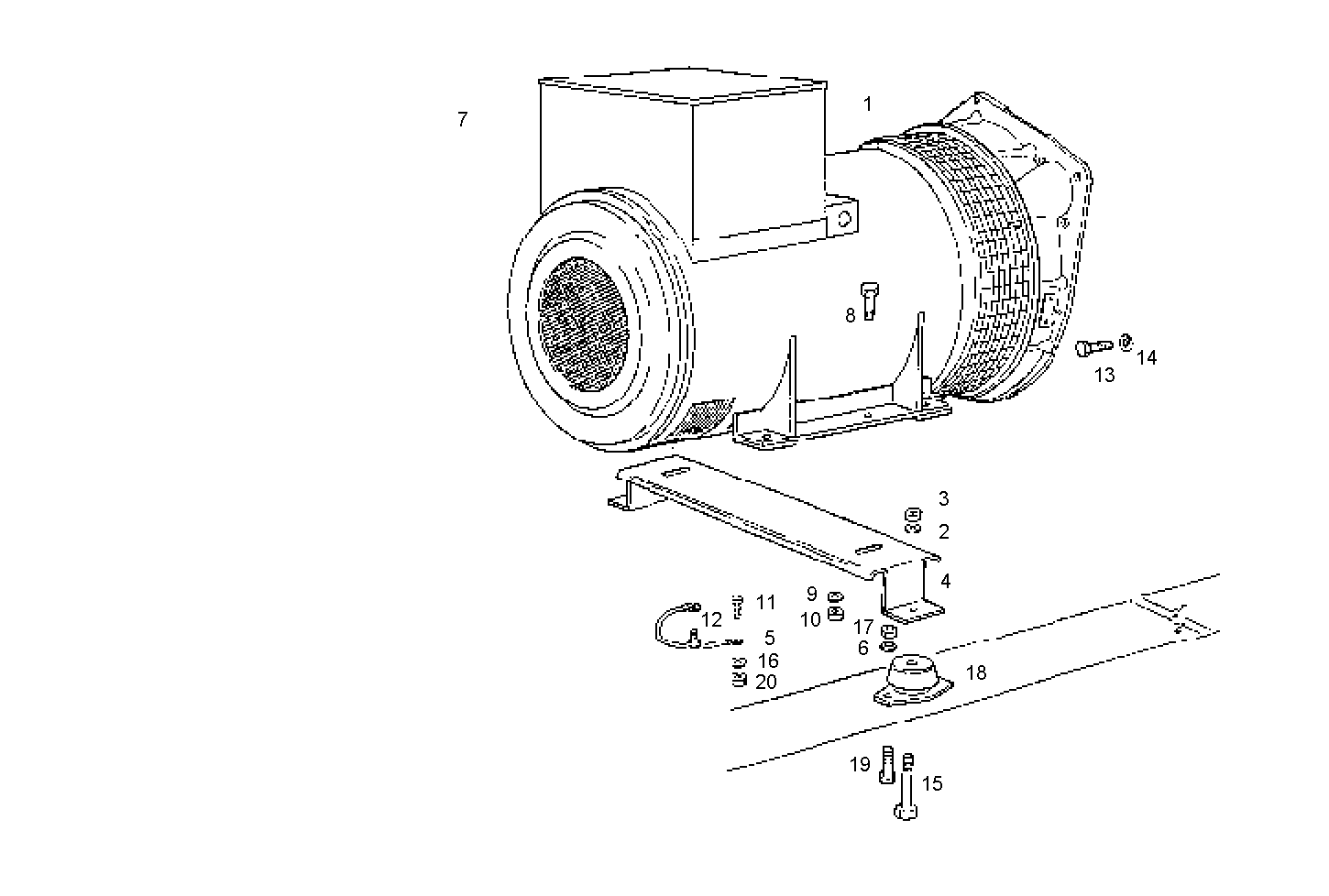

A37210105 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8028275 ELECTRIC MACHINE M8B200
1 503111533 ELECTRIC MACHINE MJB225SB4
2 17092174 SPRING WASHER Ø16X32X3,4
3 17038931 HEXAGON NUT M16X2
4 503110498 TIE
5 8110852 EARTH WIRE
7 503110501 SUPPORT
8 16735724 STUD M14X20X55 [from ...]
9 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
10 17038721 NUT M14X2 [from ...]
11 16605424 SCREW M8X16 MM (8.8)
12 16601924 HEXAGON BOLT M5X10 MM
13 15970524 HEXAGON BOLT M10X1,25X20
14 17494934 WASHER Ø10X18,1X2,2 MM
15 16614724 SCREW M16X45
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17038131 HEXAGON NUT M10
18 4911960 RUBBER PAD
19 16605524 HEXAGON BOLT M8X20 MM
20 17037925 HEXAGON NUT M8X1,25
