GE8061Si07.05A955

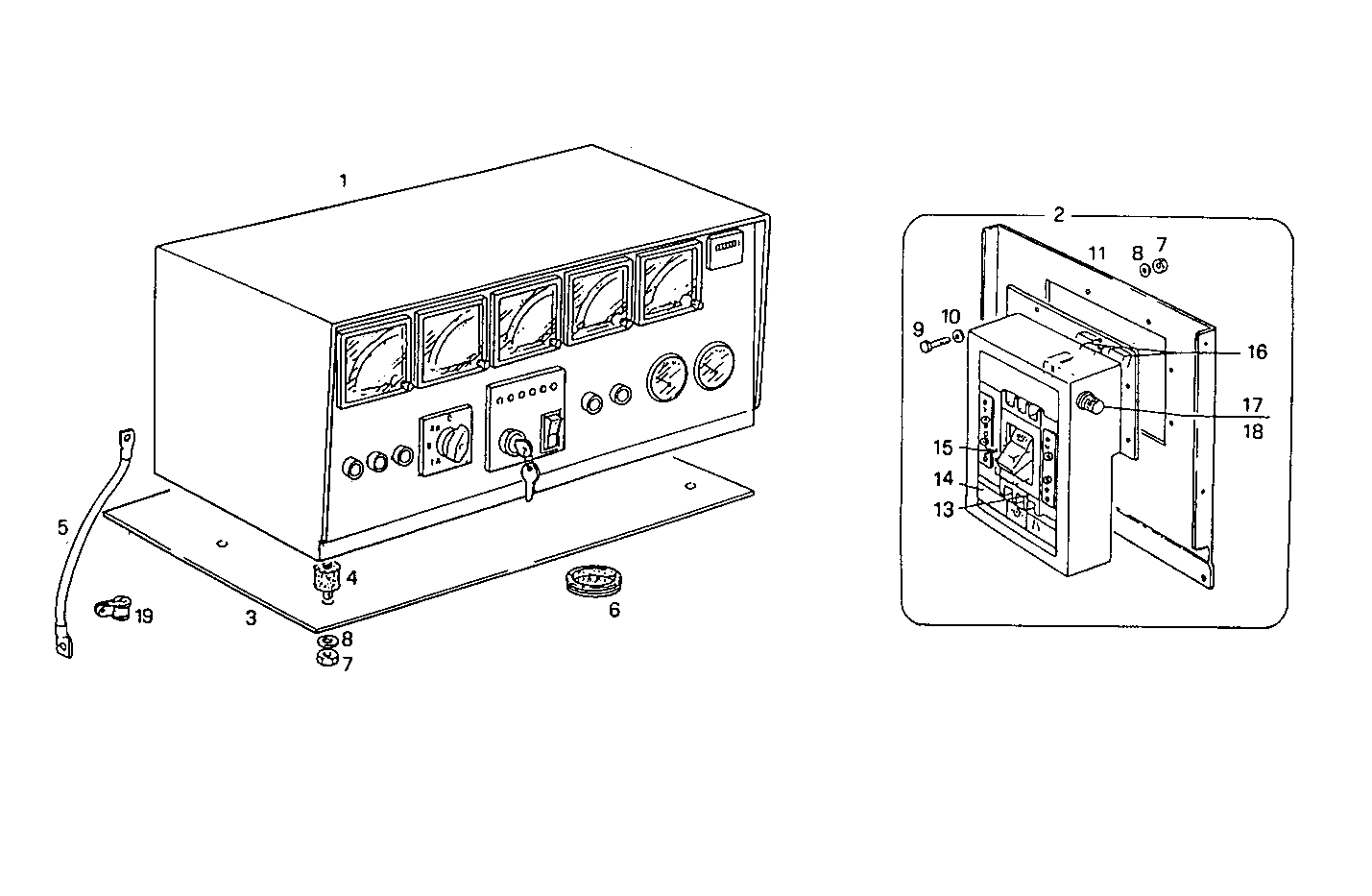

A61340004 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MECC-ALTE (GAC-HUGLI)

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8018945 CONTROL BOARD ASSY 220V/380V 50-60HZ
2 8020589 SWITCH 250A
3 8019189 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 17037821 HEXAGON NUT M6X1
8 17088474 WASHER Ø6X12 MM
9 16603524 SCREW M6X12 MM (8.8)
10 17094714 WASHER Ø6,4X12 MM
11 8021317 COVER
13 8021331 SWITCH
14 8021329 SWITCH
15 8021328 MINIMUN TENSION COIL
16 8090286 TRANSFORMATOR
17 8105267 FUSE BOX 2A
18 8105216 FUSE 10A
19 17314890 CLIP
